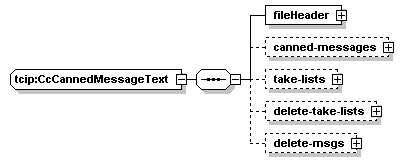

complexType tcip:CcCannedMessageText
diagram
namespace http://www.TCIP-Adopted-03-00-01
children fileHeader canned-messages take-lists delete-take-lists delete-msgs
used by
element tcip:ccCannedMessageText
source <xs:complexType name="CcCannedMessageText">
  <xs:sequence>
    <xs:element name="fileHeader" type="CPTLoadFileHeader"/>
    <xs:element name="canned-messages" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="canned-message" type="CCCannedMsgDefinition"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="take-lists" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="take-list" type="CCTakeListDefinition"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="delete-take-lists" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="delete-take-list" type="CCTakeListDefinition"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="delete-msgs" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="delete-msg" type="CC-CannedMsgID"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

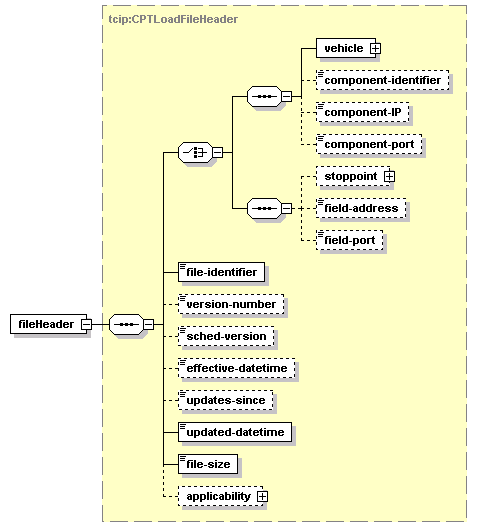

element tcip:CcCannedMessageText/fileHeader
diagram
type tcip:CPTLoadFileHeader
properties
isRef 0
content complex
children vehicle component-identifier component-IP component-port stoppoint field-address field-port file-identifier version-number sched-version effective-datetime updates-since updated-datetime file-size applicability
source <xs:element name="fileHeader" type="CPTLoadFileHeader"/>

element tcip:CcCannedMessageText/canned-messages
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children canned-message
source <xs:element name="canned-messages" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="canned-message" type="CCCannedMsgDefinition"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

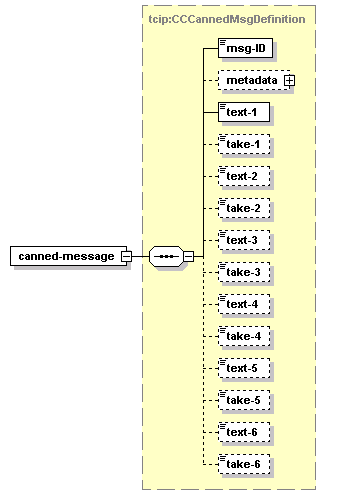

element tcip:CcCannedMessageText/canned-messages/canned-message
diagram
type tcip:CCCannedMsgDefinition
properties
isRef 0
content complex
children msg-ID metadata text-1 take-1 text-2 take-2 text-3 take-3 text-4 take-4 text-5 take-5 text-6 take-6
source <xs:element name="canned-message" type="CCCannedMsgDefinition"/>

element tcip:CcCannedMessageText/take-lists
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children take-list
source <xs:element name="take-lists" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="take-list" type="CCTakeListDefinition"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CcCannedMessageText/take-lists/take-list
diagram
type tcip:CCTakeListDefinition
properties
isRef 0
content complex
children takeListID takeID metadata takeText
source <xs:element name="take-list" type="CCTakeListDefinition"/>

element tcip:CcCannedMessageText/delete-take-lists
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children delete-take-list
source <xs:element name="delete-take-lists" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="delete-take-list" type="CCTakeListDefinition"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

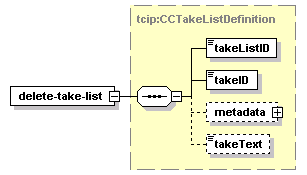

element tcip:CcCannedMessageText/delete-take-lists/delete-take-list
diagram
type tcip:CCTakeListDefinition
properties
isRef 0
content complex
children takeListID takeID metadata takeText
source <xs:element name="delete-take-list" type="CCTakeListDefinition"/>

element tcip:CcCannedMessageText/delete-msgs
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children delete-msg
source <xs:element name="delete-msgs" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="delete-msg" type="CC-CannedMsgID"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CcCannedMessageText/delete-msgs/delete-msg
diagram
type tcip:CC-CannedMsgID
properties
isRef 0
content simple
source <xs:element name="delete-msg" type="CC-CannedMsgID"/>
