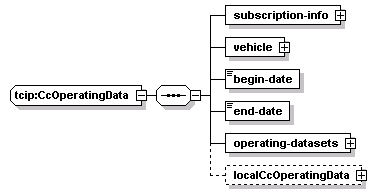

complexType tcip:CcOperatingData
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscription-info vehicle begin-date end-date operating-datasets localCcOperatingData
used by
element tcip:ccOperatingData
source <xs:complexType name="CcOperatingData">
  <xs:sequence>
    <xs:element name="subscription-info" type="CPTSubscriptionHeader"/>
    <xs:element name="vehicle">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="vehicle-item" type="CPTVehicleIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="begin-date" type="CPT-DateTime"/>
    <xs:element name="end-date" type="CPT-DateTime"/>
    <xs:element name="operating-datasets">
      <xs:complexType>
        <xs:sequence maxOccurs="500000">
          <xs:element name="operating-dataset" type="CCOperatingRecord"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localCcOperatingData" type="local:CcOperatingData" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

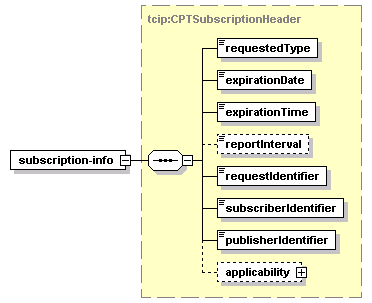

element tcip:CcOperatingData/subscription-info
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscription-info" type="CPTSubscriptionHeader"/>

element tcip:CcOperatingData/vehicle
diagram
properties
isRef 0
content complex
children vehicle-item
source <xs:element name="vehicle">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="vehicle-item" type="CPTVehicleIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CcOperatingData/vehicle/vehicle-item
diagram
type tcip:CPTVehicleIden
properties
isRef 0
content complex
children vehicle-id agency-id vin
source <xs:element name="vehicle-item" type="CPTVehicleIden"/>

element tcip:CcOperatingData/begin-date
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="begin-date" type="CPT-DateTime"/>

element tcip:CcOperatingData/end-date
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="end-date" type="CPT-DateTime"/>

element tcip:CcOperatingData/operating-datasets
diagram
properties
isRef 0
content complex
children operating-dataset
source <xs:element name="operating-datasets">
  <xs:complexType>
    <xs:sequence maxOccurs="500000">
      <xs:element name="operating-dataset" type="CCOperatingRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

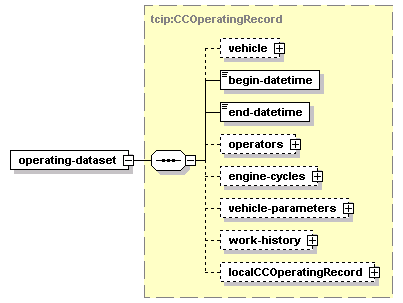

element tcip:CcOperatingData/operating-datasets/operating-dataset
diagram
type tcip:CCOperatingRecord
properties
isRef 0
content complex
children vehicle begin-datetime end-datetime operators engine-cycles vehicle-parameters work-history localCCOperatingRecord
source <xs:element name="operating-dataset" type="CCOperatingRecord"/>

element tcip:CcOperatingData/localCcOperatingData
diagram
type CcOperatingData
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localCcOperatingData" type="local:CcOperatingData" minOccurs="0"/>
