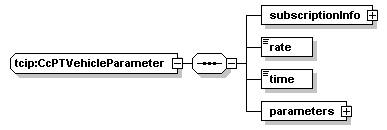

complexType tcip:CcPTVehicleParameter
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionInfo rate time parameters
used by
element tcip:ccPTVehicleParameter
source <xs:complexType name="CcPTVehicleParameter">
  <xs:sequence>
    <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>
    <xs:element name="rate" type="CPT-Duration"/>
    <xs:element name="time" type="CPT-DateTime"/>
    <xs:element name="parameters">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="parameter" type="OBParameterDumpEntry"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:CcPTVehicleParameter/subscriptionInfo
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:CcPTVehicleParameter/rate
diagram
type tcip:CPT-Duration
properties
isRef 0
content simple
facets
minInclusive -2147483648
maxInclusive 2147483647
source <xs:element name="rate" type="CPT-Duration"/>

element tcip:CcPTVehicleParameter/time
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="time" type="CPT-DateTime"/>

element tcip:CcPTVehicleParameter/parameters
diagram
properties
isRef 0
content complex
children parameter
source <xs:element name="parameters">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="parameter" type="OBParameterDumpEntry"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

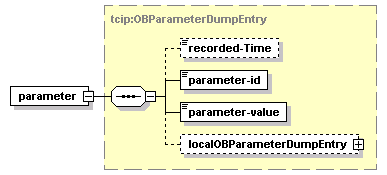

element tcip:CcPTVehicleParameter/parameters/parameter
diagram
type tcip:OBParameterDumpEntry
properties
isRef 0
content complex
children recorded-Time parameter-id parameter-value localOBParameterDumpEntry
source <xs:element name="parameter" type="OBParameterDumpEntry"/>
