complexType tcip:CcReportPullOuts

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	report-employee report-time pull-outs
used by	element  tcip:ccReportPullOuts
source	<xs:complexType name="CcReportPullOuts">   <xs:sequence>     <xs:element name="report-employee" type="CPTEmployeeIden"/>     <xs:element name="report-time" type="CPT-DateTime"/>     <xs:element name="pull-outs">       <xs:complexType>         <xs:sequence maxOccurs="100">           <xs:element name="pull-out" type="CCPullOutReport"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

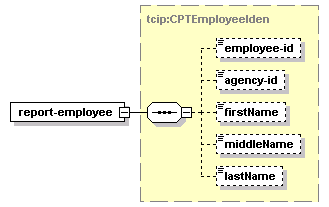

element tcip:CcReportPullOuts/report-employee

diagram
type	tcip:CPTEmployeeIden
properties	isRef  0 content  complex
children	employee-id agency-id firstName middleName lastName
source	<xs:element name="report-employee" type="CPTEmployeeIden"/>

element tcip:CcReportPullOuts/report-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="report-time" type="CPT-DateTime"/>

element tcip:CcReportPullOuts/pull-outs

diagram
properties	isRef  0 content  complex
children	pull-out
source	<xs:element name="pull-outs">   <xs:complexType>     <xs:sequence maxOccurs="100">       <xs:element name="pull-out" type="CCPullOutReport"/>     </xs:sequence>   </xs:complexType> </xs:element>

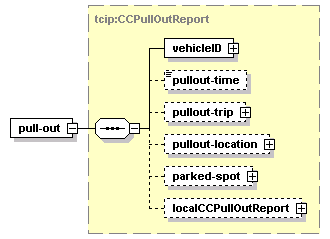

element tcip:CcReportPullOuts/pull-outs/pull-out

diagram
type	tcip:CCPullOutReport
properties	isRef  0 content  complex
children	vehicleID pullout-time pullout-trip pullout-location parked-spot localCCPullOutReport
source	<xs:element name="pull-out" type="CCPullOutReport"/>
