complexType tcip:CcTravelerRequestLogPush
diagram
namespace http://www.TCIP-Adopted-03-00-01
children header conn-prot-entries wheelchair-entries
used by
element tcip:ccTravelerRequestLogPush
source <xs:complexType name="CcTravelerRequestLogPush">
  <xs:sequence>
    <xs:element name="header" type="CPTPushHeader"/>
    <xs:element name="conn-prot-entries" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="30000">
          <xs:element name="conn-prot-entry" type="CCConnProtLogEntry"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="wheelchair-entries" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="10000">
          <xs:element name="wheelchair-entry" type="CCWheelchairLogEntry"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

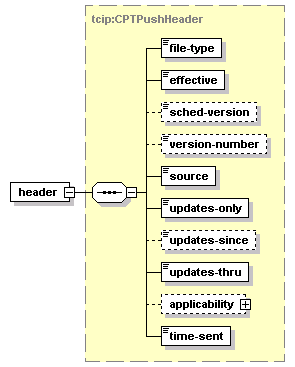

element tcip:CcTravelerRequestLogPush/header
diagram
type tcip:CPTPushHeader
properties
isRef 0
content complex
children file-type effective sched-version version-number source updates-only updates-since updates-thru applicability time-sent
source <xs:element name="header" type="CPTPushHeader"/>

element tcip:CcTravelerRequestLogPush/conn-prot-entries
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children conn-prot-entry
source <xs:element name="conn-prot-entries" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="30000">
      <xs:element name="conn-prot-entry" type="CCConnProtLogEntry"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

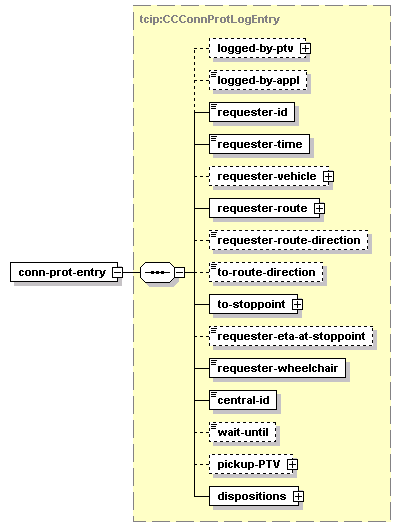

element tcip:CcTravelerRequestLogPush/conn-prot-entries/conn-prot-entry
diagram
type tcip:CCConnProtLogEntry
properties
isRef 0
content complex
children logged-by-ptv logged-by-appl requester-id requester-time requester-vehicle requester-route requester-route-direction to-route-direction to-stoppoint requester-eta-at-stoppoint requester-wheelchair central-id wait-until pickup-PTV dispositions
source <xs:element name="conn-prot-entry" type="CCConnProtLogEntry"/>

element tcip:CcTravelerRequestLogPush/wheelchair-entries
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children wheelchair-entry
source <xs:element name="wheelchair-entries" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="10000">
      <xs:element name="wheelchair-entry" type="CCWheelchairLogEntry"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

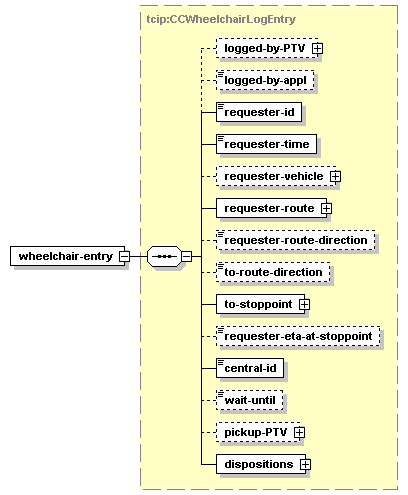

element tcip:CcTravelerRequestLogPush/wheelchair-entries/wheelchair-entry
diagram
type tcip:CCWheelchairLogEntry
properties
isRef 0
content complex
children logged-by-PTV logged-by-appl requester-id requester-time requester-vehicle requester-route requester-route-direction to-route-direction to-stoppoint requester-eta-at-stoppoint central-id wait-until pickup-PTV dispositions
source <xs:element name="wheelchair-entry" type="CCWheelchairLogEntry"/>
