complexType tcip:CcTriggerCannedAnnouncement

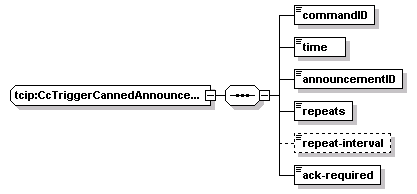

diagram
namespace http://www.TCIP-Adopted-03-00-01
children commandID time announcementID repeats repeat-interval ack-required
used by
element tcip:ccTriggerCannedAnnouncement
source <xs:complexType name="CcTriggerCannedAnnouncement">
  <xs:sequence>
    <xs:element name="commandID" type="CPT-CommandID"/>
    <xs:element name="time" type="CPT-DateTime"/>
    <xs:element name="announcementID" type="CC-AnnouncementMsgID"/>
    <xs:element name="repeats" type="CPT-GenericCounter"/>
    <xs:element name="repeat-interval" type="CPT-Duration" minOccurs="0"/>
    <xs:element name="ack-required" type="CPT-Boolean"/>
  </xs:sequence>
</xs:complexType>

element tcip:CcTriggerCannedAnnouncement/commandID
diagram
type tcip:CPT-CommandID
properties
isRef 0
content simple
source <xs:element name="commandID" type="CPT-CommandID"/>

element tcip:CcTriggerCannedAnnouncement/time
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="time" type="CPT-DateTime"/>

element tcip:CcTriggerCannedAnnouncement/announcementID
diagram
type tcip:CC-AnnouncementMsgID
properties
isRef 0
content simple
source <xs:element name="announcementID" type="CC-AnnouncementMsgID"/>

element tcip:CcTriggerCannedAnnouncement/repeats
diagram
type tcip:CPT-GenericCounter
properties
isRef 0
content simple
source <xs:element name="repeats" type="CPT-GenericCounter"/>

element tcip:CcTriggerCannedAnnouncement/repeat-interval
diagram
type tcip:CPT-Duration
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive -2147483648
maxInclusive 2147483647
source <xs:element name="repeat-interval" type="CPT-Duration" minOccurs="0"/>

element tcip:CcTriggerCannedAnnouncement/ack-required
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="ack-required" type="CPT-Boolean"/>
