complexType tcip:CCVideoRecord

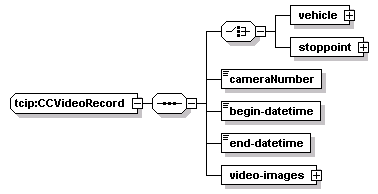

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	vehicle stoppoint cameraNumber begin-datetime end-datetime video-images
used by	elements  tcip:CcUnloadImages/video-datasets/video-dataset tcip:CcVideoImages/video-datasets/video-dataset
source	<xs:complexType name="CCVideoRecord">   <xs:sequence>     <xs:choice>       <xs:element name="vehicle" type="CPTVehicleIden"/>       <xs:element name="stoppoint" type="CPTStoppointIden"/>     </xs:choice>     <xs:element name="cameraNumber" type="CPT-GenericCounter"/>     <xs:element name="begin-datetime" type="CPT-DateTime"/>     <xs:element name="end-datetime" type="CPT-DateTime"/>     <xs:element name="video-images">       <xs:complexType>         <xs:sequence maxOccurs="10000">           <xs:element name="video-image" type="PI-BinaryVideoData"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:CCVideoRecord/vehicle

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="vehicle" type="CPTVehicleIden"/>

element tcip:CCVideoRecord/stoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="stoppoint" type="CPTStoppointIden"/>

element tcip:CCVideoRecord/cameraNumber

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 content  simple
source	<xs:element name="cameraNumber" type="CPT-GenericCounter"/>

element tcip:CCVideoRecord/begin-datetime

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="begin-datetime" type="CPT-DateTime"/>

element tcip:CCVideoRecord/end-datetime

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="end-datetime" type="CPT-DateTime"/>

element tcip:CCVideoRecord/video-images

diagram
properties	isRef  0 content  complex
children	video-image
source	<xs:element name="video-images">   <xs:complexType>     <xs:sequence maxOccurs="10000">       <xs:element name="video-image" type="PI-BinaryVideoData"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:CCVideoRecord/video-images/video-image

diagram
type	tcip:PI-BinaryVideoData
properties	isRef  0 content  simple
facets	maxLength  2000000
source	<xs:element name="video-image" type="PI-BinaryVideoData"/>
