complexType tcip:CcWorkOrderAssignAck

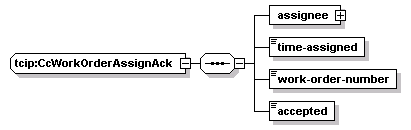

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	assignee time-assigned work-order-number accepted
used by	element  tcip:ccWorkOrderAssignAck
source	<xs:complexType name="CcWorkOrderAssignAck">   <xs:sequence>     <xs:element name="assignee" type="CPTEmployeeIden"/>     <xs:element name="time-assigned" type="CPT-DateTime"/>     <xs:element name="work-order-number" type="CC-WorkorderNumber"/>     <xs:element name="accepted" type="CPT-Boolean"/>   </xs:sequence> </xs:complexType>

element tcip:CcWorkOrderAssignAck/assignee

diagram
type	tcip:CPTEmployeeIden
properties	isRef  0 content  complex
children	employee-id agency-id firstName middleName lastName
source	<xs:element name="assignee" type="CPTEmployeeIden"/>

element tcip:CcWorkOrderAssignAck/time-assigned

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="time-assigned" type="CPT-DateTime"/>

element tcip:CcWorkOrderAssignAck/work-order-number

diagram
type	tcip:CC-WorkorderNumber
properties	isRef  0 content  simple
facets	minLength  1 maxLength  60
source	<xs:element name="work-order-number" type="CC-WorkorderNumber"/>

element tcip:CcWorkOrderAssignAck/accepted

diagram
type	tcip:CPT-Boolean
properties	isRef  0 content  simple
source	<xs:element name="accepted" type="CPT-Boolean"/>
