complexType tcip:CPTAssignedContractor

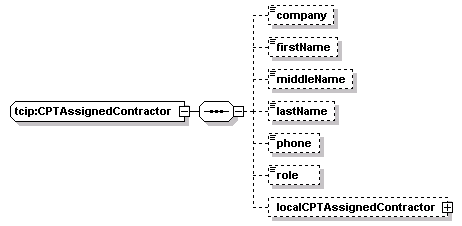

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	company firstName middleName lastName phone role localCPTAssignedContractor
used by	elements  tcip:CCWorkOrder/assigned-contractors/assigned-contractor tcip:CCWOUpdate/contractor-updater
source	<xs:complexType name="CPTAssignedContractor">   <xs:sequence>     <xs:element name="company" type="CPT-CompanyName" minOccurs="0"/>     <xs:element name="firstName" type="CPT-PersonFirstName" minOccurs="0"/>     <xs:element name="middleName" type="CPT-PersonMiddleName" minOccurs="0"/>     <xs:element name="lastName" type="CPT-PersonLastName" minOccurs="0"/>     <xs:element name="phone" type="CPT-EmployeeTelephone" minOccurs="0"/>     <xs:element name="role" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="localCPTAssignedContractor" type="local:CPTAssignedContractor" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CPTAssignedContractor/company

diagram
type	tcip:CPT-CompanyName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  40
source	<xs:element name="company" type="CPT-CompanyName" minOccurs="0"/>

element tcip:CPTAssignedContractor/firstName

diagram
type	tcip:CPT-PersonFirstName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="firstName" type="CPT-PersonFirstName" minOccurs="0"/>

element tcip:CPTAssignedContractor/middleName

diagram
type	tcip:CPT-PersonMiddleName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="middleName" type="CPT-PersonMiddleName" minOccurs="0"/>

element tcip:CPTAssignedContractor/lastName

diagram
type	tcip:CPT-PersonLastName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="lastName" type="CPT-PersonLastName" minOccurs="0"/>

element tcip:CPTAssignedContractor/phone

diagram
type	tcip:CPT-EmployeeTelephone
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  16
source	<xs:element name="phone" type="CPT-EmployeeTelephone" minOccurs="0"/>

element tcip:CPTAssignedContractor/role

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="role" type="CPT-Footnote" minOccurs="0"/>

element tcip:CPTAssignedContractor/localCPTAssignedContractor

diagram
type	CPTAssignedContractor
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localCPTAssignedContractor" type="local:CPTAssignedContractor" minOccurs="0"/>
