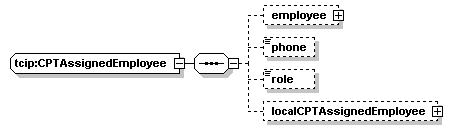

complexType tcip:CPTAssignedEmployee

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	employee phone role localCPTAssignedEmployee
used by	elements  tcip:CCWorkOrder/assigned-employees/assigned-employee tcip:CCWorkOrder/assigned-supervisor tcip:CCWOUpdate/employee-updater
source	<xs:complexType name="CPTAssignedEmployee">   <xs:sequence>     <xs:element name="employee" type="CPTEmployeeIden" minOccurs="0"/>     <xs:element name="phone" type="CPT-EmployeeTelephone" minOccurs="0"/>     <xs:element name="role" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="localCPTAssignedEmployee" type="local:CPTAssignedEmployee" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CPTAssignedEmployee/employee

diagram
type	tcip:CPTEmployeeIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	employee-id agency-id firstName middleName lastName
source	<xs:element name="employee" type="CPTEmployeeIden" minOccurs="0"/>

element tcip:CPTAssignedEmployee/phone

diagram
type	tcip:CPT-EmployeeTelephone
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  16
source	<xs:element name="phone" type="CPT-EmployeeTelephone" minOccurs="0"/>

element tcip:CPTAssignedEmployee/role

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="role" type="CPT-Footnote" minOccurs="0"/>

element tcip:CPTAssignedEmployee/localCPTAssignedEmployee

diagram
type	CPTAssignedEmployee
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localCPTAssignedEmployee" type="local:CPTAssignedEmployee" minOccurs="0"/>
