complexType tcip:CptForceLoad

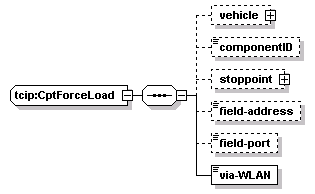

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	vehicle componentID stoppoint field-address field-port via-WLAN
used by	element  tcip:cptForceLoad
source	<xs:complexType name="CptForceLoad">   <xs:sequence>     <xs:element name="vehicle" type="CPTVehicleIden" minOccurs="0"/>     <xs:element name="componentID" type="OB-MID" minOccurs="0"/>     <xs:element name="stoppoint" type="CPTStoppointIden" minOccurs="0"/>     <xs:element name="field-address" type="CPT-IP-Address" minOccurs="0"/>     <xs:element name="field-port" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>     <xs:element name="via-WLAN" type="CPT-Boolean"/>   </xs:sequence> </xs:complexType>

element tcip:CptForceLoad/vehicle

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="vehicle" type="CPTVehicleIden" minOccurs="0"/>

element tcip:CptForceLoad/componentID

diagram
type	tcip:OB-MID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="componentID" type="OB-MID" minOccurs="0"/>

element tcip:CptForceLoad/stoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="stoppoint" type="CPTStoppointIden" minOccurs="0"/>

element tcip:CptForceLoad/field-address

diagram
type	tcip:CPT-IP-Address
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="field-address" type="CPT-IP-Address" minOccurs="0"/>

element tcip:CptForceLoad/field-port

diagram
type	tcip:CPT-UDP-TCP-PortNumber
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="field-port" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>

element tcip:CptForceLoad/via-WLAN

diagram
type	tcip:CPT-Boolean
properties	isRef  0 content  simple
source	<xs:element name="via-WLAN" type="CPT-Boolean"/>
