complexType tcip:CptOnboardVersionNotice

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	files-on-hand
used by	element  tcip:cptOnboardVersionNotice
source	<xs:complexType name="CptOnboardVersionNotice">   <xs:sequence>     <xs:element name="files-on-hand">       <xs:complexType>         <xs:sequence maxOccurs="100">           <xs:element name="files-on-hand-item" type="CPTLoadFileHeader"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:CptOnboardVersionNotice/files-on-hand

diagram
properties	isRef  0 content  complex
children	files-on-hand-item
source	<xs:element name="files-on-hand">   <xs:complexType>     <xs:sequence maxOccurs="100">       <xs:element name="files-on-hand-item" type="CPTLoadFileHeader"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:CptOnboardVersionNotice/files-on-hand/files-on-hand-item

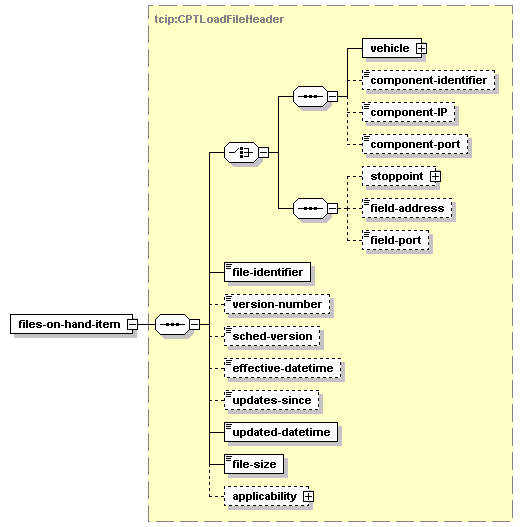

diagram
type	tcip:CPTLoadFileHeader
properties	isRef  0 content  complex
children	vehicle component-identifier component-IP component-port stoppoint field-address field-port file-identifier version-number sched-version effective-datetime updates-since updated-datetime file-size applicability
source	<xs:element name="files-on-hand-item" type="CPTLoadFileHeader"/>
