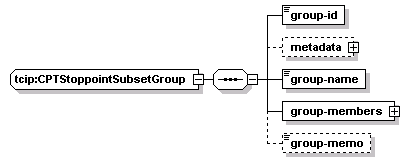

complexType tcip:CPTStoppointSubsetGroup

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	group-id metadata group-name group-members group-memo
used by	element  tcip:CptStoppointSubsets/defined-groups/defined-group
source	<xs:complexType name="CPTStoppointSubsetGroup">   <xs:sequence>     <xs:element name="group-id" type="CPT-StoppointSubset"/>     <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>     <xs:element name="group-name" type="CPT-GroupName"/>     <xs:element name="group-members">       <xs:complexType>         <xs:sequence maxOccurs="100000">           <xs:element name="group-member" type="CPTStoppointIden"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="group-memo" type="CPT-Footnote" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CPTStoppointSubsetGroup/group-id

diagram
type	tcip:CPT-StoppointSubset
properties	isRef  0 content  simple
source	<xs:element name="group-id" type="CPT-StoppointSubset"/>

element tcip:CPTStoppointSubsetGroup/metadata

diagram
type	tcip:CPTRowMetaData
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	created effective expiration activation deactivation updated
source	<xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>

element tcip:CPTStoppointSubsetGroup/group-name

diagram
type	tcip:CPT-GroupName
properties	isRef  0 content  simple
facets	minLength  1 maxLength  40
source	<xs:element name="group-name" type="CPT-GroupName"/>

element tcip:CPTStoppointSubsetGroup/group-members

diagram
properties	isRef  0 content  complex
children	group-member
source	<xs:element name="group-members">   <xs:complexType>     <xs:sequence maxOccurs="100000">       <xs:element name="group-member" type="CPTStoppointIden"/>     </xs:sequence>   </xs:complexType> </xs:element>

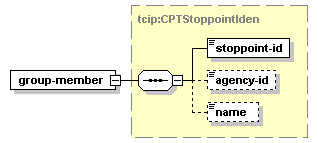

element tcip:CPTStoppointSubsetGroup/group-members/group-member

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="group-member" type="CPTStoppointIden"/>

element tcip:CPTStoppointSubsetGroup/group-memo

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="group-memo" type="CPT-Footnote" minOccurs="0"/>
