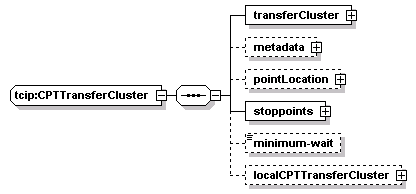

complexType tcip:CPTTransferCluster
diagram
namespace http://www.TCIP-Adopted-03-00-01
children transferCluster metadata pointLocation stoppoints minimum-wait localCPTTransferCluster
used by
element tcip:CptTransferClusterList/clusters/cluster
source <xs:complexType name="CPTTransferCluster">
  <xs:sequence>
    <xs:element name="transferCluster" type="CPTTransferClusterIden"/>
    <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>
    <xs:element name="pointLocation" type="lrms:GeoLocation" minOccurs="0"/>
    <xs:element name="stoppoints">
      <xs:complexType>
        <xs:sequence maxOccurs="50">
          <xs:element name="stoppoint" type="CPTStoppointIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="minimum-wait" type="CPT-Duration" minOccurs="0"/>
    <xs:element name="localCPTTransferCluster" type="local:CPTTransferCluster" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

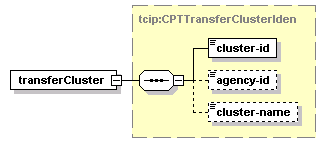

element tcip:CPTTransferCluster/transferCluster
diagram
type tcip:CPTTransferClusterIden
properties
isRef 0
content complex
children cluster-id agency-id cluster-name
source <xs:element name="transferCluster" type="CPTTransferClusterIden"/>

element tcip:CPTTransferCluster/metadata
diagram
type tcip:CPTRowMetaData
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children created effective expiration activation deactivation updated
source <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>

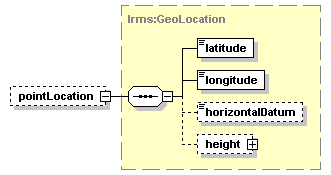

element tcip:CPTTransferCluster/pointLocation
diagram
type lrms:GeoLocation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children latitude longitude horizontalDatum height
source <xs:element name="pointLocation" type="lrms:GeoLocation" minOccurs="0"/>

element tcip:CPTTransferCluster/stoppoints
diagram
properties
isRef 0
content complex
children stoppoint
source <xs:element name="stoppoints">
  <xs:complexType>
    <xs:sequence maxOccurs="50">
      <xs:element name="stoppoint" type="CPTStoppointIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CPTTransferCluster/stoppoints/stoppoint
diagram
type tcip:CPTStoppointIden
properties
isRef 0
content complex
children stoppoint-id agency-id name
source <xs:element name="stoppoint" type="CPTStoppointIden"/>

element tcip:CPTTransferCluster/minimum-wait
diagram
type tcip:CPT-Duration
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive -2147483648
maxInclusive 2147483647
source <xs:element name="minimum-wait" type="CPT-Duration" minOccurs="0"/>

element tcip:CPTTransferCluster/localCPTTransferCluster
diagram
type CPTTransferCluster
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localCPTTransferCluster" type="local:CPTTransferCluster" minOccurs="0"/>
