complexType tcip:CPTTransitFacility

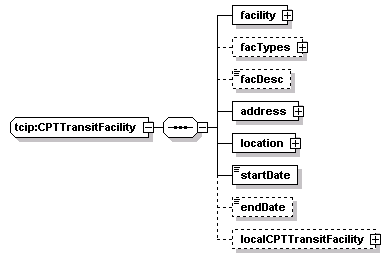

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	facility facTypes facDesc address location startDate endDate localCPTTransitFacility
used by	element  tcip:CptTransitFacilities/facilities/facility
source	<xs:complexType name="CPTTransitFacility">   <xs:sequence>     <xs:element name="facility" type="CPTTransitFacilityIden"/>     <xs:element name="facTypes" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="25">           <xs:element name="facType" type="CPT-TransitFacilityType"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="facDesc" type="CPT-FacilityDesc" minOccurs="0"/>     <xs:element name="address" type="lrms:AddressPoint"/>     <xs:element name="location" type="lrms:GeoLocation"/>     <xs:element name="startDate" type="CPT-Date"/>     <xs:element name="endDate" type="CPT-Date" minOccurs="0"/>     <xs:element name="localCPTTransitFacility" type="local:CPTTransitFacility" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CPTTransitFacility/facility

diagram
type	tcip:CPTTransitFacilityIden
properties	isRef  0 content  complex
children	facility-id agency-id facility-name base-name
source	<xs:element name="facility" type="CPTTransitFacilityIden"/>

element tcip:CPTTransitFacility/facTypes

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	facType
source	<xs:element name="facTypes" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="25">       <xs:element name="facType" type="CPT-TransitFacilityType"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:CPTTransitFacility/facTypes/facType

diagram
type	tcip:CPT-TransitFacilityType
properties	isRef  0 content  simple
source	<xs:element name="facType" type="CPT-TransitFacilityType"/>

element tcip:CPTTransitFacility/facDesc

diagram
type	tcip:CPT-FacilityDesc
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="facDesc" type="CPT-FacilityDesc" minOccurs="0"/>

element tcip:CPTTransitFacility/address

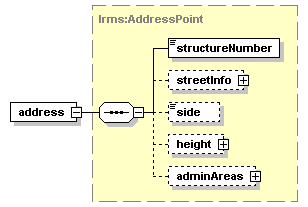

diagram
type	lrms:AddressPoint
properties	isRef  0 content  complex
children	structureNumber streetInfo side height adminAreas
source	<xs:element name="address" type="lrms:AddressPoint"/>

element tcip:CPTTransitFacility/location

diagram
type	lrms:GeoLocation
properties	isRef  0 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="location" type="lrms:GeoLocation"/>

element tcip:CPTTransitFacility/startDate

diagram
type	tcip:CPT-Date
properties	isRef  0 content  simple
source	<xs:element name="startDate" type="CPT-Date"/>

element tcip:CPTTransitFacility/endDate

diagram
type	tcip:CPT-Date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="endDate" type="CPT-Date" minOccurs="0"/>

element tcip:CPTTransitFacility/localCPTTransitFacility

diagram
type	CPTTransitFacility
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localCPTTransitFacility" type="local:CPTTransitFacility" minOccurs="0"/>
