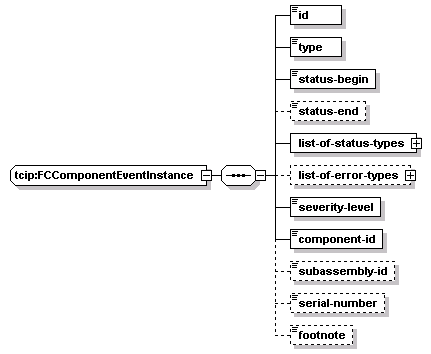

complexType tcip:FCComponentEventInstance

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	id type status-begin status-end list-of-status-types list-of-error-types severity-level component-id subassembly-id serial-number footnote
used by	elements  tcip:FcFareHealth/event-list/event tcip:FcUnloadData/health-list/health tcip:FCRevenueRecord/health-list/health
source	<xs:complexType name="FCComponentEventInstance">   <xs:sequence>     <xs:element name="id" type="FC-ComponentEventID"/>     <xs:element name="type" type="FC-ComponentEventType"/>     <xs:element name="status-begin" type="CPT-DateTime"/>     <!-- date/time event occurred -->     <xs:element name="status-end" type="CPT-DateTime" minOccurs="0"/>     <!-- date/time event concluded -->     <xs:element name="list-of-status-types">       <xs:complexType>         <xs:sequence maxOccurs="20">           <xs:element name="list-of-status-type" type="FC-ComponentStatusType"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="list-of-error-types" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="20">           <xs:element name="list-of-error-type" type="FC-ComponentErrorType"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="severity-level" type="CPT-SeverityLevel"/>     <xs:element name="component-id" type="FC-ComponentID"/>     <xs:element name="subassembly-id" type="FC-SubassemblyID" minOccurs="0"/>     <xs:element name="serial-number" type="CPT-SerialNumber" minOccurs="0"/>     <!-- refers to component -->     <xs:element name="footnote" type="CPT-Footnote" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:FCComponentEventInstance/id

diagram
type	tcip:FC-ComponentEventID
properties	isRef  0 content  simple
source	<xs:element name="id" type="FC-ComponentEventID"/>

element tcip:FCComponentEventInstance/type

diagram
type	tcip:FC-ComponentEventType
properties	isRef  0 content  simple
source	<xs:element name="type" type="FC-ComponentEventType"/>

element tcip:FCComponentEventInstance/status-begin

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="status-begin" type="CPT-DateTime"/>

element tcip:FCComponentEventInstance/status-end

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="status-end" type="CPT-DateTime" minOccurs="0"/>

element tcip:FCComponentEventInstance/list-of-status-types

diagram
properties	isRef  0 content  complex
children	list-of-status-type
source	<xs:element name="list-of-status-types">   <xs:complexType>     <xs:sequence maxOccurs="20">       <xs:element name="list-of-status-type" type="FC-ComponentStatusType"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:FCComponentEventInstance/list-of-status-types/list-of-status-type

diagram
type	tcip:FC-ComponentStatusType
properties	isRef  0 content  simple
source	<xs:element name="list-of-status-type" type="FC-ComponentStatusType"/>

element tcip:FCComponentEventInstance/list-of-error-types

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	list-of-error-type
source	<xs:element name="list-of-error-types" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="20">       <xs:element name="list-of-error-type" type="FC-ComponentErrorType"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:FCComponentEventInstance/list-of-error-types/list-of-error-type

diagram
type	tcip:FC-ComponentErrorType
properties	isRef  0 content  simple
source	<xs:element name="list-of-error-type" type="FC-ComponentErrorType"/>

element tcip:FCComponentEventInstance/severity-level

diagram
type	tcip:CPT-SeverityLevel
properties	isRef  0 content  simple
source	<xs:element name="severity-level" type="CPT-SeverityLevel"/>

element tcip:FCComponentEventInstance/component-id

diagram
type	tcip:FC-ComponentID
properties	isRef  0 content  simple
source	<xs:element name="component-id" type="FC-ComponentID"/>

element tcip:FCComponentEventInstance/subassembly-id

diagram
type	tcip:FC-SubassemblyID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  20
source	<xs:element name="subassembly-id" type="FC-SubassemblyID" minOccurs="0"/>

element tcip:FCComponentEventInstance/serial-number

diagram
type	tcip:CPT-SerialNumber
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="serial-number" type="CPT-SerialNumber" minOccurs="0"/>

element tcip:FCComponentEventInstance/footnote

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="footnote" type="CPT-Footnote" minOccurs="0"/>
