complexType tcip:FCComponentEventStatusReport

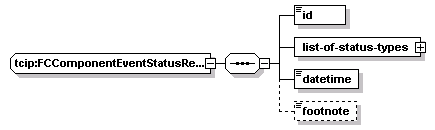

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	id list-of-status-types datetime footnote
used by	elements  tcip:FcUnloadData/health-update-list/health-update tcip:FCRevenueRecord/health-update-list/health-update tcip:FcFareHealth/update-list/update
source	<xs:complexType name="FCComponentEventStatusReport">   <xs:sequence>     <xs:element name="id" type="FC-ComponentEventID"/>     <xs:element name="list-of-status-types">       <xs:complexType>         <xs:sequence maxOccurs="20">           <xs:element name="list-of-status-type" type="FC-ComponentStatusType"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="datetime" type="CPT-DateTime"/>     <!-- date/time update occurred -->     <xs:element name="footnote" type="CPT-Footnote" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:FCComponentEventStatusReport/id

diagram
type	tcip:FC-ComponentEventID
properties	isRef  0 content  simple
source	<xs:element name="id" type="FC-ComponentEventID"/>

element tcip:FCComponentEventStatusReport/list-of-status-types

diagram
properties	isRef  0 content  complex
children	list-of-status-type
source	<xs:element name="list-of-status-types">   <xs:complexType>     <xs:sequence maxOccurs="20">       <xs:element name="list-of-status-type" type="FC-ComponentStatusType"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:FCComponentEventStatusReport/list-of-status-types/list-of-status-type

diagram
type	tcip:FC-ComponentStatusType
properties	isRef  0 content  simple
source	<xs:element name="list-of-status-type" type="FC-ComponentStatusType"/>

element tcip:FCComponentEventStatusReport/datetime

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="datetime" type="CPT-DateTime"/>

element tcip:FCComponentEventStatusReport/footnote

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="footnote" type="CPT-Footnote" minOccurs="0"/>
