complexType tcip:FCTripFare

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	itineraryID alternatives
source	<xs:complexType name="FCTripFare">   <xs:sequence>     <xs:element name="itineraryID" type="im:ReferenceID"/>     <xs:element name="alternatives">       <xs:complexType>         <xs:sequence maxOccurs="10">           <xs:element name="alternative" type="FCTripFareAlternative"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:FCTripFare/itineraryID

diagram
type	im:ReferenceID
properties	isRef  0 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="itineraryID" type="im:ReferenceID"/>

element tcip:FCTripFare/alternatives

diagram
properties	isRef  0 content  complex
children	alternative
source	<xs:element name="alternatives">   <xs:complexType>     <xs:sequence maxOccurs="10">       <xs:element name="alternative" type="FCTripFareAlternative"/>     </xs:sequence>   </xs:complexType> </xs:element>

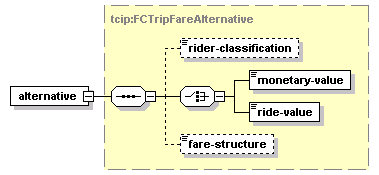

element tcip:FCTripFare/alternatives/alternative

diagram
type	tcip:FCTripFareAlternative
properties	isRef  0 content  complex
children	rider-classification monetary-value ride-value fare-structure
source	<xs:element name="alternative" type="FCTripFareAlternative"/>
