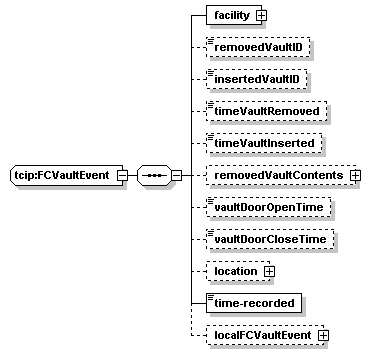

complexType tcip:FCVaultEvent

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	facility removedVaultID insertedVaultID timeVaultRemoved timeVaultInserted removedVaultContents vaultDoorOpenTime vaultDoorCloseTime location time-recorded localFCVaultEvent
used by	element  tcip:FcReportVaultEvent/event
source	<xs:complexType name="FCVaultEvent">   <xs:sequence>     <xs:element name="facility" type="CPTTransitFacilityIden"/>     <xs:element name="removedVaultID" type="CPT-SerialNumber" minOccurs="0"/>     <xs:element name="insertedVaultID" type="CPT-SerialNumber" minOccurs="0"/>     <xs:element name="timeVaultRemoved" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="timeVaultInserted" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="removedVaultContents" type="FCVaultContents" minOccurs="0"/>     <xs:element name="vaultDoorOpenTime" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="vaultDoorCloseTime" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="location" type="lrms:GeoLocation" minOccurs="0"/>     <xs:element name="time-recorded" type="CPT-DateTime"/>     <xs:element name="localFCVaultEvent" type="local:FCVaultEvent" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:FCVaultEvent/facility

diagram
type	tcip:CPTTransitFacilityIden
properties	isRef  0 content  complex
children	facility-id agency-id facility-name base-name
source	<xs:element name="facility" type="CPTTransitFacilityIden"/>

element tcip:FCVaultEvent/removedVaultID

diagram
type	tcip:CPT-SerialNumber
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="removedVaultID" type="CPT-SerialNumber" minOccurs="0"/>

element tcip:FCVaultEvent/insertedVaultID

diagram
type	tcip:CPT-SerialNumber
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="insertedVaultID" type="CPT-SerialNumber" minOccurs="0"/>

element tcip:FCVaultEvent/timeVaultRemoved

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="timeVaultRemoved" type="CPT-DateTime" minOccurs="0"/>

element tcip:FCVaultEvent/timeVaultInserted

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="timeVaultInserted" type="CPT-DateTime" minOccurs="0"/>

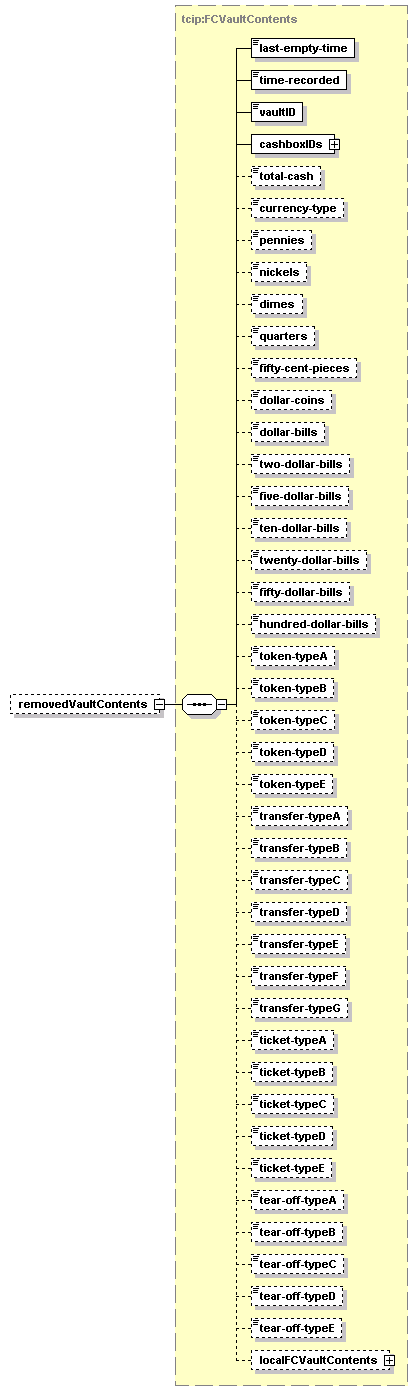

element tcip:FCVaultEvent/removedVaultContents

diagram
type	tcip:FCVaultContents
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	last-empty-time time-recorded vaultID cashboxIDs total-cash currency-type pennies nickels dimes quarters fifty-cent-pieces dollar-coins dollar-bills two-dollar-bills five-dollar-bills ten-dollar-bills twenty-dollar-bills fifty-dollar-bills hundred-dollar-bills token-typeA token-typeB token-typeC token-typeD token-typeE transfer-typeA transfer-typeB transfer-typeC transfer-typeD transfer-typeE transfer-typeF transfer-typeG ticket-typeA ticket-typeB ticket-typeC ticket-typeD ticket-typeE tear-off-typeA tear-off-typeB tear-off-typeC tear-off-typeD tear-off-typeE localFCVaultContents
source	<xs:element name="removedVaultContents" type="FCVaultContents" minOccurs="0"/>

element tcip:FCVaultEvent/vaultDoorOpenTime

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="vaultDoorOpenTime" type="CPT-DateTime" minOccurs="0"/>

element tcip:FCVaultEvent/vaultDoorCloseTime

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="vaultDoorCloseTime" type="CPT-DateTime" minOccurs="0"/>

element tcip:FCVaultEvent/location

diagram
type	lrms:GeoLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="location" type="lrms:GeoLocation" minOccurs="0"/>

element tcip:FCVaultEvent/time-recorded

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="time-recorded" type="CPT-DateTime"/>

element tcip:FCVaultEvent/localFCVaultEvent

diagram
type	FCVaultEvent
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localFCVaultEvent" type="local:FCVaultEvent" minOccurs="0"/>
