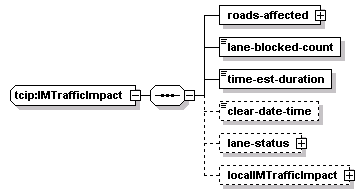

complexType tcip:IMTrafficImpact

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	roads-affected lane-blocked-count time-est-duration clear-date-time lane-status localIMTrafficImpact
used by	elements  tcip:ImIncidentUpdate/trafficImpact tcip:ImInitialIncidentReport/trafficImpact tcip:IMIncidentInfo/trafficImpact
source	<xs:complexType name="IMTrafficImpact">   <xs:sequence>     <xs:element name="roads-affected">       <xs:complexType>         <xs:sequence maxOccurs="100">           <xs:element name="roads-affected-item" type="lrms:StreetInfo"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="lane-blocked-count" type="tmdd:Event-lanes-total-affected"/>     <xs:element name="time-est-duration" type="tmdd:Event-timeline-estimated-duration"/>     <xs:element name="clear-date-time" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="lane-status" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="100">           <xs:element name="lane-statu" type="tmdd:Link-status"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="localIMTrafficImpact" type="local:IMTrafficImpact" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:IMTrafficImpact/roads-affected

diagram
properties	isRef  0 content  complex
children	roads-affected-item
source	<xs:element name="roads-affected">   <xs:complexType>     <xs:sequence maxOccurs="100">       <xs:element name="roads-affected-item" type="lrms:StreetInfo"/>     </xs:sequence>   </xs:complexType> </xs:element>

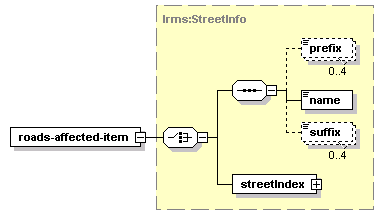

element tcip:IMTrafficImpact/roads-affected/roads-affected-item

diagram
type	lrms:StreetInfo
properties	isRef  0 content  complex
children	prefix name suffix streetIndex
source	<xs:element name="roads-affected-item" type="lrms:StreetInfo"/>

element tcip:IMTrafficImpact/lane-blocked-count

diagram
type	tmdd:Event-lanes-total-affected
properties	isRef  0 content  simple
source	<xs:element name="lane-blocked-count" type="tmdd:Event-lanes-total-affected"/>

element tcip:IMTrafficImpact/time-est-duration

diagram
type	tmdd:Event-timeline-estimated-duration
properties	isRef  0 content  simple
source	<xs:element name="time-est-duration" type="tmdd:Event-timeline-estimated-duration"/>

element tcip:IMTrafficImpact/clear-date-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="clear-date-time" type="CPT-DateTime" minOccurs="0"/>

element tcip:IMTrafficImpact/lane-status

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	lane-statu
source	<xs:element name="lane-status" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="100">       <xs:element name="lane-statu" type="tmdd:Link-status"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:IMTrafficImpact/lane-status/lane-statu

diagram
type	tmdd:Link-status
properties	isRef  0 content  simple
source	<xs:element name="lane-statu" type="tmdd:Link-status"/>

element tcip:IMTrafficImpact/localIMTrafficImpact

diagram
type	IMTrafficImpact
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localIMTrafficImpact" type="local:IMTrafficImpact" minOccurs="0"/>
