complexType tcip:ObNotifyTripStart

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	actual-start-time trip-info localObNotifyTripStart
used by	element  tcip:obNotifyTripStart
source	<xs:complexType name="ObNotifyTripStart">   <xs:sequence>     <xs:element name="actual-start-time" type="CPT-DateTime"/>     <xs:element name="trip-info" type="CCPTVTripData"/>     <xs:element name="localObNotifyTripStart" type="local:ObNotifyTripStart" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:ObNotifyTripStart/actual-start-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="actual-start-time" type="CPT-DateTime"/>

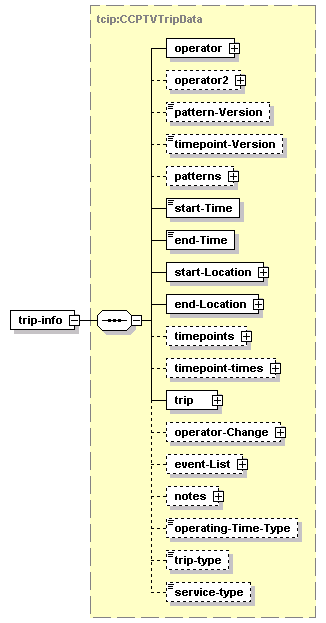

element tcip:ObNotifyTripStart/trip-info

diagram
type	tcip:CCPTVTripData
properties	isRef  0 content  complex
children	operator operator2 pattern-Version timepoint-Version patterns start-Time end-Time start-Location end-Location timepoints timepoint-times trip operator-Change event-List notes operating-Time-Type trip-type service-type
source	<xs:element name="trip-info" type="CCPTVTripData"/>

element tcip:ObNotifyTripStart/localObNotifyTripStart

diagram
type	ObNotifyTripStart
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localObNotifyTripStart" type="local:ObNotifyTripStart" minOccurs="0"/>
