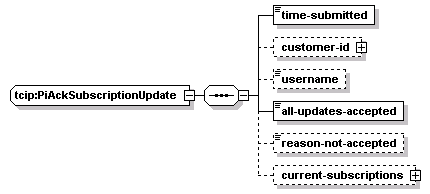

complexType tcip:PiAckSubscriptionUpdate
diagram
namespace http://www.TCIP-Adopted-03-00-01
children time-submitted customer-id username all-updates-accepted reason-not-accepted current-subscriptions
used by
element tcip:piAckSubscriptionUpdate
source <xs:complexType name="PiAckSubscriptionUpdate">
  <xs:sequence>
    <xs:element name="time-submitted" type="CPT-DateTime"/>
    <xs:element name="customer-id" type="PITravelerIden" minOccurs="0"/>
    <xs:element name="username" type="CPT-Footnote" minOccurs="0"/>
    <xs:element name="all-updates-accepted" type="CPT-Boolean"/>
    <xs:element name="reason-not-accepted" type="CPT-Footnote" minOccurs="0"/>
    <!-- only if false above -->
    <xs:element name="current-subscriptions" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="20">
          <xs:element name="current-subscription" type="PICustSubscription"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:PiAckSubscriptionUpdate/time-submitted
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="time-submitted" type="CPT-DateTime"/>

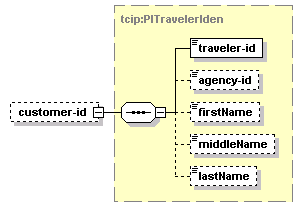

element tcip:PiAckSubscriptionUpdate/customer-id
diagram
type tcip:PITravelerIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children traveler-id agency-id firstName middleName lastName
source <xs:element name="customer-id" type="PITravelerIden" minOccurs="0"/>

element tcip:PiAckSubscriptionUpdate/username
diagram
type tcip:CPT-Footnote
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 0
maxLength 255
source <xs:element name="username" type="CPT-Footnote" minOccurs="0"/>

element tcip:PiAckSubscriptionUpdate/all-updates-accepted
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="all-updates-accepted" type="CPT-Boolean"/>

element tcip:PiAckSubscriptionUpdate/reason-not-accepted
diagram
type tcip:CPT-Footnote
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 0
maxLength 255
source <xs:element name="reason-not-accepted" type="CPT-Footnote" minOccurs="0"/>

element tcip:PiAckSubscriptionUpdate/current-subscriptions
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children current-subscription
source <xs:element name="current-subscriptions" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="20">
      <xs:element name="current-subscription" type="PICustSubscription"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

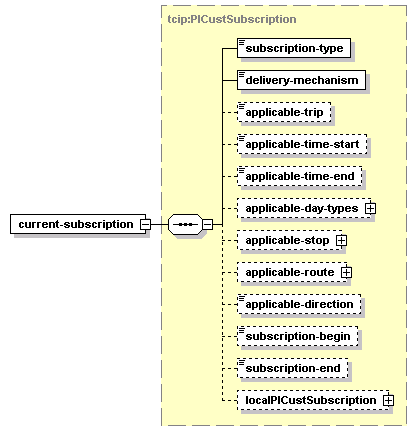

element tcip:PiAckSubscriptionUpdate/current-subscriptions/current-subscription
diagram
type tcip:PICustSubscription
properties
isRef 0
content complex
children subscription-type delivery-mechanism applicable-trip applicable-time-start applicable-time-end applicable-day-types applicable-stop applicable-route applicable-direction subscription-begin subscription-end localPICustSubscription
source <xs:element name="current-subscription" type="PICustSubscription"/>
