complexType tcip:PIDestination

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	destination exit
source	<xs:complexType name="PIDestination">   <xs:sequence>     <xs:element name="destination" type="SPPoint"/>     <xs:element name="exit" type="CPT-StoppointPortal" minOccurs="0"/>   </xs:sequence> </xs:complexType>

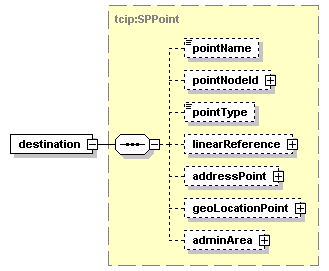

element tcip:PIDestination/destination

diagram
type	tcip:SPPoint
properties	isRef  0 content  complex
children	pointName pointNodeId pointType linearReference addressPoint geoLocationPoint adminArea
source	<xs:element name="destination" type="SPPoint"/>

element tcip:PIDestination/exit

diagram
type	tcip:CPT-StoppointPortal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="exit" type="CPT-StoppointPortal" minOccurs="0"/>
