complexType tcip:PiDirectionsSub
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionInfo from to
used by
element tcip:piDirectionsSub
source <xs:complexType name="PiDirectionsSub">
  <xs:sequence>
    <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>
    <xs:element name="from">
      <xs:complexType>
        <xs:choice>
          <xs:element name="from-geoloc" type="lrms:GeoLocation"/>
          <xs:element name="from-indoor" type="SPInteriorLocation"/>
          <xs:element name="from-lm-name" type="SP-LandmarkName"/>
          <xs:element name="from-lm-id" type="PI-LandmarkID"/>
        </xs:choice>
      </xs:complexType>
    </xs:element>
    <xs:element name="to">
      <xs:complexType>
        <xs:choice>
          <xs:element name="to-geoloc" type="lrms:GeoLocation"/>
          <xs:element name="to-indoor" type="SPInteriorLocation"/>
          <xs:element name="to-lm-name" type="SP-LandmarkName"/>
          <xs:element name="to-lm-id" type="PI-LandmarkID"/>
        </xs:choice>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:PiDirectionsSub/subscriptionInfo
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:PiDirectionsSub/from
diagram
properties
isRef 0
content complex
children from-geoloc from-indoor from-lm-name from-lm-id
source <xs:element name="from">
  <xs:complexType>
    <xs:choice>
      <xs:element name="from-geoloc" type="lrms:GeoLocation"/>
      <xs:element name="from-indoor" type="SPInteriorLocation"/>
      <xs:element name="from-lm-name" type="SP-LandmarkName"/>
      <xs:element name="from-lm-id" type="PI-LandmarkID"/>
    </xs:choice>
  </xs:complexType>
</xs:element>

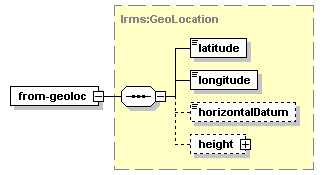

element tcip:PiDirectionsSub/from/from-geoloc
diagram
type lrms:GeoLocation
properties
isRef 0
content complex
children latitude longitude horizontalDatum height
source <xs:element name="from-geoloc" type="lrms:GeoLocation"/>

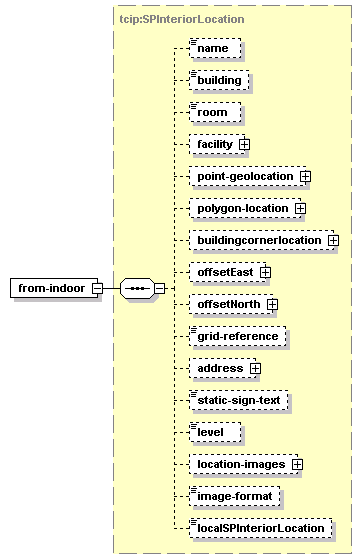

element tcip:PiDirectionsSub/from/from-indoor
diagram
type tcip:SPInteriorLocation
properties
isRef 0
content complex
children name building room facility point-geolocation polygon-location buildingcornerlocation offsetEast offsetNorth grid-reference address static-sign-text level location-images image-format localSPInteriorLocation
source <xs:element name="from-indoor" type="SPInteriorLocation"/>

element tcip:PiDirectionsSub/from/from-lm-name
diagram
type tcip:SP-LandmarkName
properties
isRef 0
content simple
source <xs:element name="from-lm-name" type="SP-LandmarkName"/>

element tcip:PiDirectionsSub/from/from-lm-id
diagram
type tcip:PI-LandmarkID
properties
isRef 0
content simple
source <xs:element name="from-lm-id" type="PI-LandmarkID"/>

element tcip:PiDirectionsSub/to
diagram
properties
isRef 0
content complex
children to-geoloc to-indoor to-lm-name to-lm-id
source <xs:element name="to">
  <xs:complexType>
    <xs:choice>
      <xs:element name="to-geoloc" type="lrms:GeoLocation"/>
      <xs:element name="to-indoor" type="SPInteriorLocation"/>
      <xs:element name="to-lm-name" type="SP-LandmarkName"/>
      <xs:element name="to-lm-id" type="PI-LandmarkID"/>
    </xs:choice>
  </xs:complexType>
</xs:element>

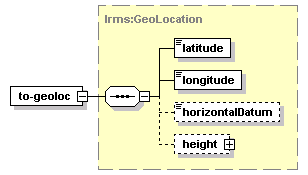

element tcip:PiDirectionsSub/to/to-geoloc
diagram
type lrms:GeoLocation
properties
isRef 0
content complex
children latitude longitude horizontalDatum height
source <xs:element name="to-geoloc" type="lrms:GeoLocation"/>

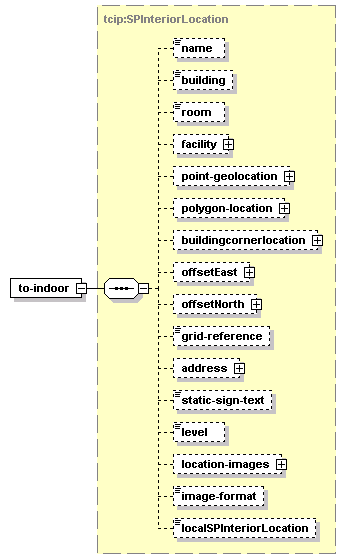

element tcip:PiDirectionsSub/to/to-indoor
diagram
type tcip:SPInteriorLocation
properties
isRef 0
content complex
children name building room facility point-geolocation polygon-location buildingcornerlocation offsetEast offsetNorth grid-reference address static-sign-text level location-images image-format localSPInteriorLocation
source <xs:element name="to-indoor" type="SPInteriorLocation"/>

element tcip:PiDirectionsSub/to/to-lm-name
diagram
type tcip:SP-LandmarkName
properties
isRef 0
content simple
source <xs:element name="to-lm-name" type="SP-LandmarkName"/>

element tcip:PiDirectionsSub/to/to-lm-id
diagram
type tcip:PI-LandmarkID
properties
isRef 0
content simple
source <xs:element name="to-lm-id" type="PI-LandmarkID"/>
