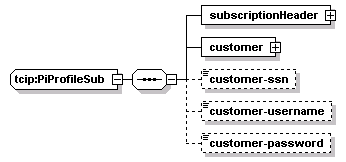

complexType tcip:PiProfileSub

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	subscriptionHeader customer customer-ssn customer-username customer-password
used by	element  tcip:piProfileSub
source	<xs:complexType name="PiProfileSub">   <xs:sequence>     <xs:element name="subscriptionHeader" type="CPTSubscriptionHeader"/>     <xs:element name="customer" type="PITravelerIden"/>     <!-- zero if unknown -->     <xs:element name="customer-ssn" type="CPT-SSN" minOccurs="0"/>     <xs:element name="customer-username" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="customer-password" type="CPT-Footnote" minOccurs="0"/>   </xs:sequence> </xs:complexType>

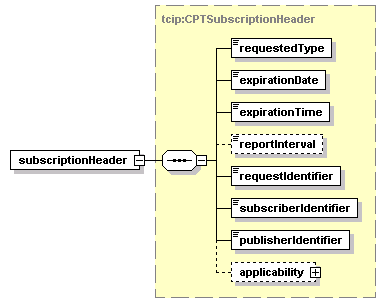

element tcip:PiProfileSub/subscriptionHeader

diagram
type	tcip:CPTSubscriptionHeader
properties	isRef  0 content  complex
children	requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source	<xs:element name="subscriptionHeader" type="CPTSubscriptionHeader"/>

element tcip:PiProfileSub/customer

diagram
type	tcip:PITravelerIden
properties	isRef  0 content  complex
children	traveler-id agency-id firstName middleName lastName
source	<xs:element name="customer" type="PITravelerIden"/>

element tcip:PiProfileSub/customer-ssn

diagram
type	tcip:CPT-SSN
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="customer-ssn" type="CPT-SSN" minOccurs="0"/>

element tcip:PiProfileSub/customer-username

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="customer-username" type="CPT-Footnote" minOccurs="0"/>

element tcip:PiProfileSub/customer-password

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="customer-password" type="CPT-Footnote" minOccurs="0"/>
