complexType tcip:PITextToDisplay

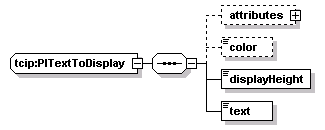

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	attributes color displayHeight text
source	<xs:complexType name="PITextToDisplay">   <xs:sequence>     <xs:element name="attributes" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="20">           <xs:element name="attribute" type="PI-PIDTextAttribute"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="color" type="PI-PIDTextColor" minOccurs="0"/>     <xs:element name="displayHeight" type="CPT-GenericCounter"/>     <xs:element name="text" type="PI-DMSMessage"/>   </xs:sequence> </xs:complexType>

element tcip:PITextToDisplay/attributes

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	attribute
source	<xs:element name="attributes" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="20">       <xs:element name="attribute" type="PI-PIDTextAttribute"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:PITextToDisplay/attributes/attribute

diagram
type	tcip:PI-PIDTextAttribute
properties	isRef  0 content  simple
source	<xs:element name="attribute" type="PI-PIDTextAttribute"/>

element tcip:PITextToDisplay/color

diagram
type	tcip:PI-PIDTextColor
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="color" type="PI-PIDTextColor" minOccurs="0"/>

element tcip:PITextToDisplay/displayHeight

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 content  simple
source	<xs:element name="displayHeight" type="CPT-GenericCounter"/>

element tcip:PITextToDisplay/text

diagram
type	tcip:PI-DMSMessage
properties	isRef  0 content  simple
facets	minLength  1 maxLength  60
source	<xs:element name="text" type="PI-DMSMessage"/>
