complexType tcip:SchOperatorAssignmentFile
diagram
namespace http://www.TCIP-Adopted-03-00-01
children fileHeader assignments deleted-assignments
used by
element tcip:schOperatorAssignmentFile
source <xs:complexType name="SchOperatorAssignmentFile">
  <xs:sequence>
    <xs:element name="fileHeader" type="CPTLoadFileHeader"/>
    <xs:element name="assignments">
      <xs:complexType>
        <xs:sequence maxOccurs="10000">
          <xs:element name="assignment" type="SCHOperatorAssignment"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="deleted-assignments">
      <xs:complexType>
        <xs:sequence maxOccurs="10000">
          <xs:element name="deleted-assignment" type="SCHRunIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

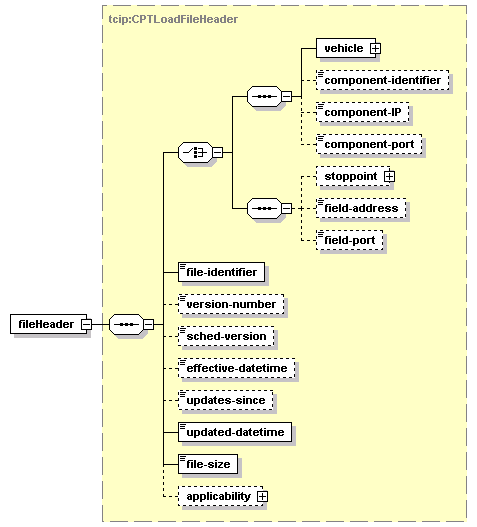

element tcip:SchOperatorAssignmentFile/fileHeader
diagram
type tcip:CPTLoadFileHeader
properties
isRef 0
content complex
children vehicle component-identifier component-IP component-port stoppoint field-address field-port file-identifier version-number sched-version effective-datetime updates-since updated-datetime file-size applicability
source <xs:element name="fileHeader" type="CPTLoadFileHeader"/>

element tcip:SchOperatorAssignmentFile/assignments
diagram
properties
isRef 0
content complex
children assignment
source <xs:element name="assignments">
  <xs:complexType>
    <xs:sequence maxOccurs="10000">
      <xs:element name="assignment" type="SCHOperatorAssignment"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

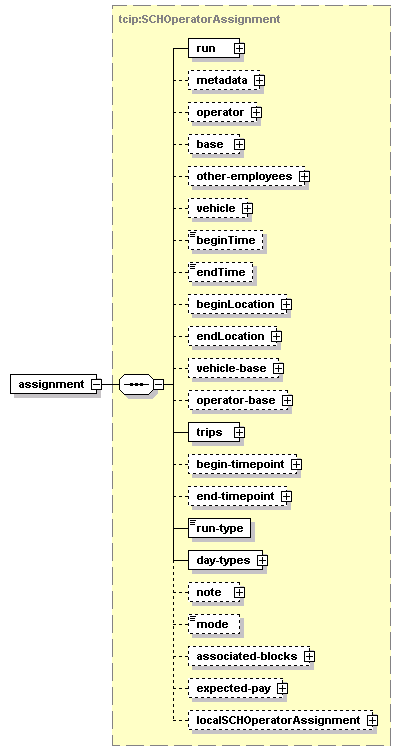

element tcip:SchOperatorAssignmentFile/assignments/assignment
diagram
type tcip:SCHOperatorAssignment
properties
isRef 0
content complex
children run metadata operator base other-employees vehicle beginTime endTime beginLocation endLocation vehicle-base operator-base trips begin-timepoint end-timepoint run-type day-types note mode associated-blocks expected-pay localSCHOperatorAssignment
source <xs:element name="assignment" type="SCHOperatorAssignment"/>

element tcip:SchOperatorAssignmentFile/deleted-assignments
diagram
properties
isRef 0
content complex
children deleted-assignment
source <xs:element name="deleted-assignments">
  <xs:complexType>
    <xs:sequence maxOccurs="10000">
      <xs:element name="deleted-assignment" type="SCHRunIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

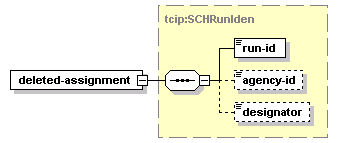

element tcip:SchOperatorAssignmentFile/deleted-assignments/deleted-assignment
diagram
type tcip:SCHRunIden
properties
isRef 0
content complex
children run-id agency-id designator
source <xs:element name="deleted-assignment" type="SCHRunIden"/>
