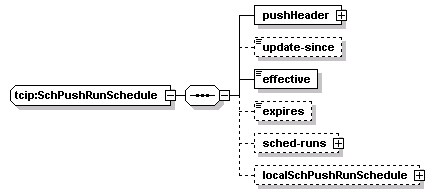

complexType tcip:SchPushRunSchedule
diagram
namespace http://www.TCIP-Adopted-03-00-01
children pushHeader update-since effective expires sched-runs localSchPushRunSchedule
used by
element tcip:schPushRunSchedule
source <xs:complexType name="SchPushRunSchedule">
  <xs:sequence>
    <xs:element name="pushHeader" type="CPTPushHeader"/>
    <xs:element name="update-since" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="effective" type="CPT-DateTime"/>
    <xs:element name="expires" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="sched-runs" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="10000">
          <xs:element name="sched-run" type="SCHRunScheduleEntry"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localSchPushRunSchedule" type="local:SchPushRunSchedule" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

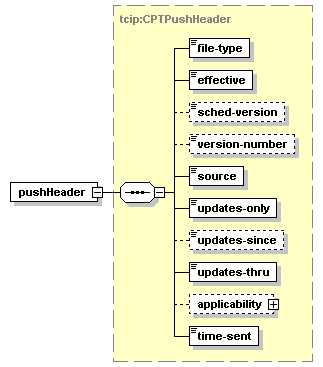

element tcip:SchPushRunSchedule/pushHeader
diagram
type tcip:CPTPushHeader
properties
isRef 0
content complex
children file-type effective sched-version version-number source updates-only updates-since updates-thru applicability time-sent
source <xs:element name="pushHeader" type="CPTPushHeader"/>

element tcip:SchPushRunSchedule/update-since
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="update-since" type="CPT-DateTime" minOccurs="0"/>

element tcip:SchPushRunSchedule/effective
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="effective" type="CPT-DateTime"/>

element tcip:SchPushRunSchedule/expires
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="expires" type="CPT-DateTime" minOccurs="0"/>

element tcip:SchPushRunSchedule/sched-runs
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children sched-run
source <xs:element name="sched-runs" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="10000">
      <xs:element name="sched-run" type="SCHRunScheduleEntry"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

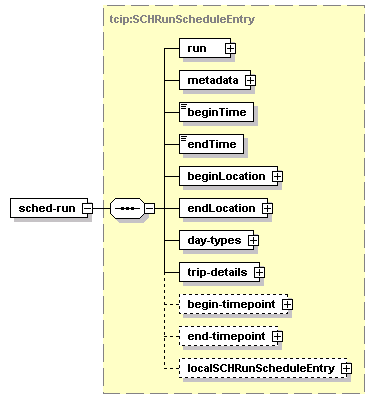

element tcip:SchPushRunSchedule/sched-runs/sched-run
diagram
type tcip:SCHRunScheduleEntry
properties
isRef 0
content complex
children run metadata beginTime endTime beginLocation endLocation day-types trip-details begin-timepoint end-timepoint localSCHRunScheduleEntry
source <xs:element name="sched-run" type="SCHRunScheduleEntry"/>

element tcip:SchPushRunSchedule/localSchPushRunSchedule
diagram
type SchPushRunSchedule
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localSchPushRunSchedule" type="local:SchPushRunSchedule" minOccurs="0"/>
