complexType tcip:SchPushVehicleAssignments
diagram
namespace http://www.TCIP-Adopted-03-00-01
children push-header assignments deleted-assignments
used by
element tcip:schPushVehicleAssignments
source <xs:complexType name="SchPushVehicleAssignments">
  <xs:sequence>
    <xs:element name="push-header" type="CPTPushHeader"/>
    <xs:element name="assignments" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="assignment" type="SCHVehicleAssignment"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="deleted-assignments" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="deleted-assignment" type="SCHBlockIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

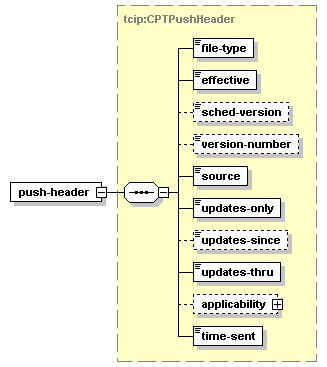

element tcip:SchPushVehicleAssignments/push-header
diagram
type tcip:CPTPushHeader
properties
isRef 0
content complex
children file-type effective sched-version version-number source updates-only updates-since updates-thru applicability time-sent
source <xs:element name="push-header" type="CPTPushHeader"/>

element tcip:SchPushVehicleAssignments/assignments
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children assignment
source <xs:element name="assignments" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="assignment" type="SCHVehicleAssignment"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

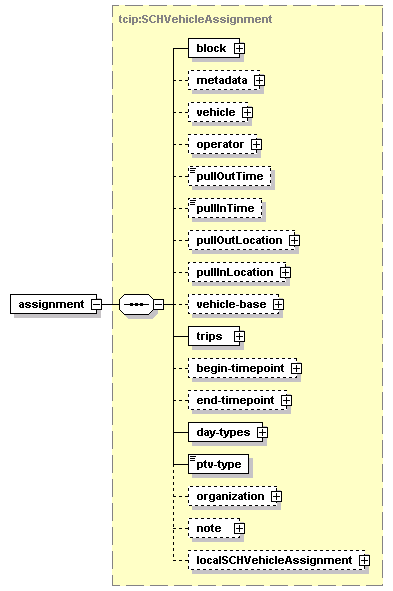

element tcip:SchPushVehicleAssignments/assignments/assignment
diagram
type tcip:SCHVehicleAssignment
properties
isRef 0
content complex
children block metadata vehicle operator pullOutTime pullInTime pullOutLocation pullInLocation vehicle-base trips begin-timepoint end-timepoint day-types ptv-type organization note localSCHVehicleAssignment
source <xs:element name="assignment" type="SCHVehicleAssignment"/>

element tcip:SchPushVehicleAssignments/deleted-assignments
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children deleted-assignment
source <xs:element name="deleted-assignments" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="deleted-assignment" type="SCHBlockIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

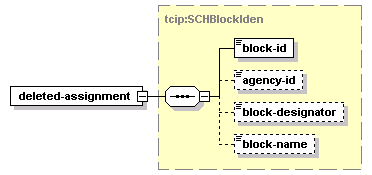

element tcip:SchPushVehicleAssignments/deleted-assignments/deleted-assignment
diagram
type tcip:SCHBlockIden
properties
isRef 0
content complex
children block-id agency-id block-designator block-name
source <xs:element name="deleted-assignment" type="SCHBlockIden"/>
