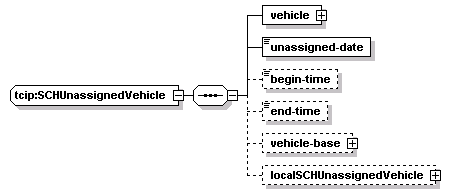

complexType tcip:SCHUnassignedVehicle

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	vehicle unassigned-date begin-time end-time vehicle-base localSCHUnassignedVehicle
used by	element  tcip:SchUnassignedVehicleList/unassigned-vehicles/unassigned-vehicle
source	<xs:complexType name="SCHUnassignedVehicle">   <xs:sequence>     <xs:element name="vehicle" type="CPTVehicleIden"/>     <xs:element name="unassigned-date" type="CPT-Date"/>     <xs:element name="begin-time" type="CPT-Time" minOccurs="0"/>     <xs:element name="end-time" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="vehicle-base" type="CPTTransitFacilityIden" minOccurs="0"/>     <xs:element name="localSCHUnassignedVehicle" type="local:SCHUnassignedVehicle" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SCHUnassignedVehicle/vehicle

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="vehicle" type="CPTVehicleIden"/>

element tcip:SCHUnassignedVehicle/unassigned-date

diagram
type	tcip:CPT-Date
properties	isRef  0 content  simple
source	<xs:element name="unassigned-date" type="CPT-Date"/>

element tcip:SCHUnassignedVehicle/begin-time

diagram
type	tcip:CPT-Time
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="begin-time" type="CPT-Time" minOccurs="0"/>

element tcip:SCHUnassignedVehicle/end-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="end-time" type="CPT-DateTime" minOccurs="0"/>

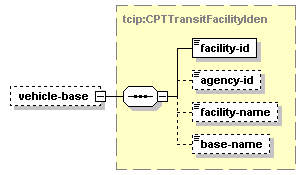

element tcip:SCHUnassignedVehicle/vehicle-base

diagram
type	tcip:CPTTransitFacilityIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	facility-id agency-id facility-name base-name
source	<xs:element name="vehicle-base" type="CPTTransitFacilityIden" minOccurs="0"/>

element tcip:SCHUnassignedVehicle/localSCHUnassignedVehicle

diagram
type	SCHUnassignedVehicle
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localSCHUnassignedVehicle" type="local:SCHUnassignedVehicle" minOccurs="0"/>
