complexType tcip:SCHWaitingTime
diagram
namespace http://www.TCIP-Adopted-03-00-01
children stoppoint other-location wait-time
used by
element tcip:SCHRunningTimeEntry/waiting-times/waiting-time
source <xs:complexType name="SCHWaitingTime">
  <xs:sequence>
    <xs:choice>
      <xs:element name="stoppoint" type="CPTStoppointIden"/>
      <xs:element name="other-location" type="lrms:GeoLocation"/>
    </xs:choice>
    <xs:element name="wait-time" type="CPT-Duration"/>
  </xs:sequence>
</xs:complexType>

element tcip:SCHWaitingTime/stoppoint
diagram
type tcip:CPTStoppointIden
properties
isRef 0
content complex
children stoppoint-id agency-id name
source <xs:element name="stoppoint" type="CPTStoppointIden"/>

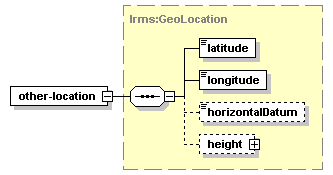

element tcip:SCHWaitingTime/other-location
diagram
type lrms:GeoLocation
properties
isRef 0
content complex
children latitude longitude horizontalDatum height
source <xs:element name="other-location" type="lrms:GeoLocation"/>

element tcip:SCHWaitingTime/wait-time
diagram
type tcip:CPT-Duration
properties
isRef 0
content simple
facets
minInclusive -2147483648
maxInclusive 2147483647
source <xs:element name="wait-time" type="CPT-Duration"/>
