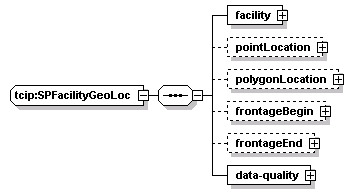

complexType tcip:SPFacilityGeoLoc

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	facility pointLocation polygonLocation frontageBegin frontageEnd data-quality
used by	element  tcip:SpGeolocationData/facility-locations/facility-location
source	<xs:complexType name="SPFacilityGeoLoc">   <xs:sequence>     <xs:element name="facility" type="CPTTransitFacilityIden"/>     <xs:element name="pointLocation" type="lrms:GeoLocation" minOccurs="0"/>     <xs:element name="polygonLocation" type="SPPolygon" minOccurs="0"/>     <xs:element name="frontageBegin" type="lrms:GeoLocation" minOccurs="0"/>     <xs:element name="frontageEnd" type="lrms:GeoLocation" minOccurs="0"/>     <xs:element name="data-quality" type="SPDataQuality"/>   </xs:sequence> </xs:complexType>

element tcip:SPFacilityGeoLoc/facility

diagram
type	tcip:CPTTransitFacilityIden
properties	isRef  0 content  complex
children	facility-id agency-id facility-name base-name
source	<xs:element name="facility" type="CPTTransitFacilityIden"/>

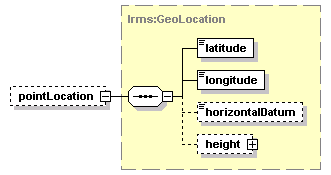

element tcip:SPFacilityGeoLoc/pointLocation

diagram
type	lrms:GeoLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="pointLocation" type="lrms:GeoLocation" minOccurs="0"/>

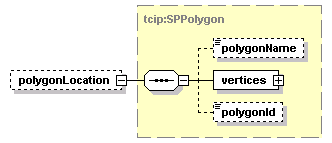

element tcip:SPFacilityGeoLoc/polygonLocation

diagram
type	tcip:SPPolygon
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	polygonName vertices polygonId
source	<xs:element name="polygonLocation" type="SPPolygon" minOccurs="0"/>

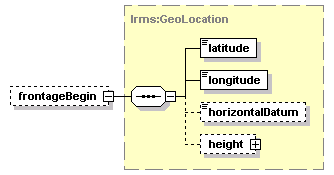

element tcip:SPFacilityGeoLoc/frontageBegin

diagram
type	lrms:GeoLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="frontageBegin" type="lrms:GeoLocation" minOccurs="0"/>

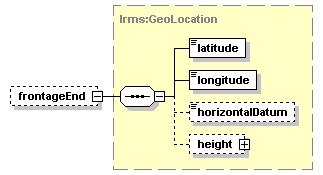

element tcip:SPFacilityGeoLoc/frontageEnd

diagram
type	lrms:GeoLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="frontageEnd" type="lrms:GeoLocation" minOccurs="0"/>

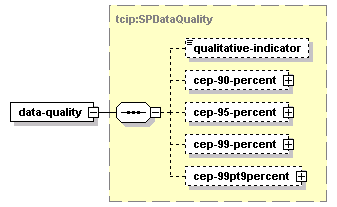

element tcip:SPFacilityGeoLoc/data-quality

diagram
type	tcip:SPDataQuality
properties	isRef  0 content  complex
children	qualitative-indicator cep-90-percent cep-95-percent cep-99-percent cep-99pt9percent
source	<xs:element name="data-quality" type="SPDataQuality"/>
