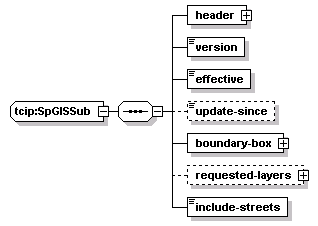

complexType tcip:SpGISSub
diagram
namespace http://www.TCIP-Adopted-03-00-01
children header version effective update-since boundary-box requested-layers include-streets
used by
element tcip:spGISSub
source <xs:complexType name="SpGISSub">
  <xs:sequence>
    <xs:element name="header" type="CPTSubscriptionHeader"/>
    <xs:element name="version" type="CPT-FileVersion"/>
    <xs:element name="effective" type="CPT-DateTime"/>
    <xs:element name="update-since" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="boundary-box" type="SPPolygon"/>
    <xs:element name="requested-layers" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="200">
          <xs:element name="requested-layer" type="CPT-FeatureType"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="include-streets" type="CPT-Boolean"/>
  </xs:sequence>
</xs:complexType>

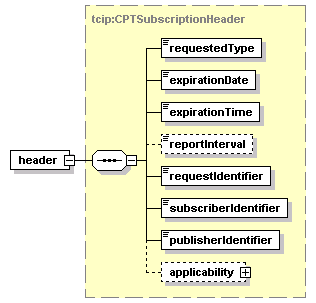

element tcip:SpGISSub/header
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="header" type="CPTSubscriptionHeader"/>

element tcip:SpGISSub/version
diagram
type tcip:CPT-FileVersion
properties
isRef 0
content simple
source <xs:element name="version" type="CPT-FileVersion"/>

element tcip:SpGISSub/effective
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="effective" type="CPT-DateTime"/>

element tcip:SpGISSub/update-since
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="update-since" type="CPT-DateTime" minOccurs="0"/>

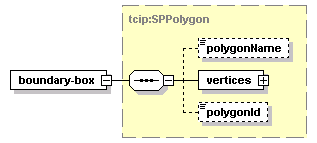

element tcip:SpGISSub/boundary-box
diagram
type tcip:SPPolygon
properties
isRef 0
content complex
children polygonName vertices polygonId
source <xs:element name="boundary-box" type="SPPolygon"/>

element tcip:SpGISSub/requested-layers
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children requested-layer
source <xs:element name="requested-layers" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="200">
      <xs:element name="requested-layer" type="CPT-FeatureType"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SpGISSub/requested-layers/requested-layer
diagram
type tcip:CPT-FeatureType
properties
isRef 0
content simple
source <xs:element name="requested-layer" type="CPT-FeatureType"/>

element tcip:SpGISSub/include-streets
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="include-streets" type="CPT-Boolean"/>
