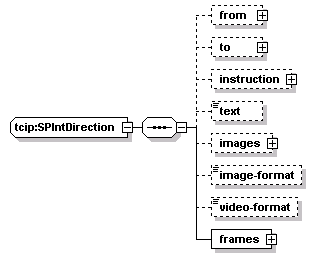

complexType tcip:SPIntDirection

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	from to instruction text images image-format video-format frames
used by	element  tcip:PiDirections/int-directions/int-direction
source	<xs:complexType name="SPIntDirection">   <xs:sequence>     <xs:element name="from" type="SPInteriorLocation" minOccurs="0"/>     <xs:element name="to" type="SPInteriorLocation" minOccurs="0"/>     <xs:element name="instruction" type="atis:ManeuverInstruction" minOccurs="0"/>     <xs:element name="text" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="images" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="10">           <xs:element name="image" type="PI-BinaryImageData"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="image-format" type="PI-GraphicFormat" minOccurs="0"/>     <xs:element name="video-format" type="PI-GraphicFormat" minOccurs="0"/>     <xs:element name="frames">       <xs:complexType>         <xs:sequence maxOccurs="5">           <xs:element name="frame" type="PI-BinaryVideoData"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

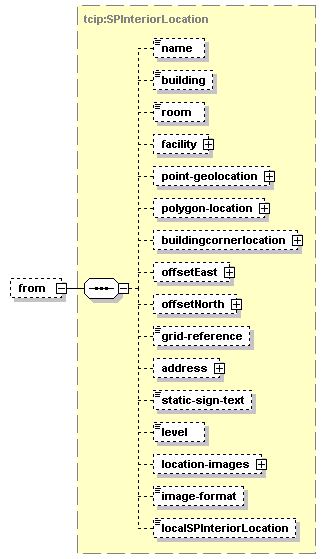

element tcip:SPIntDirection/from

diagram
type	tcip:SPInteriorLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	name building room facility point-geolocation polygon-location buildingcornerlocation offsetEast offsetNorth grid-reference address static-sign-text level location-images image-format localSPInteriorLocation
source	<xs:element name="from" type="SPInteriorLocation" minOccurs="0"/>

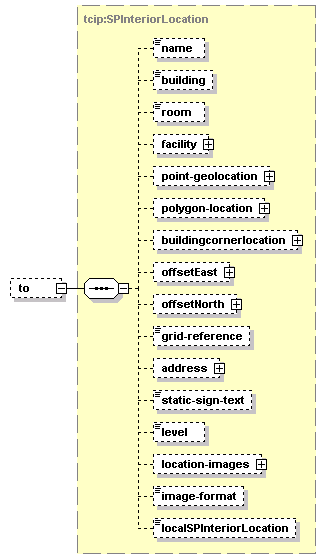

element tcip:SPIntDirection/to

diagram
type	tcip:SPInteriorLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	name building room facility point-geolocation polygon-location buildingcornerlocation offsetEast offsetNorth grid-reference address static-sign-text level location-images image-format localSPInteriorLocation
source	<xs:element name="to" type="SPInteriorLocation" minOccurs="0"/>

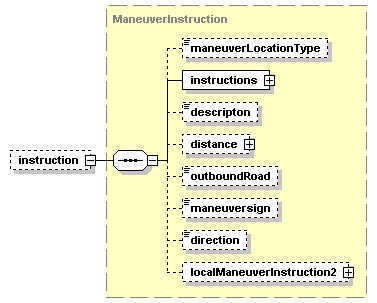

element tcip:SPIntDirection/instruction

diagram
type	ManeuverInstruction
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	maneuverLocationType instructions descripton distance outboundRoad maneuversign direction localManeuverInstruction2
source	<xs:element name="instruction" type="atis:ManeuverInstruction" minOccurs="0"/>

element tcip:SPIntDirection/text

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="text" type="CPT-Footnote" minOccurs="0"/>

element tcip:SPIntDirection/images

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	image
source	<xs:element name="images" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="10">       <xs:element name="image" type="PI-BinaryImageData"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:SPIntDirection/images/image

diagram
type	tcip:PI-BinaryImageData
properties	isRef  0 content  simple
facets	maxLength  2000000
source	<xs:element name="image" type="PI-BinaryImageData"/>

element tcip:SPIntDirection/image-format

diagram
type	tcip:PI-GraphicFormat
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="image-format" type="PI-GraphicFormat" minOccurs="0"/>

element tcip:SPIntDirection/video-format

diagram
type	tcip:PI-GraphicFormat
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="video-format" type="PI-GraphicFormat" minOccurs="0"/>

element tcip:SPIntDirection/frames

diagram
properties	isRef  0 content  complex
children	frame
source	<xs:element name="frames">   <xs:complexType>     <xs:sequence maxOccurs="5">       <xs:element name="frame" type="PI-BinaryVideoData"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:SPIntDirection/frames/frame

diagram
type	tcip:PI-BinaryVideoData
properties	isRef  0 content  simple
facets	maxLength  2000000
source	<xs:element name="frame" type="PI-BinaryVideoData"/>
