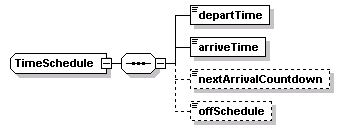

complexType TimeSchedule

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	departTime arriveTime nextArrivalCountdown offSchedule
source	<xs:complexType name="TimeSchedule">   <xs:sequence>     <xs:element name="departTime" type="Time"/>     <xs:element name="arriveTime" type="Time"/>     <xs:element name="nextArrivalCountdown" type="tcip:PI-NextArrivalCountdown" minOccurs="0"/>     <xs:element name="offSchedule" type="tcip:PI-OffSchedule" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element TimeSchedule/departTime

diagram
type	Time
properties	isRef  0 content  simple
facets	minLength  6 maxLength  10
source	<xs:element name="departTime" type="Time"/>

element TimeSchedule/arriveTime

diagram
type	Time
properties	isRef  0 content  simple
facets	minLength  6 maxLength  10
source	<xs:element name="arriveTime" type="Time"/>

element TimeSchedule/nextArrivalCountdown

diagram
type	tcip:PI-NextArrivalCountdown
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="nextArrivalCountdown" type="tcip:PI-NextArrivalCountdown" minOccurs="0"/>

element TimeSchedule/offSchedule

diagram
type	tcip:PI-OffSchedule
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="offSchedule" type="tcip:PI-OffSchedule" minOccurs="0"/>
