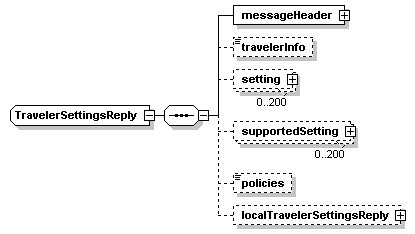

complexType TravelerSettingsReply

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	messageHeader travelerInfo setting supportedSetting policies localTravelerSettingsReply
used by	element  travelerSettingsReply
source	<xs:complexType name="TravelerSettingsReply">   <xs:sequence>     <xs:element name="messageHeader" type="MessageHeader"/>     <xs:element name="travelerInfo" type="Traveler-Identity" minOccurs="0"/>     <xs:element name="setting" type="SettingEntries" minOccurs="0" maxOccurs="200"/>     <!-- the sequence of returned setting values -->     <xs:element name="supportedSetting" type="SettingEntries" minOccurs="0" maxOccurs="200"/>     <!-- a list of suportted values and uses -->     <xs:element name="policies" type="URL-Link" minOccurs="0"/>     <xs:element name="localTravelerSettingsReply" type="local:TravelerSettingsReply" minOccurs="0"/>   </xs:sequence> </xs:complexType>

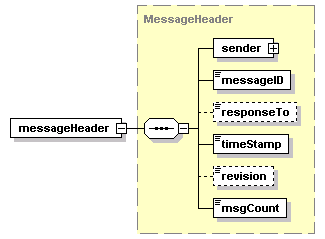

element TravelerSettingsReply/messageHeader

diagram
type	MessageHeader
properties	isRef  0 content  complex
children	sender messageID responseTo timeStamp revision msgCount
source	<xs:element name="messageHeader" type="MessageHeader"/>

element TravelerSettingsReply/travelerInfo

diagram
type	Traveler-Identity
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  12
source	<xs:element name="travelerInfo" type="Traveler-Identity" minOccurs="0"/>

element TravelerSettingsReply/setting

diagram
type	SettingEntries
properties	isRef  0 minOcc  0 maxOcc  200 content  complex
children	settingType tag value action
source	<xs:element name="setting" type="SettingEntries" minOccurs="0" maxOccurs="200"/>

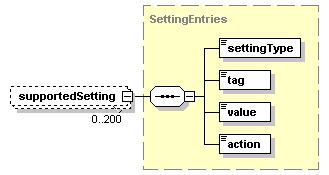

element TravelerSettingsReply/supportedSetting

diagram
type	SettingEntries
properties	isRef  0 minOcc  0 maxOcc  200 content  complex
children	settingType tag value action
source	<xs:element name="supportedSetting" type="SettingEntries" minOccurs="0" maxOccurs="200"/>

element TravelerSettingsReply/policies

diagram
type	URL-Link
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="policies" type="URL-Link" minOccurs="0"/>

element TravelerSettingsReply/localTravelerSettingsReply

diagram
type	local:TravelerSettingsReply
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localTravelerSettingsReply" type="local:TravelerSettingsReply" minOccurs="0"/>
