Schema Atis.xsd


schema location:  C:\Program Files\Mini-Edit\XMLSchemas\ATIS\Atis.xsd
targetNamespace:  http://www.atis-address

Elements  Complex types  Simple types

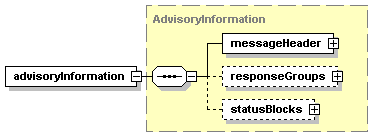

advisoryInformation  AdvisoryInformation  ADA-Access

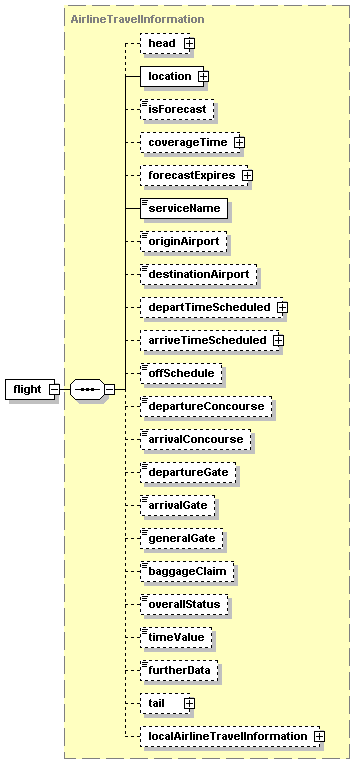

atisMessage  AirlineTravelInformation  AirportCode
directoryAdvancedRequest  Amenity  Appointment-Confirmation

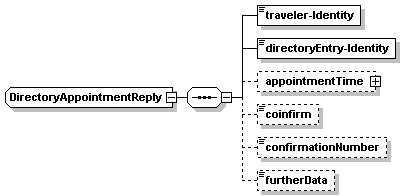

directoryAppointmentReply  ATISMessage  binary

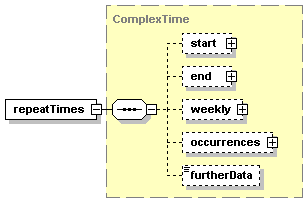

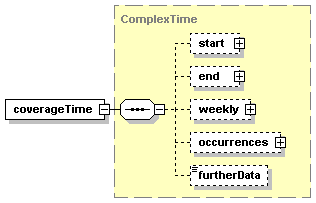

directoryAppointmentRequest  ComplexTime  Broadcast-Wrapper

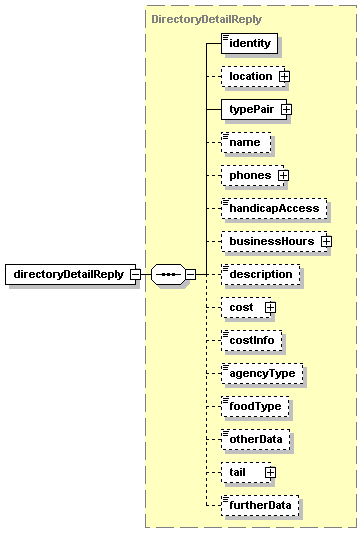

directoryDetailReply  ContactInformation  CapabilityCode

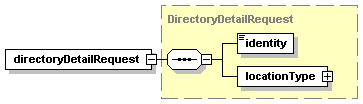

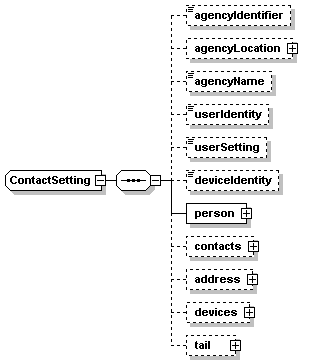

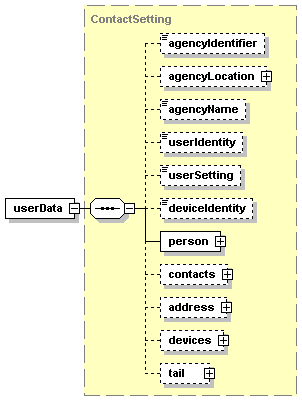

directoryDetailRequest  ContactSetting  CharSet
directoryExtendedInformationEntry  Cost  CompassDirection
directoryExtendedInformationReply  Database  ConfirmationNumber

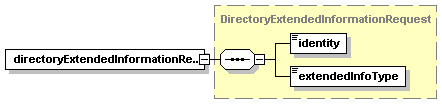

directoryExtendedInformationRequest  DatabaseIdentity  ConstrainByProfile

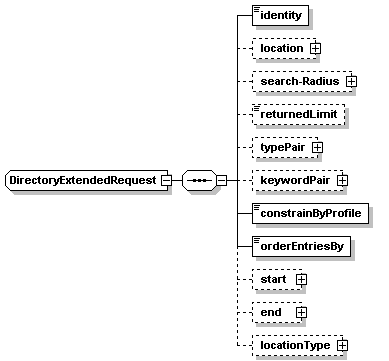

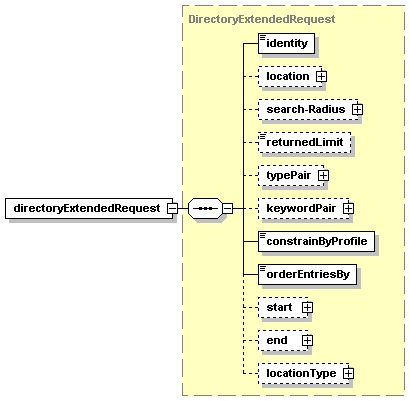

directoryExtendedRequest  DatabaseNumber  DatabaseName

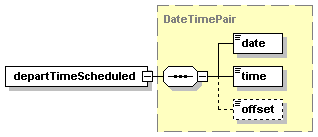

directoryInformation  DateTimePair  DatabaseNumber-string

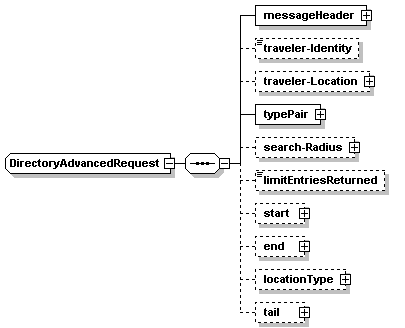

directoryNameRequest  DirectoryAdvancedRequest  DatabaseVersion

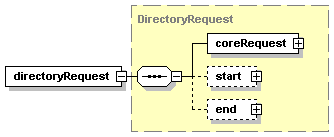

directoryRequest  DirectoryAppointmentReply  Date

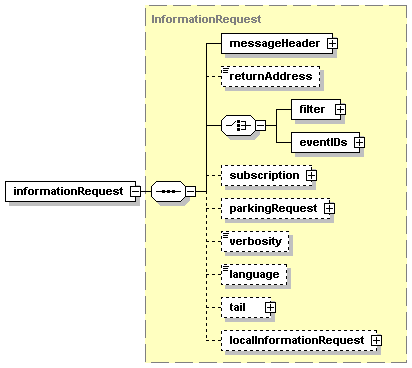

informationRequest  DirectoryAppointmentRequest  Day-of-week

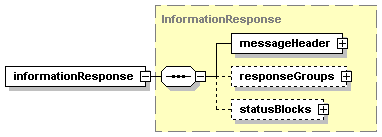

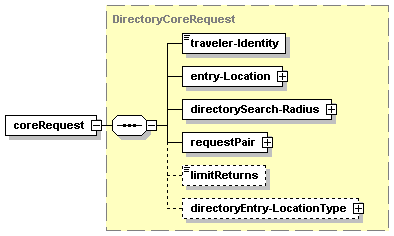

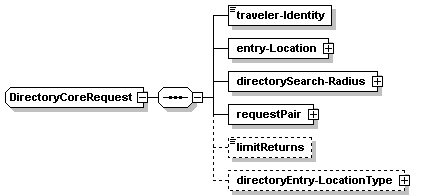

informationResponse  DirectoryCoreRequest  Day-of-week-item

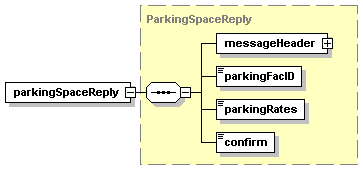

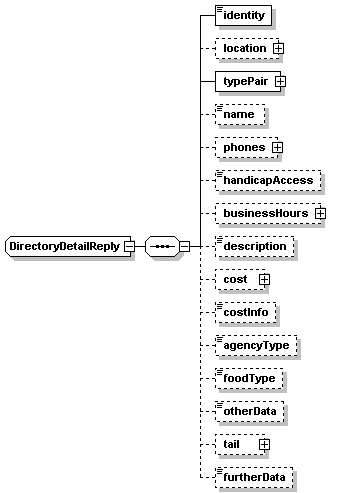

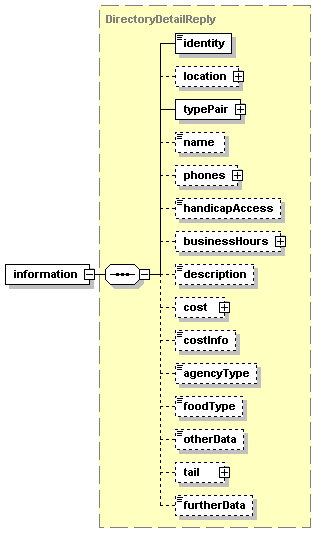

parkingSpaceReply  DirectoryDetailReply  Description
parkingSpaceRequest  DirectoryDetailRequest  Device-Identity
routeRequest  DirectoryEntry  Device-Setting
travelerBroadcastWrapper  DirectoryExtendedInformationEntry  Device-TransferSpeed

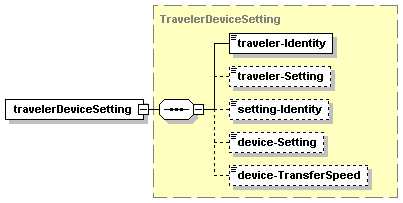

travelerDeviceSetting  DirectoryExtendedInformationReply  Direction

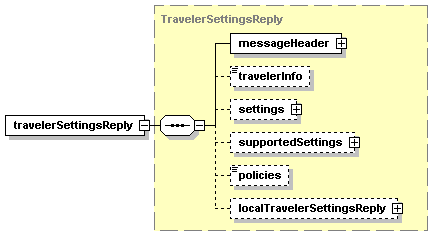

travelerSettingsReply  DirectoryExtendedInformationRequest  Email
travelerSettingsRequest  DirectoryExtendedRequest  Error-NotificationCode
DirectoryInformation  Error-NotificationLevel

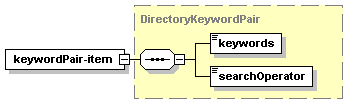

DirectoryKeywordPair  EventTypes
DirectoryNameRequest  ExpireAction
DirectoryRequest  ExpireAction-item

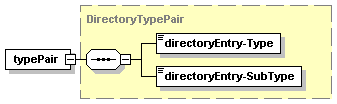

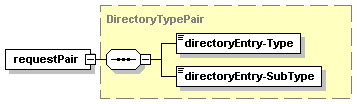

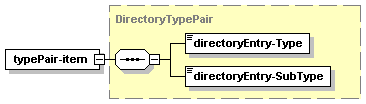

DirectoryTypePair  ExtendedInfo-string

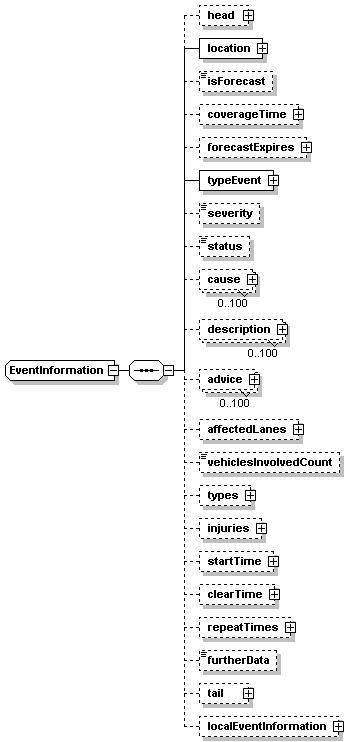

EventInformation  ExtendedInfoType
ExtendedInfo  Extension

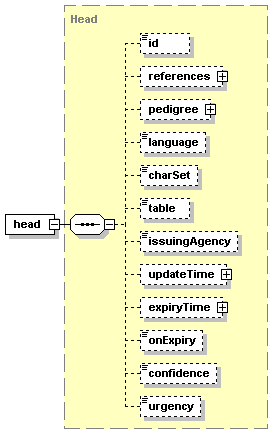

Head  FirstName
Identifier  Flight-GateNumber
IdentityOrLocation  FlightTypes
IncidentInformation  Freetext
InformationRequest  GovernmentSubType

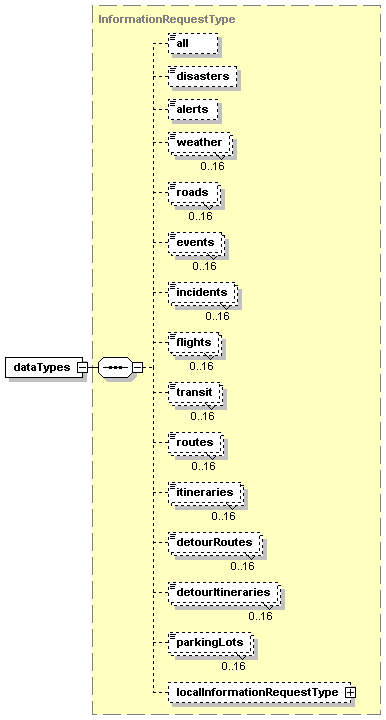

InformationRequestType  HonorificName
InformationResponse  Identity

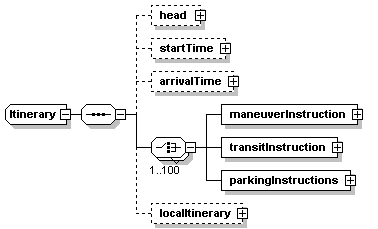

Itinerary  Identity-DL-number
Leg  Identity-plate
LinkTrafficInformation  Identity-plate-origin

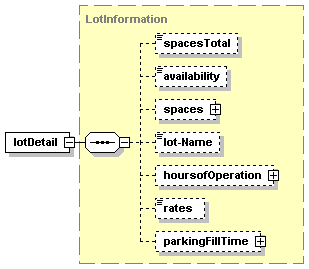

LotInformation  Identity-plate-type

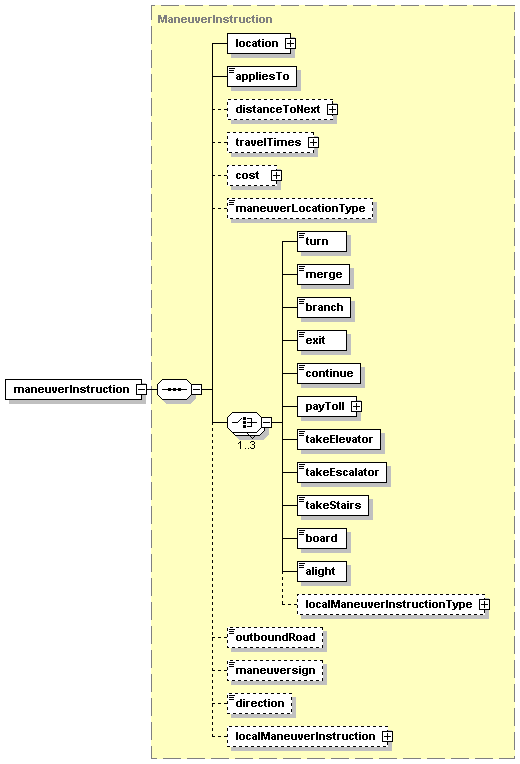

ManeuverInstruction  Identity-VIN

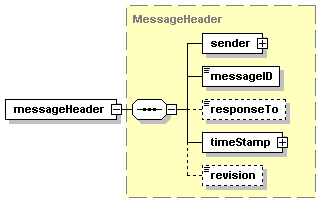

MessageHeader  InternationalAccessCode
OctetString  Keywords

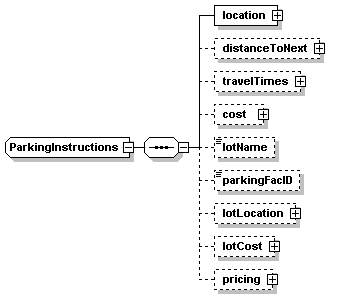

ParkingInstructions  LastName
ParkingLotInformation  LimitReturns

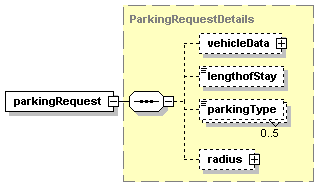

ParkingRequestDetails  Location-quality

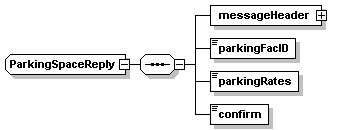

ParkingSpaceReply  Location-tech
ParkingSpaceRequest  Lot-Name
ParkingSpaceTypes  LotInformationType

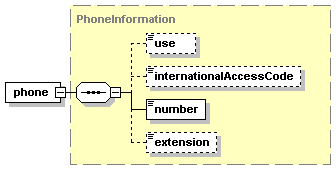

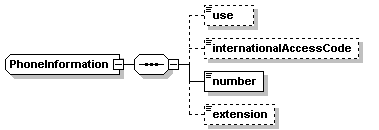

PhoneInformation  ManeuverLocationType
Point  Message-Confidence
PriceSchedule  MiddleName
PriceScheduleEntry  Mode

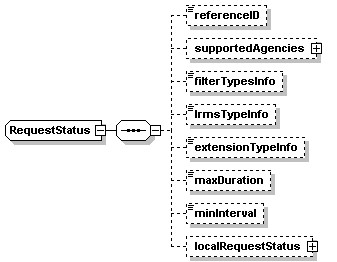

RequestStatus  MSG-Revision

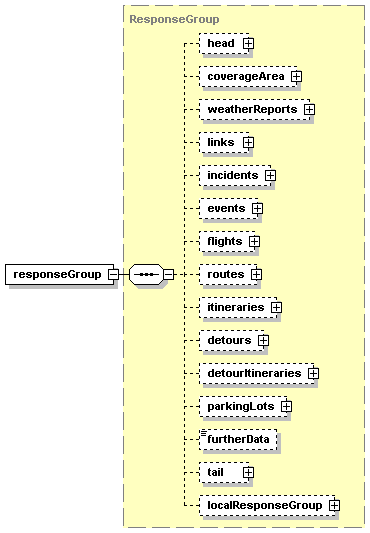

ResponseGroup  Name

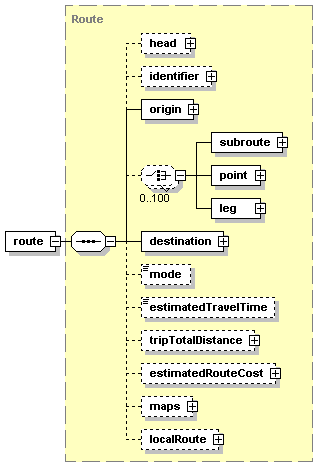

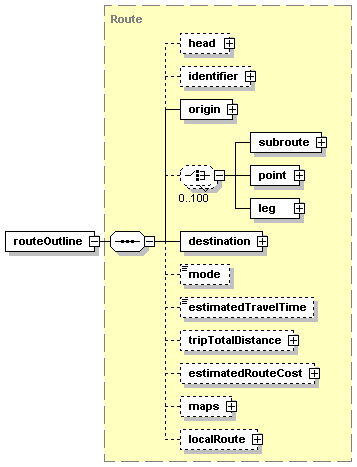

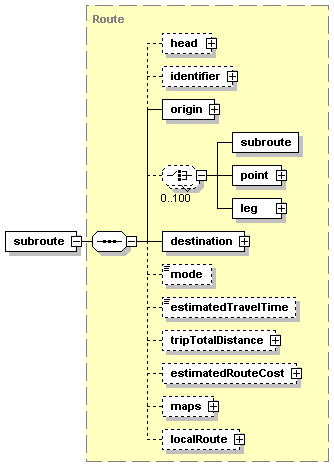

Route  NameSuffix
RouteOrLocation  NumericString

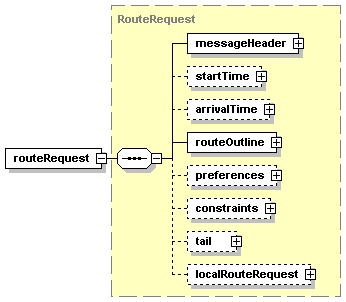

RouteRequest  OctetStringOptions

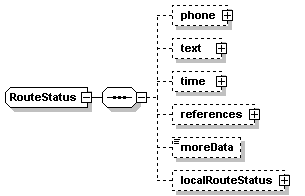

RouteStatus  OrderEntriesBy

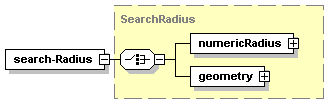

SearchRadius  ParkingSpaceKind

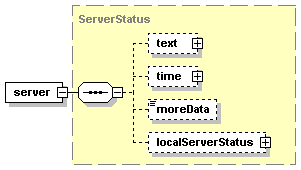

ServerStatus  ParkingTypes
Setting-ExtendedInformation  Percent

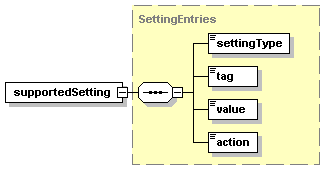

SettingEntries  Phone
StatusBlock  PhoneRole
SubscribeForm  PointRole
Tail  Pollution-AirQualityIndex
TimePair  Pollution-HydroCarbon
TimePriceInterval  Pollution-SmogAlert

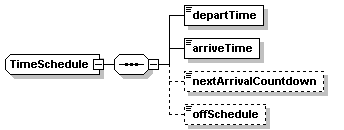

TimeSchedule  PreferredRoadType

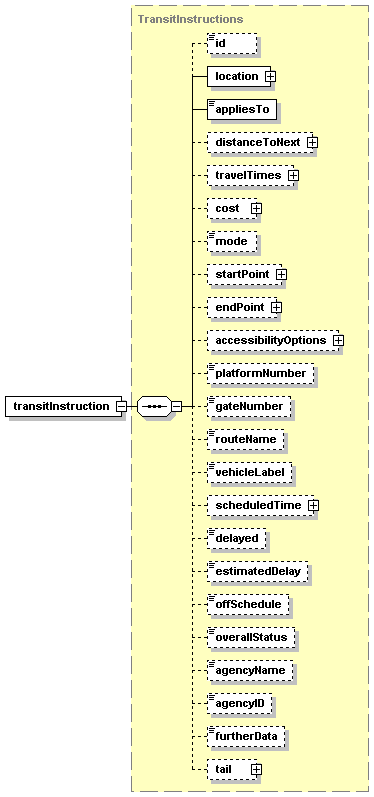

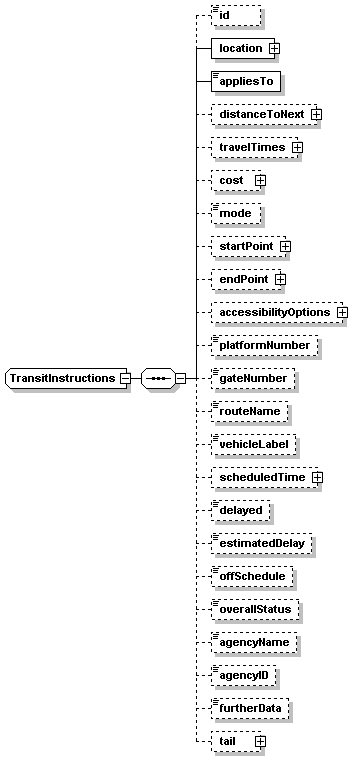

TransitInstructions  Price-DayType
TravelerBroadcastWrapper  ReplyVerbosity
TravelerDeviceSetting  RequestErrorType
TravelerSettingsReply  RestaurantSubType
TravelerSettingsRequest  RoadTypes
TravelTimes  RouteSelection
TripConstraints  RouteTypes

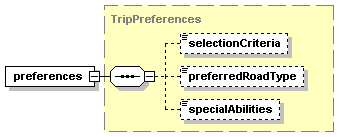

TripPreferences  SearchOperator
TypePreferencePair  SetAction
VehicleRestrictions  Setting-ExtendedInformation-string
VehiclesInvolved  Setting-Identity

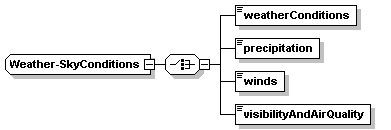

Weather-SkyConditions  Setting-PreferenceSubType

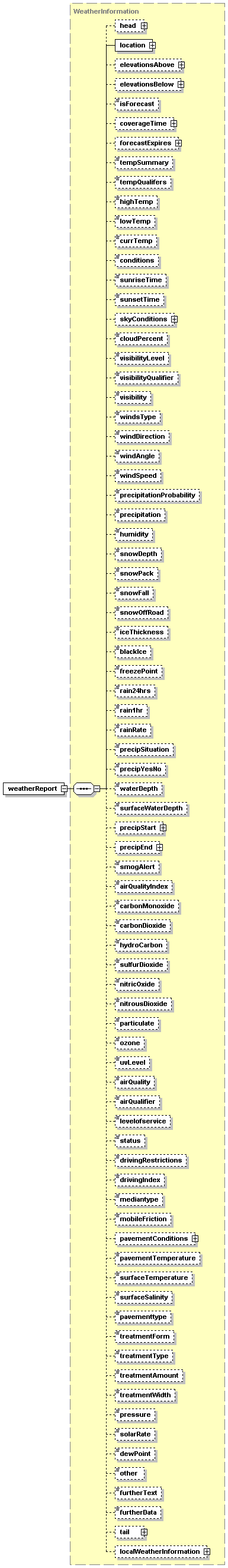

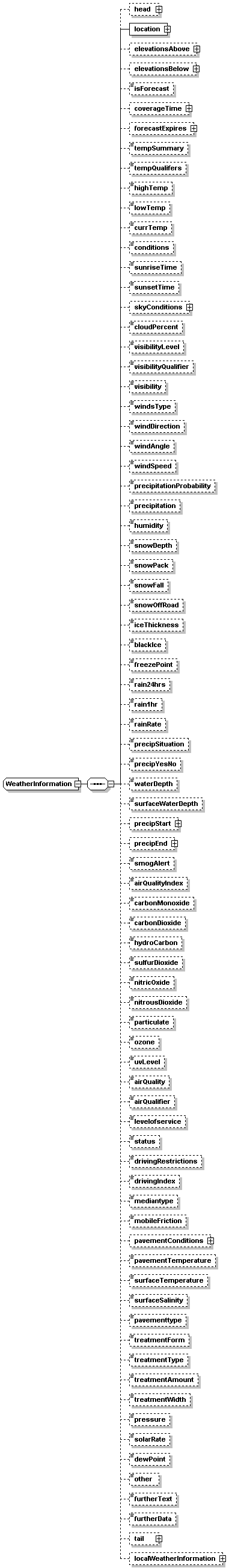

WeatherInformation  Setting-PreferenceType
SettingType
ShortDescription
SpecialAbilities
SplitReason
SubscribeType
SubType
Table
Time
TimeInterval
TimeOffset
TransitTypes
Traveler-Identity
Traveler-Setting
Trigger-Event
TurnType
Type
URL-Link
Vehicle-Color
Vehicle-Identity
VerticalType
WeatherTypes


schema location:  C:\Program Files\Mini-Edit\XMLSchemas\ATIS\tmdd.xsd
targetNamespace:  http://www.tmdd-address

Complex types  Simple types

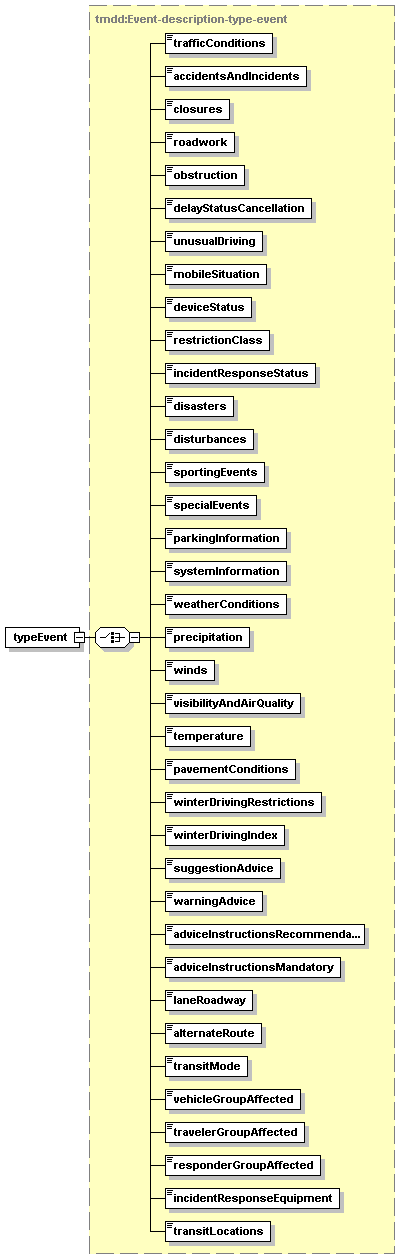

Event-description-type-event  binary
OctetString  Event-description-type-planned-roadway-closure
Event-description-type-special-event
Event-identifier
Event-incident-severity
Event-incident-status
Event-incident-vehicles-involved
Event-incident-vehicles-involved-count
Event-lanes-blocked-or-closed-count
Event-response-plan-text
Incident-Type
Link-capacity
Link-delay
Link-density
Link-jurisdiction
Link-lanes-minimum-number
Link-lanes-number-open
Link-length
Link-level-of-service
Link-median-type
Link-name
Link-occupancy
Link-other-text
Link-ownership
Link-pavement-type
Link-restriction-axle-count
Link-restriction-class
Link-restriction-height
Link-restriction-length
Link-restriction-weight
Link-restriction-weight-axle
Link-restriction-width
Link-road-number
Link-shoulder-width-left
Link-shoulder-width-right
Link-speed
Link-speed-limit
Link-status
Link-surface-condition
Link-travel-time
Link-truck-speed-limit
Message-number
Node-delay
Node-links-number
Node-name
Node-status
NumericString
OctetStringOptions
Organization-contact-center-identifier


schema location:  C:\Program Files\Mini-Edit\XMLSchemas\ATIS\ntcip.xsd
targetNamespace:  http://www.ntcip-address

Complex types  Simple types
OctetString  binary
ESS-other
EssAdjacentSnowDepth
EssAirTemperature
EssAtmosphericPressure
EssAvgWindDirection
EssAvgWindSpeed
EssCloudSituation
EssCO
EssCO2
EssDewpointTemp
EssIceThickness
EssMaxTemp
EssMinTemp
EssMobileFriction
EssNO
EssNO2
EssO3
EssPavementTemperature
EssPaveTreatmentAmount
EssPaveTreatmentWidth
EssPaveTreatProductForm
EssPaveTreatProductType
EssPM10
EssPrecipitation24Hours
EssPrecipitationOneHour
EssPrecipRate
EssPrecipSituation
EssPrecipYesNo
EssRelativeHumidity
EssRoadwaySnowDepth
EssRoadwaySnowPackDepth
EssSnowfallAccumRate
EssSO2
EssSolarRadiation
EssSurfaceBlackIceSignal
EssSurfaceFreezePoint
EssSurfaceSalinity
EssSurfaceTemperature
EssSurfaceWaterDepth
EssVisibility
EssWaterDepth
NumericString
OctetStringOptions


schema location:  C:\Program Files\Mini-Edit\XMLSchemas\ATIS\tcip.xsd
targetNamespace:  http://www.tcip-address

Complex types  Simple types
OctetString  binary
CPT-StopPointDescription
CPT-StopPointID
CPT-StopPointName
NumericString
OctetStringOptions
PI-ADAAccess
PI-Amenity-Type
PI-AmenityID
PI-AmenityName
PI-AmenityStatus
PI-MarkerType
PI-NextArrivalCountdown
PI-OffSchedule
PI-ParkingAvailability
PI-ParkingFacID
PI-ParkingProvided
PI-ParkingRates
PI-ParkingSpacesTotal
PI-ParkingType
PI-ParkingVehicleClass
PI-WalkingDirections


schema location:  C:\Program Files\Mini-Edit\XMLSchemas\ATIS\im.xsd
targetNamespace:  http://www.im-address

Complex types  Simple types
InjuryCounts  binary

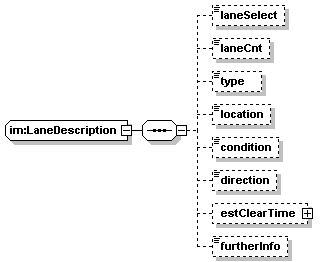

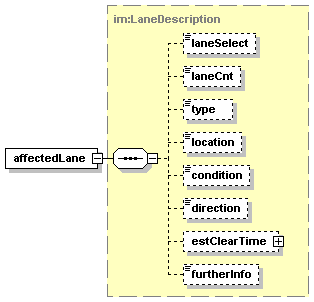

LaneDescription  FreeText
OctetString  NumericString
Pedigree-list  OctetStringOptions
Urgency


schema location:  C:\Program Files\Mini-Edit\XMLSchemas\ATIS\dsrc.xsd
targetNamespace:  http://www.dsrc-address

Complex types  Simple types
OctetString  binary
LanguageCode
NumericString
OctetStringOptions


schema location:  C:\Program Files\Mini-Edit\XMLSchemas\ATIS\itis.xsd
targetNamespace:  http://www.itis-address

Complex types  Simple types
ITIScodesAndText  AccidentsAndIncidents
AdviceInstructionsMandatory
AdviceInstructionsRecommendations
AlternateRoute
AssetStatus
Closures
CompassDirection
DelayStatusCancellation
DeviceStatus
Disasters
Disturbances
GenericLocations
IncidentResponseEquipment
IncidentResponseStatus
ITIScodes
ITISText
LaneRoadway
MobileSituation
Obstruction
ParkingInformation
PavementConditions
Precipitation
Qualifiers
ResponderGroupAffected
RestrictionClass
RoadsideAssets
Roadwork
SpecialEvents
SportingEvents
SuggestionAdvice
SystemInformation
Temperature
TrafficConditions
TransitLocations
TransitMode
TravelDirection
TravelerGroupAffected
Units
UnusualDriving
UVLevel
VehicleGroupAffected
VisibilityAndAirQuality
WarningAdvice
WeatherConditions
Winds
WinterDrivingIndex
WinterDrivingRestrictions


schema location:  C:\Program Files\Mini-Edit\XMLSchemas\ATIS\lrms.xsd
targetNamespace:  http://www.lrms-address

Complex types  Simple types

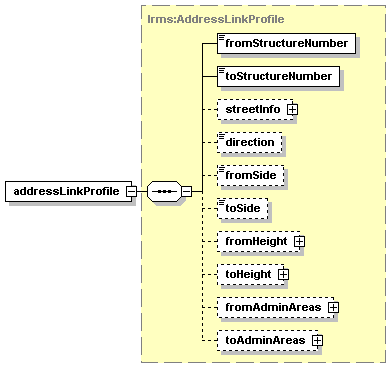

AddressLinkProfile  AlertCCountryCode

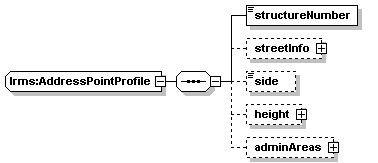

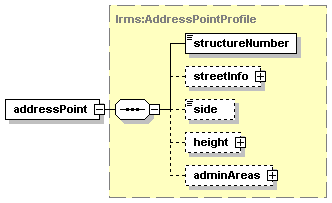

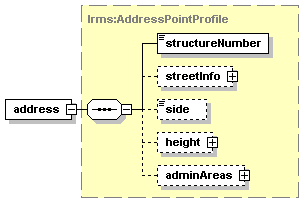

AddressPointProfile  ChainOffset
AddressProfile  CountryCode

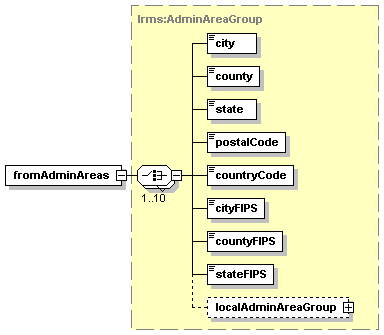

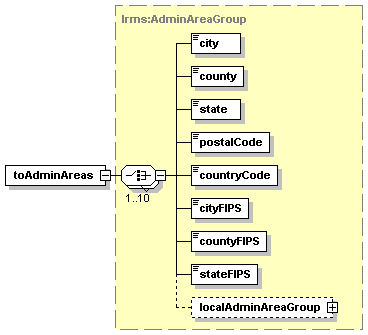

AdminAreaGroup  Direction

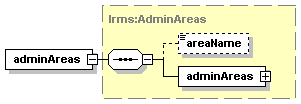

AdminAreas  GridAltitude

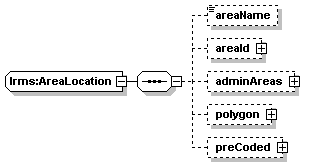

Angle  GridAltitudeDelta

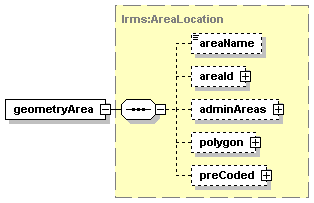

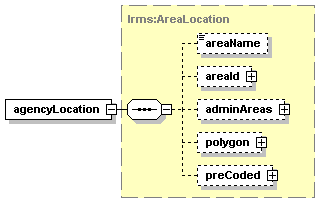

AreaLocation  GridId

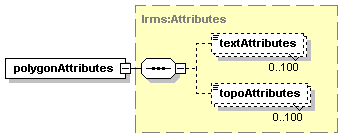

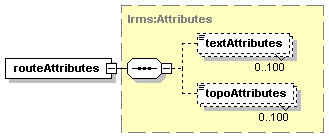

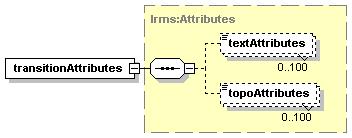

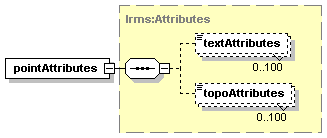

Attributes  GridLatitude

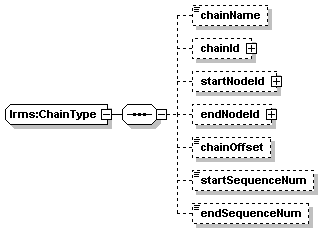

ChainType  GridLatLonPointDelta

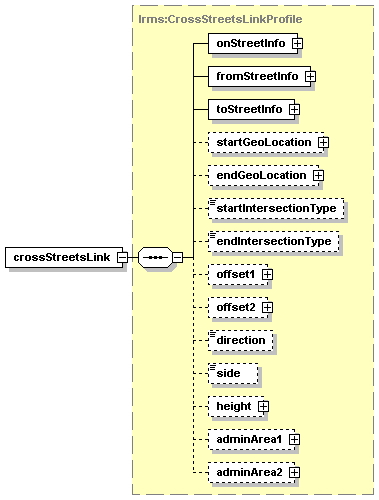

CrossStreetsLinkProfile  GridLongitude

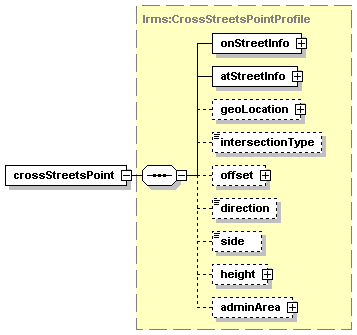

CrossStreetsPointProfile  GridPointAltitudeDelta

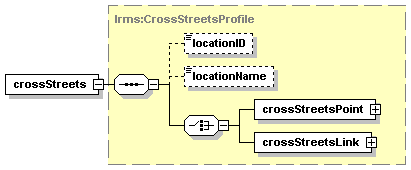

CrossStreetsProfile  GridPointCoordinateType

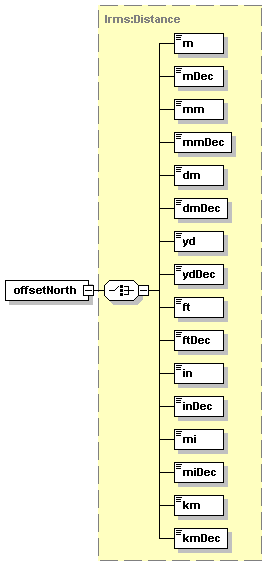

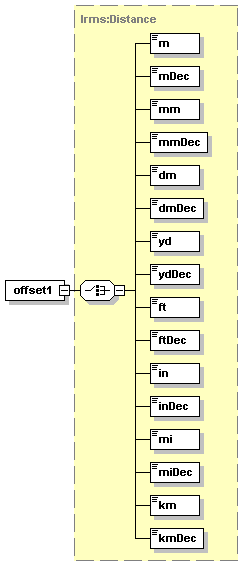

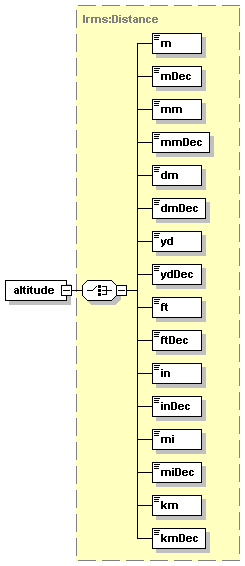

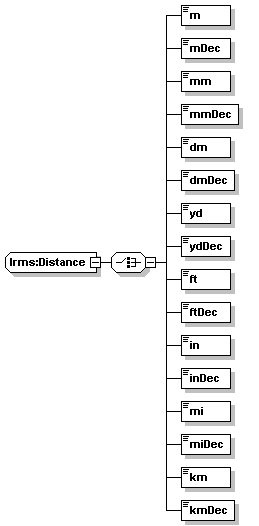

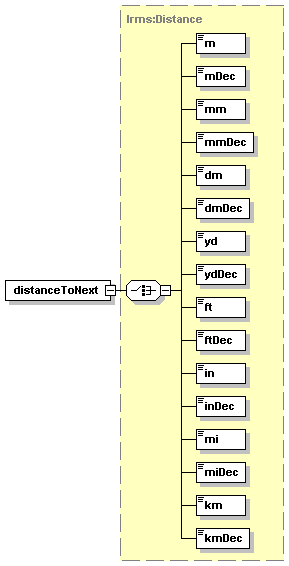

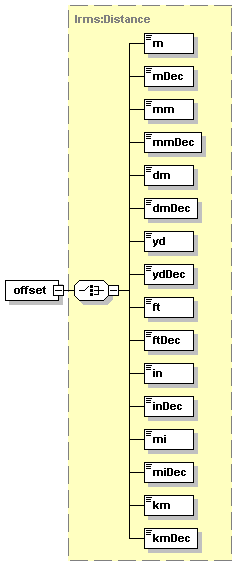

Distance  GridPointLatitude

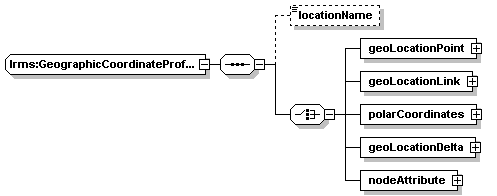

GeographicCoordinateProfile  GridPointLatLonDelta

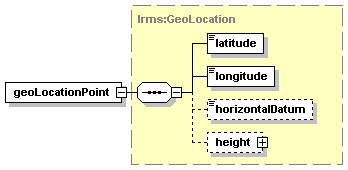

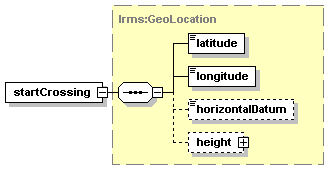

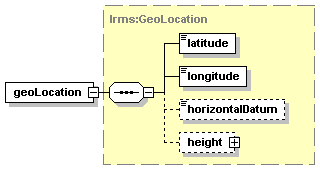

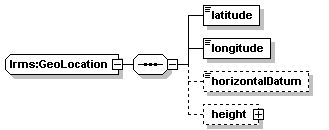

GeoLocation  GridPointLongitude
GeoLocationDelta  GridPointOffsetDistance

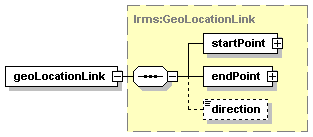

GeoLocationLink  GridPointPairCoordinateType

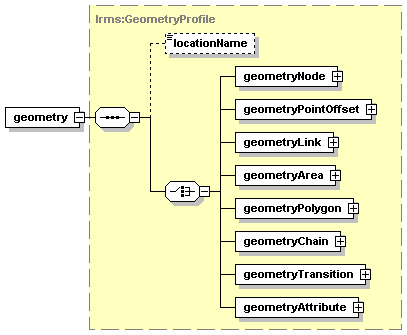

GeometryProfile  GridPointPairCoordinateType-item
GridArray  GridZoom

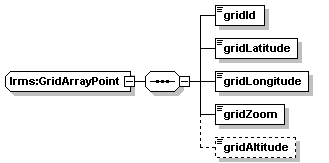

GridArrayPoint  HorizontalDatum
GridPoint  Int-index12

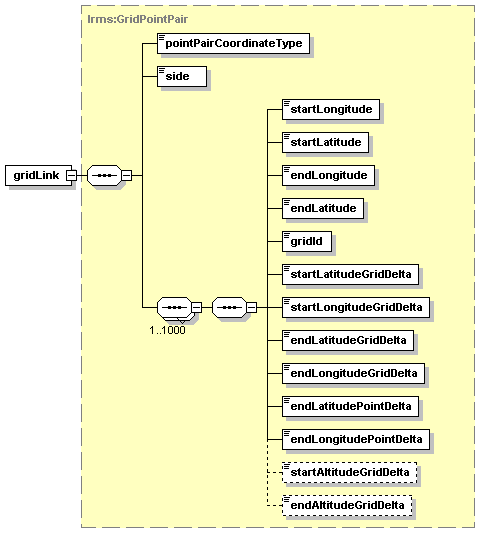

GridPointPair  Int-index16

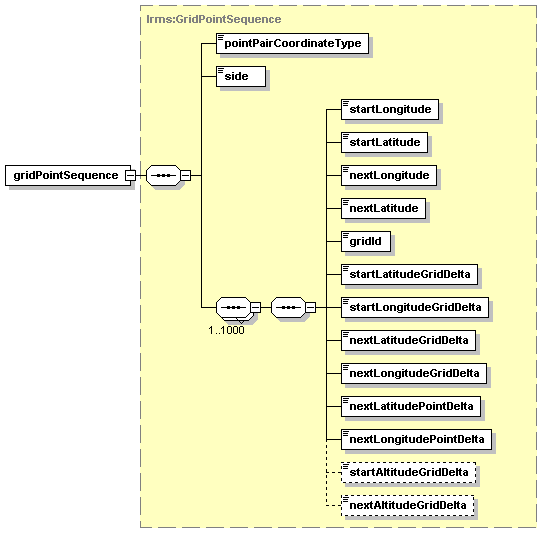

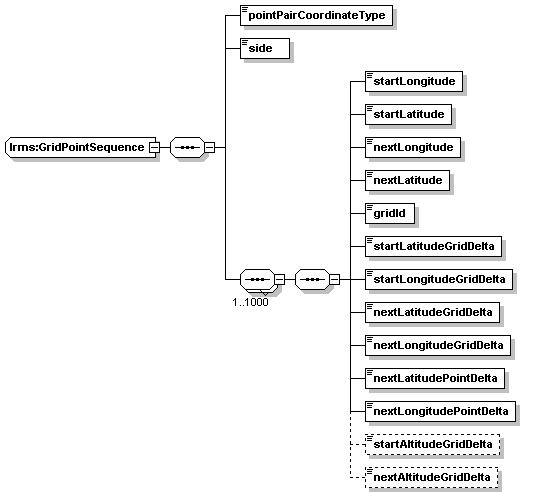

GridPointSequence  Int-index32
GridProfile  Int-index8
GroupLocation  Int-latitude32

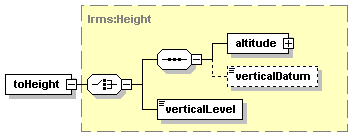

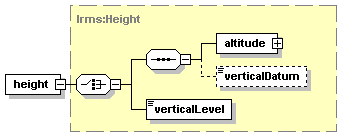

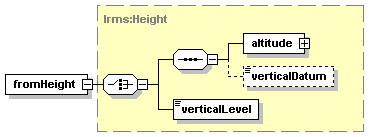

Height  Int-loccode16
IdType  Int-loctable8

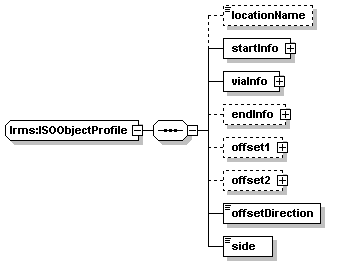

ISOObjectProfile  Int-longitude32

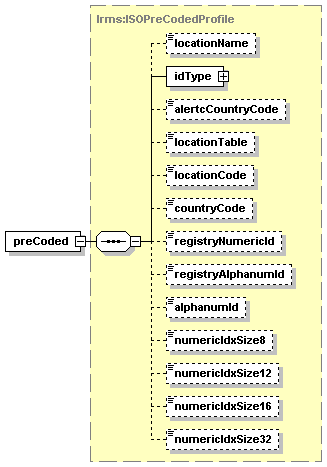

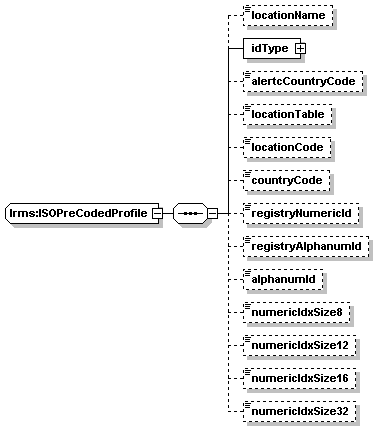

ISOPreCodedProfile  IntersectionType
LinearReferenceLinkProfile  Latitude

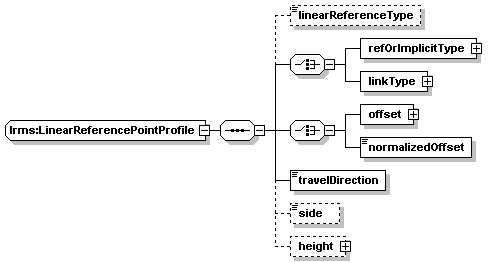

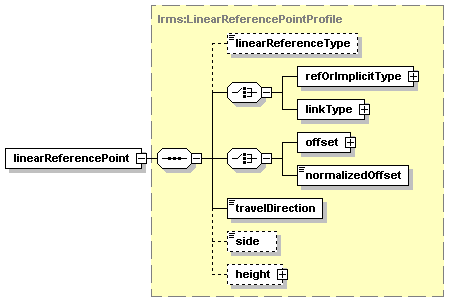

LinearReferencePointProfile  LinearReferenceType

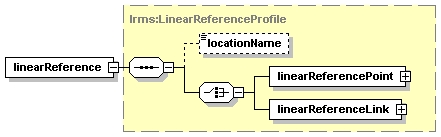

LinearReferenceProfile  LocationCode
LinkGeneral  LocationTable

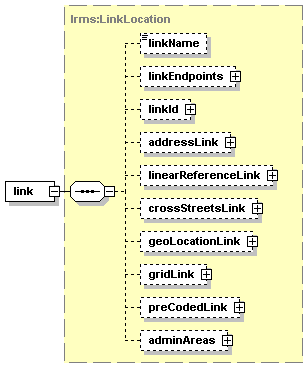

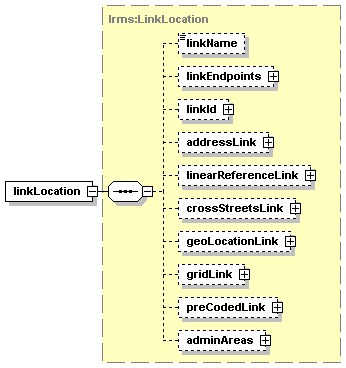

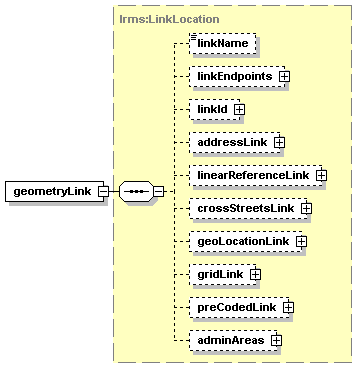

LinkLocation  Longitude

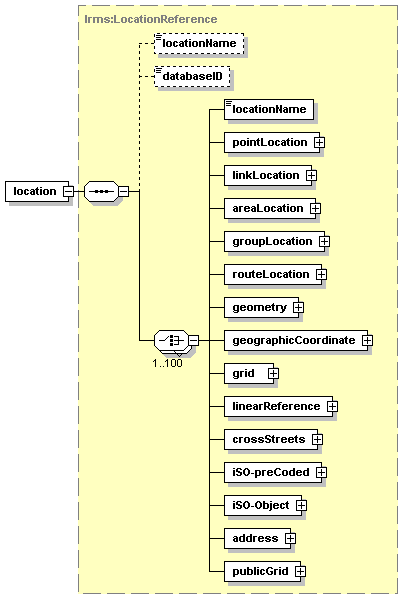

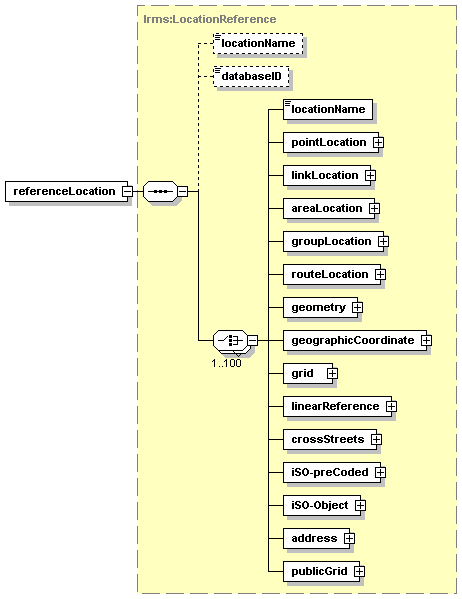

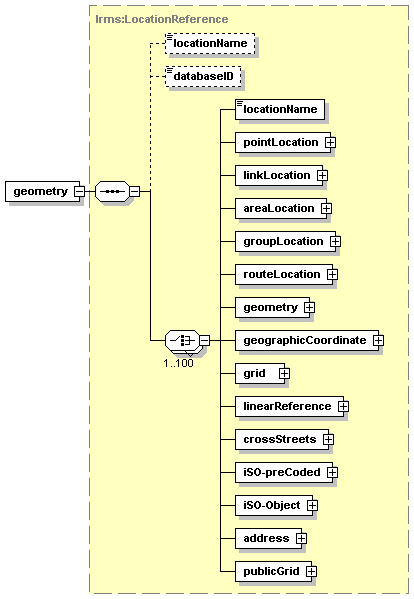

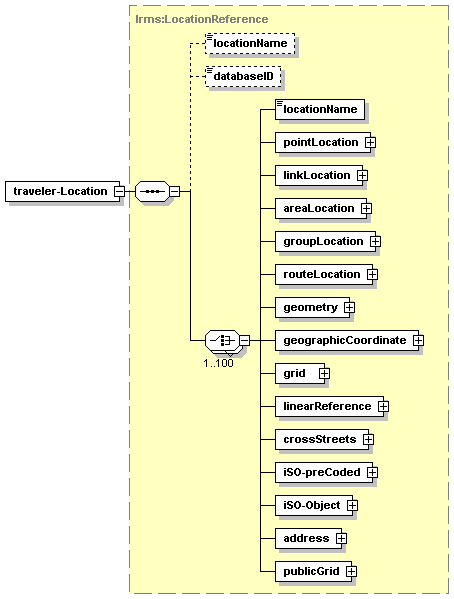

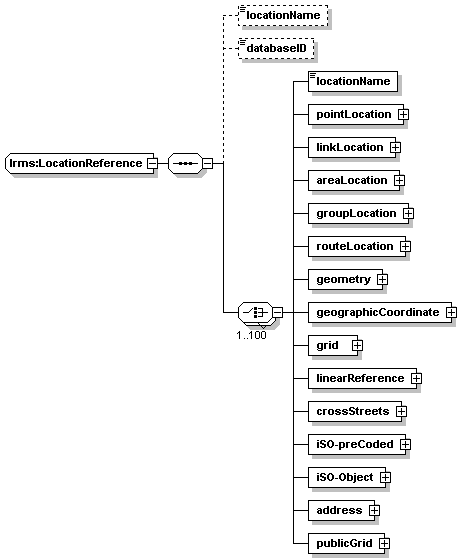

LocationReference  NodeOrigin

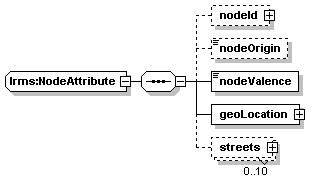

NodeAttribute  NodeValence

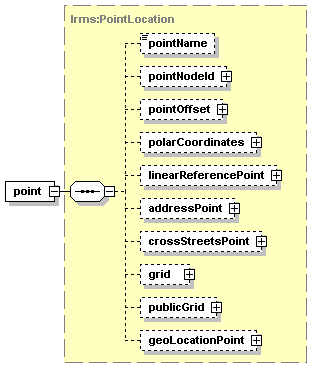

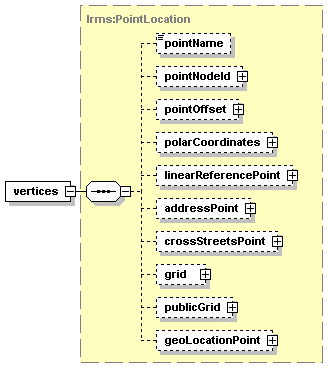

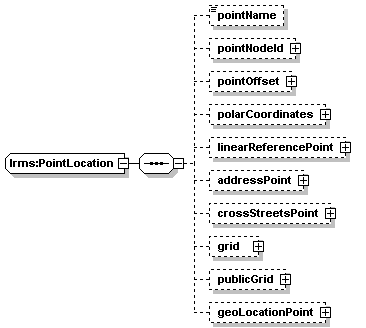

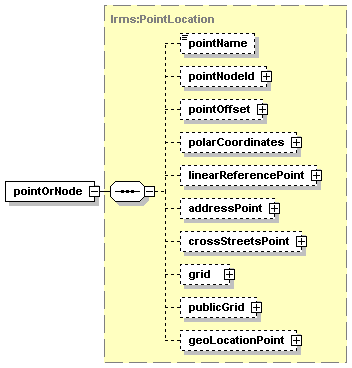

PointLocation  NormalizedOffset

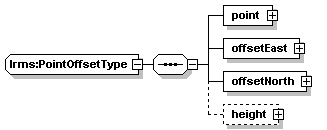

PointOffsetType  NumericIDXSize12

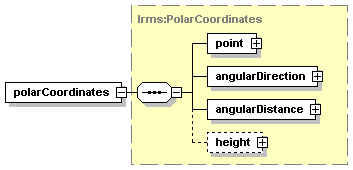

PolarCoordinates  NumericIDXSize16

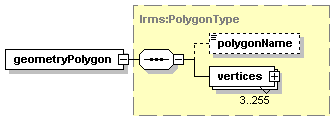

PolygonType  NumericIDXSize32
PublicGridLocalReference  NumericIDXSize8

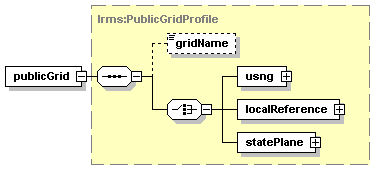

PublicGridProfile  PostalCode

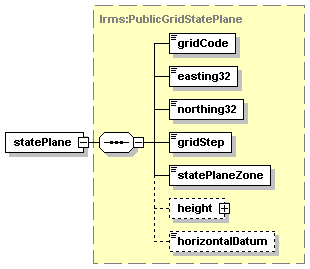

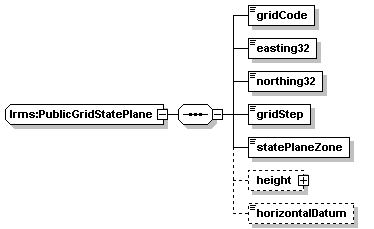

PublicGridStatePlane  PreCodedIdType

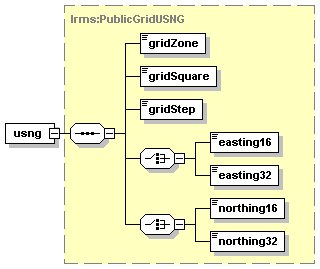

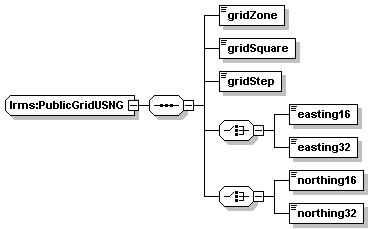

PublicGridUSNG  PublicGridEasting16

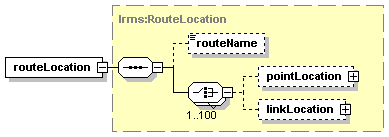

RouteLocation  PublicGridEasting32
SpatialObject  PublicGridEastWestDelta

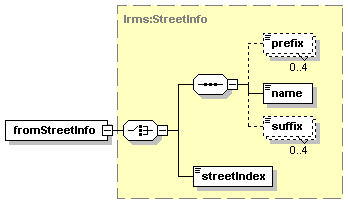

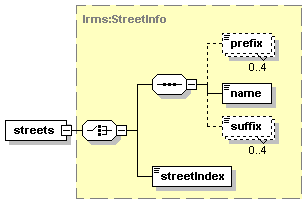

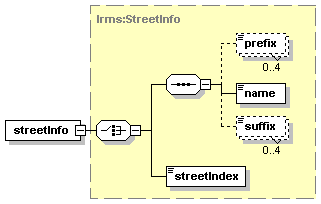

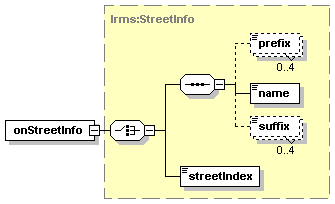

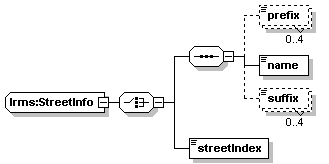

StreetInfo  PublicGridGridCellId

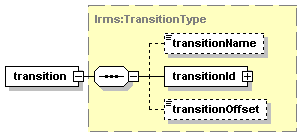

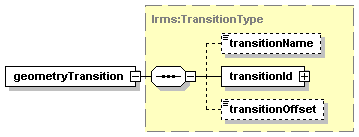

TransitionType  PublicGridGridCellIdAlpha
PublicGridGridCode
PublicGridGridSquare
PublicGridGridStep
PublicGridGridZone
PublicGridNorthing16
PublicGridNorthing32
PublicGridNorthSouthDelta
PublicGridStatePlaneZone
SequenceNum
Side
String-index64
Text-name-presuf4
Text-name255
VerticalDatum
VerticalLevel


schema location:  C:\Program Files\Mini-Edit\XMLSchemas\ATIS\local.xsd
targetNamespace:  http://www.local-address

Complex types  Simple types

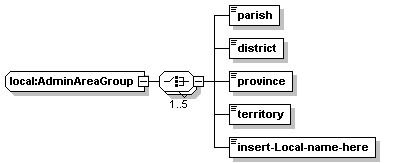

AdminAreaGroup  LocalAccidentsAndIncidents
AirlineTravelInformation  LocalAdviceInstructionMandatory
EventInformation  LocalAdviceInstructionRecommendations
IncidentInformation  LocalAlternateRoute
InformationRequest  LocalAssetStatus
InformationRequestType  LocalClosures
Itinerary  LocalDelayStatusCancellation
LinkTrafficInformation  LocalDeviceStatus
ManeuverInstruction  LocalDisasters
ManeuverInstruction2  LocalDisturbances
ParkingLotInformation  LocalGenericLocations
RequestStatus  LocalIncidentResponseEquipment
ResponseGroup  LocalIncidentResponseStatus
Route  LocalLaneRoadway
RouteError  LocalMobileSituation
RouteRequest  LocalObstruction
RouteStatus  LocalParkingInformation
ServerError  LocalPavementConditions
ServerStatus  LocalPrecipitation
StatusBlock  LocalQualifiers
SubscribeError  LocalResponderGroupAffected
TravelerSettingsReply  LocalRestrictionClass
TravelerSettingsRequest  LocalRoadsideAssets
WeatherInformation  LocalRoadwork
LocalSpecialEvents
LocalSportingEvents
LocalSuggestionAdvice
LocalSystemInformation
LocalTemperature
LocalTrafficConditions
LocalTransitMode
LocalTravelerGroupAffected
LocalUnits
LocalUnusualDriving
LocalVehicleGroupAffected
LocalVisibilityAndAirQuality
LocalWarningAdvice
LocalWeatherConditions
LocalWinds
LocalWinterDrivingIndex
LocalWinterDrivingRestrictions


element advisoryInformation
diagram
namespace http://www.atis-address
type AdvisoryInformation
children messageHeader responseGroups statusBlocks
source
<xs:element name="advisoryInformation" type="AdvisoryInformation"/>

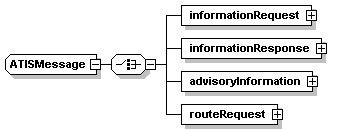

element atisMessage
diagram
namespace http://www.atis-address
type ATISMessage
children informationRequest informationResponse advisoryInformation routeRequest
source
<xs:element name="atisMessage" type="ATISMessage"/>

element directoryAdvancedRequest
diagram
namespace http://www.atis-address
type DirectoryAdvancedRequest
children messageHeader traveler-Identity traveler-Location typePair search-Radius limitEntriesReturned start end locationType tail
source
<xs:element name="directoryAdvancedRequest" type="DirectoryAdvancedRequest"/>

element directoryAppointmentReply
diagram
namespace http://www.atis-address
type DirectoryAppointmentReply
children traveler-Identity directoryEntry-Identity appointmentTime coinfirm confirmationNumber furtherData
source
<xs:element name="directoryAppointmentReply" type="DirectoryAppointmentReply"/>

element directoryAppointmentRequest
diagram
namespace http://www.atis-address
type DirectoryAppointmentRequest
children traveler-Identity directoryEntry-Identity appointmentTime
source
<xs:element name="directoryAppointmentRequest" type="DirectoryAppointmentRequest"/>

element directoryDetailReply
diagram
namespace http://www.atis-address
type DirectoryDetailReply
children identity location typePair name phones handicapAccess businessHours description cost costInfo agencyType foodType otherData tail furtherData
source
<xs:element name="directoryDetailReply" type="DirectoryDetailReply"/>

element directoryDetailRequest
diagram
namespace http://www.atis-address
type DirectoryDetailRequest
children identity locationType
source
<xs:element name="directoryDetailRequest" type="DirectoryDetailRequest"/>

element directoryExtendedInformationEntry
diagram
namespace http://www.atis-address
type DirectoryExtendedInformationEntry
children identity type information
source
<xs:element name="directoryExtendedInformationEntry" type="DirectoryExtendedInformationEntry"/>

element directoryExtendedInformationReply
diagram
namespace http://www.atis-address
type DirectoryExtendedInformationReply
children directoryExtendedInformationReply-item
source
<xs:element name="directoryExtendedInformationReply" type="DirectoryExtendedInformationReply"/>

element directoryExtendedInformationRequest
diagram
namespace http://www.atis-address
type DirectoryExtendedInformationRequest
children identity extendedInfoType
source
<xs:element name="directoryExtendedInformationRequest" type="DirectoryExtendedInformationRequest"/>

element directoryExtendedRequest
diagram
namespace http://www.atis-address
type DirectoryExtendedRequest
children identity location search-Radius returnedLimit typePair keywordPair constrainByProfile orderEntriesBy start end locationType
source
<xs:element name="directoryExtendedRequest" type="DirectoryExtendedRequest"/>

element directoryInformation
diagram
namespace http://www.atis-address
type DirectoryInformation
children directoryInformation-item
source
<xs:element name="directoryInformation" type="DirectoryInformation"/>

element directoryNameRequest
diagram
namespace http://www.atis-address
type DirectoryNameRequest
children basicRequest directoryEntry-Name start end locationType
source
<xs:element name="directoryNameRequest" type="DirectoryNameRequest"/>

element directoryRequest
diagram
namespace http://www.atis-address
type DirectoryRequest
children coreRequest start end
source
<xs:element name="directoryRequest" type="DirectoryRequest"/>

element informationRequest
diagram
namespace http://www.atis-address
type InformationRequest
children messageHeader returnAddress filter eventIDs subscription parkingRequest verbosity language tail localInformationRequest
source
<xs:element name="informationRequest" type="InformationRequest"/>

element informationResponse
diagram
namespace http://www.atis-address
type InformationResponse
children messageHeader responseGroups statusBlocks
source
<xs:element name="informationResponse" type="InformationResponse"/>

element parkingSpaceReply
diagram
namespace http://www.atis-address
type ParkingSpaceReply
children messageHeader parkingFacID parkingRates confirm
source
<xs:element name="parkingSpaceReply" type="ParkingSpaceReply"/>

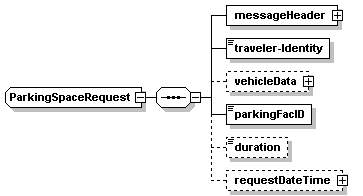

element parkingSpaceRequest
diagram
namespace http://www.atis-address
type ParkingSpaceRequest
children messageHeader traveler-Identity vehicleData parkingFacID duration requestDateTime
source
<xs:element name="parkingSpaceRequest" type="ParkingSpaceRequest"/>

element routeRequest
diagram
namespace http://www.atis-address
type RouteRequest
children messageHeader startTime arrivalTime routeOutline preferences constraints tail localRouteRequest
source
<xs:element name="routeRequest" type="RouteRequest"/>

element travelerBroadcastWrapper
diagram
namespace http://www.atis-address
type TravelerBroadcastWrapper
children travelerBroadcastWrapper-item
source
<xs:element name="travelerBroadcastWrapper" type="TravelerBroadcastWrapper"/>

element travelerDeviceSetting
diagram
namespace http://www.atis-address
type TravelerDeviceSetting
children traveler-Identity traveler-Setting setting-Identity device-Setting device-TransferSpeed
source
<xs:element name="travelerDeviceSetting" type="TravelerDeviceSetting"/>

element travelerSettingsReply
diagram
namespace http://www.atis-address
type TravelerSettingsReply
children messageHeader travelerInfo settings supportedSettings policies localTravelerSettingsReply
source
<xs:element name="travelerSettingsReply" type="TravelerSettingsReply"/>

element travelerSettingsRequest
diagram
namespace http://www.atis-address
type TravelerSettingsRequest
children messageHeader travelerInfo userData requestAll requestTypes requestPolicies settings localTravelerSettingsRequest
source
<xs:element name="travelerSettingsRequest" type="TravelerSettingsRequest"/>

complexType AdvisoryInformation
diagram
namespace http://www.atis-address
children messageHeader responseGroups statusBlocks
used by
elements advisoryInformation ATISMessage/advisoryInformation
source
<xs:complexType name="AdvisoryInformation">
  <xs:sequence>
    <xs:element name="messageHeader" type="MessageHeader"/>
    <xs:element name="responseGroups" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="responseGroup" type="ResponseGroup"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="statusBlocks" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="statusBlock" type="StatusBlock"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element AdvisoryInformation/messageHeader
diagram
type MessageHeader
children sender messageID responseTo timeStamp revision
source
<xs:element name="messageHeader" type="MessageHeader"/>

element AdvisoryInformation/responseGroups
diagram
children responseGroup
source
<xs:element name="responseGroups" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="responseGroup" type="ResponseGroup"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element AdvisoryInformation/responseGroups/responseGroup
diagram
type ResponseGroup
children head coverageArea weatherReports links incidents events flights routes itineraries detours detourItineraries parkingLots furtherData tail localResponseGroup
source
<xs:element name="responseGroup" type="ResponseGroup"/>

element AdvisoryInformation/statusBlocks
diagram
children statusBlock
source
<xs:element name="statusBlocks" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="statusBlock" type="StatusBlock"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element AdvisoryInformation/statusBlocks/statusBlock
diagram
type StatusBlock

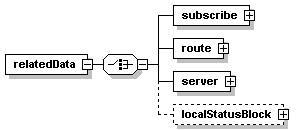

children level code text relatedData furtherInfo
source
<xs:element name="statusBlock" type="StatusBlock"/>

complexType AirlineTravelInformation
diagram
namespace http://www.atis-address
children head location isForecast coverageTime forecastExpires serviceName originAirport destinationAirport departTimeScheduled arriveTimeScheduled offSchedule departureConcourse arrivalConcourse departureGate arrivalGate generalGate baggageClaim overallStatus timeValue furtherData tail localAirlineTravelInformation
used by
element ResponseGroup/flights/flight
source
<xs:complexType name="AirlineTravelInformation">
  <xs:sequence>
    <xs:element name="head" type="Head" minOccurs="0"/>
    <xs:element name="location" type="lrms:LocationReference"/>
    <xs:element name="isForecast" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:boolean"/>
      </xs:simpleType>
    </xs:element>
    <xs:element name="coverageTime" type="ComplexTime" minOccurs="0"/>
    <xs:element name="forecastExpires" type="DateTimePair" minOccurs="0"/>
    <xs:element name="serviceName" type="Name"/>
    <xs:element name="originAirport" type="AirportCode" minOccurs="0"/>
    <xs:element name="destinationAirport" type="AirportCode" minOccurs="0"/>
    <xs:element name="departTimeScheduled" type="DateTimePair" minOccurs="0"/>
    <xs:element name="arriveTimeScheduled" type="DateTimePair" minOccurs="0"/>
    <xs:element name="offSchedule" type="tcip:PI-OffSchedule" minOccurs="0"/>
    <xs:element name="departureConcourse" type="Flight-GateNumber" minOccurs="0"/>
    <xs:element name="arrivalConcourse" type="Flight-GateNumber" minOccurs="0"/>
    <xs:element name="departureGate" type="Flight-GateNumber" minOccurs="0"/>
    <xs:element name="arrivalGate" type="Flight-GateNumber" minOccurs="0"/>
    <xs:element name="generalGate" type="Flight-GateNumber" minOccurs="0"/>
    <xs:element name="baggageClaim" type="Flight-GateNumber" minOccurs="0"/>
    <xs:element name="overallStatus" type="itis:DelayStatusCancellation" minOccurs="0"/>
    <xs:element name="timeValue" type="TimeInterval" minOccurs="0"/>
    <xs:element name="furtherData" type="URL-Link" minOccurs="0"/>
    <xs:element name="tail" type="Tail" minOccurs="0"/>
    <xs:element name="localAirlineTravelInformation" type="local:AirlineTravelInformation" minOccurs="0"/>
    <!-- location for which this applies -->
    <!-- forecast or predicted period -->
    <!-- flight or service name -->
    <!-- optional when the origin is known,  such
         as an all departing flight sign board -->
    <!-- used only when needed in large airports
         with overlapping gate mumbering systems -->
    <!-- use with commuter flights when multiple
         flights all leave from the same gate/area -->
    <!-- use "Regular service" when conditions are normal -->
    <!-- if status is a type of delay this provides
         the current estimate of time,  if travel time
         is used in the ITIS codes this provides a
         trip duration  (units are minutes in all uses) -->
    <!-- linkages to related event messages such as
         weather would be inserted in the references
         of the header section -->
  </xs:sequence>
</xs:complexType>

element AirlineTravelInformation/head
diagram
type Head
children id references pedigree language charSet table issuingAgency updateTime expiryTime onExpiry confidence urgency
source
<xs:element name="head" type="Head" minOccurs="0"/>

element AirlineTravelInformation/location
diagram
type lrms:LocationReference
children locationName databaseID locationName pointLocation linkLocation areaLocation groupLocation routeLocation geometry geographicCoordinate grid linearReference crossStreets iSO-preCoded iSO-Object address publicGrid
attributes
Name  Type  Use  Default  Fixed  Annotation
locationID  String-index64
source
<xs:element name="location" type="lrms:LocationReference"/>

element AirlineTravelInformation/isForecast
diagram
type restriction of xs:boolean
source
<xs:element name="isForecast" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:boolean"/>
  </xs:simpleType>
</xs:element>

element AirlineTravelInformation/coverageTime
diagram
type ComplexTime
children start end weekly occurrences furtherData
source
<xs:element name="coverageTime" type="ComplexTime" minOccurs="0"/>

element AirlineTravelInformation/forecastExpires
diagram
type DateTimePair
children date time offset
source
<xs:element name="forecastExpires" type="DateTimePair" minOccurs="0"/>

element AirlineTravelInformation/serviceName
diagram
type Name
facets
minLength 1
maxLength 30
source
<xs:element name="serviceName" type="Name"/>

element AirlineTravelInformation/originAirport
diagram
type AirportCode
facets
length 3
source
<xs:element name="originAirport" type="AirportCode" minOccurs="0"/>

element AirlineTravelInformation/destinationAirport
diagram
type AirportCode
facets
length 3
source
<xs:element name="destinationAirport" type="AirportCode" minOccurs="0"/>

element AirlineTravelInformation/departTimeScheduled
diagram
type DateTimePair
children date time offset
source
<xs:element name="departTimeScheduled" type="DateTimePair" minOccurs="0"/>

element AirlineTravelInformation/arriveTimeScheduled
diagram
type DateTimePair
children date time offset
source
<xs:element name="arriveTimeScheduled" type="DateTimePair" minOccurs="0"/>

element AirlineTravelInformation/offSchedule
diagram
type tcip:PI-OffSchedule
facets
minInclusive -2000000
maxInclusive 2000000
source
<xs:element name="offSchedule" type="tcip:PI-OffSchedule" minOccurs="0"/>

element AirlineTravelInformation/departureConcourse
diagram
type Flight-GateNumber
facets
minLength 1
maxLength 6
source
<xs:element name="departureConcourse" type="Flight-GateNumber" minOccurs="0"/>

element AirlineTravelInformation/arrivalConcourse
diagram
type Flight-GateNumber
facets
minLength 1
maxLength 6
source
<xs:element name="arrivalConcourse" type="Flight-GateNumber" minOccurs="0"/>

element AirlineTravelInformation/departureGate
diagram
type Flight-GateNumber
facets
minLength 1
maxLength 6
source
<xs:element name="departureGate" type="Flight-GateNumber" minOccurs="0"/>

element AirlineTravelInformation/arrivalGate
diagram
type Flight-GateNumber
facets
minLength 1
maxLength 6
source
<xs:element name="arrivalGate" type="Flight-GateNumber" minOccurs="0"/>

element AirlineTravelInformation/generalGate
diagram
type Flight-GateNumber
facets
minLength 1
maxLength 6
source
<xs:element name="generalGate" type="Flight-GateNumber" minOccurs="0"/>

element AirlineTravelInformation/baggageClaim
diagram
type Flight-GateNumber
facets
minLength 1
maxLength 6
source
<xs:element name="baggageClaim" type="Flight-GateNumber" minOccurs="0"/>

element AirlineTravelInformation/overallStatus
diagram
type itis:DelayStatusCancellation
source
<xs:element name="overallStatus" type="itis:DelayStatusCancellation" minOccurs="0"/>

element AirlineTravelInformation/timeValue
diagram
type TimeInterval
source
<xs:element name="timeValue" type="TimeInterval" minOccurs="0"/>

element AirlineTravelInformation/furtherData
diagram
type URL-Link
facets
minLength 1
maxLength 255
source
<xs:element name="furtherData" type="URL-Link" minOccurs="0"/>

element AirlineTravelInformation/tail
diagram
type Tail
children entry
source
<xs:element name="tail" type="Tail" minOccurs="0"/>

element AirlineTravelInformation/localAirlineTravelInformation
diagram
type local:AirlineTravelInformation
children insert-local-information-elements-here
source
<xs:element name="localAirlineTravelInformation" type="local:AirlineTravelInformation" minOccurs="0"/>

complexType Amenity
diagram
namespace http://www.atis-address
children amenityID amenity-Type name status
source
<xs:complexType name="Amenity">
  <xs:sequence>
    <xs:element name="amenityID" type="tcip:PI-AmenityID" minOccurs="0"/>
    <xs:element name="amenity-Type" type="tcip:PI-Amenity-Type"/>
    <xs:element name="name" type="tcip:PI-AmenityName" minOccurs="0"/>
    <xs:element name="status" type="tcip:PI-AmenityStatus" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element Amenity/amenityID
diagram
type tcip:PI-AmenityID
source
<xs:element name="amenityID" type="tcip:PI-AmenityID" minOccurs="0"/>

element Amenity/amenity-Type
diagram
type tcip:PI-Amenity-Type
facets
minLength 1
maxLength 30
source
<xs:element name="amenity-Type" type="tcip:PI-Amenity-Type"/>

element Amenity/name
diagram
type tcip:PI-AmenityName
facets
minLength 1
maxLength 30
source
<xs:element name="name" type="tcip:PI-AmenityName" minOccurs="0"/>

element Amenity/status
diagram
type tcip:PI-AmenityStatus
source
<xs:element name="status" type="tcip:PI-AmenityStatus" minOccurs="0"/>

complexType ATISMessage
diagram
namespace http://www.atis-address
children informationRequest informationResponse advisoryInformation routeRequest
used by
element atisMessage
source
<xs:complexType name="ATISMessage">
  <xs:choice>
    <xs:element name="informationRequest" type="InformationRequest"/>
    <xs:element name="informationResponse" type="InformationResponse"/>
    <xs:element name="advisoryInformation" type="AdvisoryInformation"/>
    <xs:element name="routeRequest" type="RouteRequest"/>
    <!-- systemStatusRequest    SystemStatusRequest,
         systemStatusResponse   SystemStatusReponse, -->
  </xs:choice>
</xs:complexType>

element ATISMessage/informationRequest
diagram
type InformationRequest
children messageHeader returnAddress filter eventIDs subscription parkingRequest verbosity language tail localInformationRequest
source
<xs:element name="informationRequest" type="InformationRequest"/>

element ATISMessage/informationResponse
diagram
type InformationResponse
children messageHeader responseGroups statusBlocks
source
<xs:element name="informationResponse" type="InformationResponse"/>

element ATISMessage/advisoryInformation
diagram
type AdvisoryInformation
children messageHeader responseGroups statusBlocks
source
<xs:element name="advisoryInformation" type="AdvisoryInformation"/>

element ATISMessage/routeRequest
diagram
type RouteRequest
children messageHeader startTime arrivalTime routeOutline preferences constraints tail localRouteRequest
source
<xs:element name="routeRequest" type="RouteRequest"/>

complexType ComplexTime
diagram
namespace http://www.atis-address
children start end weekly occurrences furtherData
used by
elements AirlineTravelInformation/coverageTime EventInformation/coverageTime IncidentInformation/coverageTime LinkTrafficInformation/coverageTime ParkingLotInformation/coverageTime WeatherInformation/coverageTime EventInformation/repeatTimes
source
<xs:complexType name="ComplexTime">
  <xs:sequence>
    <xs:element name="start" type="DateTimePair" minOccurs="0"/>
    <xs:element name="end" type="DateTimePair" minOccurs="0"/>
    <xs:element name="weekly" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="8">
          <xs:element name="weekly-item">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="day" type="Day-of-week"/>
                <xs:element name="times" type="TimePair"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="occurrences" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="32">
          <xs:element name="occurrence">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="date" type="Date"/>
                <xs:element name="times" type="TimePair" minOccurs="0"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="furtherData" type="URL-Link" minOccurs="0"/>
    <!-- the time when the entire item begins -->
    <!-- the time when the entire item is over -->
    <!-- used to convey any schedule graphics -->
  </xs:sequence>
</xs:complexType>

element ComplexTime/start
diagram
type DateTimePair
children date time offset
source
<xs:element name="start" type="DateTimePair" minOccurs="0"/>

element ComplexTime/end
diagram
type DateTimePair
children date time offset
source
<xs:element name="end" type="DateTimePair" minOccurs="0"/>

element ComplexTime/weekly
diagram
children weekly-item
source
<xs:element name="weekly" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="8">
      <xs:element name="weekly-item">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="day" type="Day-of-week"/>
            <xs:element name="times" type="TimePair"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ComplexTime/weekly/weekly-item
diagram
children day times
source
<xs:element name="weekly-item">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="day" type="Day-of-week"/>
      <xs:element name="times" type="TimePair"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ComplexTime/weekly/weekly-item/day
diagram
type Day-of-week
source
<xs:element name="day" type="Day-of-week"/>

element ComplexTime/weekly/weekly-item/times
diagram
type TimePair
children date start end
source
<xs:element name="times" type="TimePair"/>

element ComplexTime/occurrences
diagram
children occurrence
source
<xs:element name="occurrences" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="32">
      <xs:element name="occurrence">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="date" type="Date"/>
            <xs:element name="times" type="TimePair" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ComplexTime/occurrences/occurrence
diagram
children date times
source
<xs:element name="occurrence">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="date" type="Date"/>
      <xs:element name="times" type="TimePair" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ComplexTime/occurrences/occurrence/date
diagram
type Date
facets
length 8
source
<xs:element name="date" type="Date"/>

element ComplexTime/occurrences/occurrence/times
diagram
type TimePair
children date start end
source
<xs:element name="times" type="TimePair" minOccurs="0"/>

element ComplexTime/furtherData
diagram
type URL-Link
facets
minLength 1
maxLength 255
source
<xs:element name="furtherData" type="URL-Link" minOccurs="0"/>

complexType ContactInformation
diagram
namespace http://www.atis-address
children emails phones device-Identity
used by
element ContactSetting/contacts
source
<xs:complexType name="ContactInformation">
  <xs:sequence>
    <xs:element name="emails" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="10">
          <xs:element name="email" type="Email"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="phones" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="10">
          <xs:element name="phone" type="PhoneInformation"/>
          <!-- made up of country code,  phone#,  and ext and allow phones.fax.pager/etc to be entered -->
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="device-Identity" type="Device-Identity" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element ContactInformation/emails
diagram
children email
source
<xs:element name="emails" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="10">
      <xs:element name="email" type="Email"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ContactInformation/emails/email
diagram
type Email
facets
minLength 1
maxLength 40
source
<xs:element name="email" type="Email"/>

element ContactInformation/phones
diagram
children phone
source
<xs:element name="phones" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="10">
      <xs:element name="phone" type="PhoneInformation"/>
      <!-- made up of country code,  phone#,  and ext and allow phones.fax.pager/etc to be entered -->
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ContactInformation/phones/phone
diagram
type PhoneInformation
children use internationalAccessCode number extension
source
<xs:element name="phone" type="PhoneInformation"/>

element ContactInformation/device-Identity
diagram
type Device-Identity
facets
minLength 1
maxLength 255
source
<xs:element name="device-Identity" type="Device-Identity" minOccurs="0"/>

complexType ContactSetting
diagram
namespace http://www.atis-address
children agencyIdentifier agencyLocation agencyName userIdentity userSetting deviceIdentity person contacts address devices tail
used by
elements MessageHeader/sender TravelerSettingsRequest/userData
source
<xs:complexType name="ContactSetting">
  <xs:sequence>
    <xs:element name="agencyIdentifier" type="tmdd:Organization-contact-center-identifier" minOccurs="0"/>
    <xs:element name="agencyLocation" type="lrms:AreaLocation" minOccurs="0"/>
    <xs:element name="agencyName" type="tmdd:Link-ownership" minOccurs="0"/>
    <xs:element name="userIdentity" type="Traveler-Identity" minOccurs="0"/>
    <xs:element name="userSetting" type="Traveler-Setting" minOccurs="0"/>
    <xs:element name="deviceIdentity" type="Setting-Identity" minOccurs="0"/>
    <xs:element name="person">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="honorific" type="HonorificName" minOccurs="0"/>
          <xs:element name="firstName" type="FirstName" minOccurs="0"/>
          <xs:element name="middleName" type="MiddleName" minOccurs="0"/>
          <xs:element name="lastName" type="LastName" minOccurs="0"/>
          <xs:element name="nameSuffix" type="NameSuffix" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="contacts" type="ContactInformation" minOccurs="0"/>
    <xs:element name="address" type="lrms:AddressPointProfile" minOccurs="0"/>
    <xs:element name="devices" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="16">
          <xs:element name="device" type="TravelerDeviceSetting"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="tail" type="Tail" minOccurs="0"/>
    <!-- TMDD.Contact-organization-name -->
  </xs:sequence>
</xs:complexType>

element ContactSetting/agencyIdentifier
diagram
type tmdd:Organization-contact-center-identifier
facets
minLength 1
maxLength 32
source
<xs:element name="agencyIdentifier" type="tmdd:Organization-contact-center-identifier" minOccurs="0"/>

element ContactSetting/agencyLocation
diagram
type lrms:AreaLocation
children areaName areaId adminAreas polygon preCoded
attributes
Name  Type  Use  Default  Fixed  Annotation
locationID  String-index64
source
<xs:element name="agencyLocation" type="lrms:AreaLocation" minOccurs="0"/>

element ContactSetting/agencyName
diagram
type tmdd:Link-ownership
facets
minLength 1
maxLength 256
source
<xs:element name="agencyName" type="tmdd:Link-ownership" minOccurs="0"/>

element ContactSetting/userIdentity
diagram
type Traveler-Identity
facets
minLength 1
maxLength 12
source
<xs:element name="userIdentity" type="Traveler-Identity" minOccurs="0"/>

element ContactSetting/userSetting
diagram
type Traveler-Setting
facets
minLength 1
maxLength 40
source
<xs:element name="userSetting" type="Traveler-Setting" minOccurs="0"/>

element ContactSetting/deviceIdentity
diagram
type Setting-Identity
facets
minLength 1
maxLength 32
source
<xs:element name="deviceIdentity" type="Setting-Identity" minOccurs="0"/>

element ContactSetting/person
diagram
children honorific firstName middleName lastName nameSuffix
source
<xs:element name="person">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="honorific" type="HonorificName" minOccurs="0"/>
      <xs:element name="firstName" type="FirstName" minOccurs="0"/>
      <xs:element name="middleName" type="MiddleName" minOccurs="0"/>
      <xs:element name="lastName" type="LastName" minOccurs="0"/>
      <xs:element name="nameSuffix" type="NameSuffix" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ContactSetting/person/honorific
diagram
type HonorificName
facets
minLength 1
maxLength 32
source
<xs:element name="honorific" type="HonorificName" minOccurs="0"/>

element ContactSetting/person/firstName
diagram
type FirstName
facets
minLength 1
maxLength 25
source
<xs:element name="firstName" type="FirstName" minOccurs="0"/>

element ContactSetting/person/middleName
diagram
type MiddleName
facets
minLength 1
maxLength 32
source
<xs:element name="middleName" type="MiddleName" minOccurs="0"/>

element ContactSetting/person/lastName
diagram
type LastName
facets
minLength 1
maxLength 25
source
<xs:element name="lastName" type="LastName" minOccurs="0"/>

element ContactSetting/person/nameSuffix
diagram
type NameSuffix
facets
minLength 1
maxLength 16
source
<xs:element name="nameSuffix" type="NameSuffix" minOccurs="0"/>

element ContactSetting/contacts
diagram
type ContactInformation
children emails phones device-Identity
source
<xs:element name="contacts" type="ContactInformation" minOccurs="0"/>

element ContactSetting/address
diagram
type lrms:AddressPointProfile
children structureNumber streetInfo side height adminAreas
source
<xs:element name="address" type="lrms:AddressPointProfile" minOccurs="0"/>

element ContactSetting/devices
diagram
children device
source
<xs:element name="devices" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="16">
      <xs:element name="device" type="TravelerDeviceSetting"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ContactSetting/devices/device
diagram
type TravelerDeviceSetting
children traveler-Identity traveler-Setting setting-Identity device-Setting device-TransferSpeed
source
<xs:element name="device" type="TravelerDeviceSetting"/>

element ContactSetting/tail
diagram
type Tail
children entry
source
<xs:element name="tail" type="Tail" minOccurs="0"/>

complexType Cost
diagram
namespace http://www.atis-address
children usDollar usPenny canDollar canPenny mexPeso
used by
elements DirectoryDetailReply/cost ManeuverInstruction/cost ParkingInstructions/cost TimePriceInterval/cost TransitInstructions/cost Route/estimatedRouteCost ParkingInstructions/lotCost ManeuverInstruction/payToll PriceScheduleEntry/priceFirstPayment PriceScheduleEntry/priceMaximum
source
<xs:complexType name="Cost">
  <xs:choice>
    <xs:element name="usDollar">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:fractionDigits value="2"/>
          <xs:minInclusive value="0"/>
          <xs:maxInclusive value="1000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="usPenny">
      <xs:simpleType>
        <xs:restriction base="xs:integer">
          <xs:minInclusive value="0"/>
          <xs:maxInclusive value="100000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="canDollar">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:fractionDigits value="2"/>
          <xs:minInclusive value="0"/>
          <xs:maxInclusive value="1000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="canPenny">
      <xs:simpleType>
        <xs:restriction base="xs:integer">
          <xs:minInclusive value="0"/>
          <xs:maxInclusive value="100000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="mexPeso">
      <xs:simpleType>
        <xs:restriction base="xs:integer">
          <xs:minInclusive value="0"/>
          <xs:maxInclusive value="1000000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
  </xs:choice>
</xs:complexType>

element Cost/usDollar
diagram
type restriction of xs:decimal
facets
minInclusive 0
maxInclusive 1000000
fractionDigits 2
source
<xs:element name="usDollar">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:fractionDigits value="2"/>
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="1000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Cost/usPenny
diagram
type restriction of xs:integer
facets
minInclusive 0
maxInclusive 100000000
source
<xs:element name="usPenny">
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="100000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Cost/canDollar
diagram
type restriction of xs:decimal
facets
minInclusive 0
maxInclusive 1000000
fractionDigits 2
source
<xs:element name="canDollar">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:fractionDigits value="2"/>
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="1000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Cost/canPenny
diagram
type restriction of xs:integer
facets
minInclusive 0
maxInclusive 100000000
source
<xs:element name="canPenny">
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="100000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Cost/mexPeso
diagram
type restriction of xs:integer
facets
minInclusive 0
maxInclusive 1000000
source
<xs:element name="mexPeso">
  <xs:simpleType>
    <xs:restriction base="xs:integer">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="1000000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

complexType Database
diagram
namespace http://www.atis-address
children dbNumber databaseName databaseVersion
used by
element DatabaseIdentity/name
source
<xs:complexType name="Database">
  <xs:sequence>
    <xs:element name="dbNumber" type="DatabaseNumber"/>
    <xs:element name="databaseName" type="DatabaseName" minOccurs="0"/>
    <xs:element name="databaseVersion" type="DatabaseVersion" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element Database/dbNumber
diagram
type DatabaseNumber
facets
minLength 2
maxLength 16
attributes
Name  Type  Use  Default  Fixed  Annotation
EncodingType  xs:NMTOKEN  required
source
<xs:element name="dbNumber" type="DatabaseNumber"/>

element Database/databaseName
diagram
type DatabaseName
facets
minLength 1
maxLength 15
source
<xs:element name="databaseName" type="DatabaseName" minOccurs="0"/>

element Database/databaseVersion
diagram
type DatabaseVersion
facets
minLength 1
maxLength 7
source
<xs:element name="databaseVersion" type="DatabaseVersion" minOccurs="0"/>

complexType DatabaseIdentity
diagram
namespace http://www.atis-address
children identity number name version
used by
element IdentityOrLocation/dbIdentity
source
<xs:complexType name="DatabaseIdentity">
  <xs:sequence>
    <xs:element name="identity" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:minLength value="1"/>
          <xs:maxLength value="10"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="number" type="DatabaseNumber" minOccurs="0"/>
    <xs:element name="name" type="Database" minOccurs="0"/>
    <xs:element name="version" type="DatabaseVersion" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element DatabaseIdentity/identity
diagram
type restriction of xs:string
facets
minLength 1
maxLength 10
source
<xs:element name="identity" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="1"/>
      <xs:maxLength value="10"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element DatabaseIdentity/number
diagram
type Database
