Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

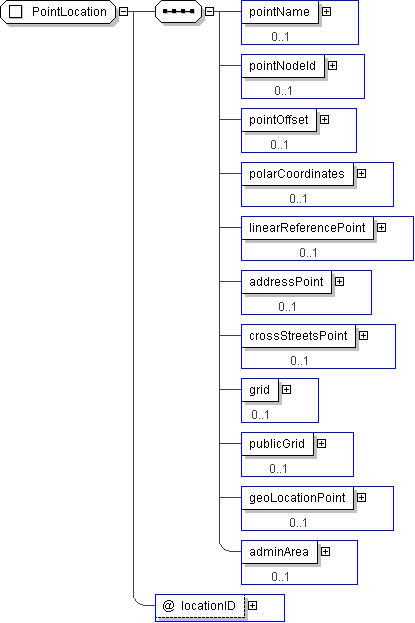

Name	PointLocation
Used by (from the same schema document)	Complex Type LinearReference , Complex Type LinearReference , Complex Type Polygon , Complex Type GroupLocation , Complex Type LinkGeneral , Complex Type LinkGeneral , Complex Type LocationReference , Complex Type PointOffset , Complex Type PolarCoordinates , Complex Type RouteLocation , Complex Type SpatialObject
Abstract	no

XML Instance Representation

<...
locationID=" String-index64 [0..1]">

<pointName> Text-name255 </pointName> [0..1]

<pointNodeId> IdType </pointNodeId> [0..1]

<pointOffset> PointOffset </pointOffset> [0..1]

<polarCoordinates> PolarCoordinates </polarCoordinates> [0..1]

<linearReferencePoint> LinearReference </linearReferencePoint> [0..1]

<addressPoint> AddressPoint </addressPoint> [0..1]

<crossStreetsPoint> CrossStreetsPoint </crossStreetsPoint> [0..1]

<grid> GridPoint </grid> [0..1]

<publicGrid> PublicGrid </publicGrid> [0..1]

<geoLocationPoint> GeoLocation </geoLocationPoint> [0..1]

<adminArea> AdminAreaGroup </adminArea> [0..1]

</...>

Schema Component Representation

<xs:complexType name="PointLocation">

<xs:sequence>

<xs:element name="pointName" type=" Text-name255 " minOccurs="0"/>

<xs:element name="pointNodeId" type=" IdType " minOccurs="0"/>

<xs:element name="pointOffset" type=" PointOffset " minOccurs="0"/>

<xs:element name="polarCoordinates" type=" PolarCoordinates " minOccurs="0"/>

<xs:element name="linearReferencePoint" type=" LinearReference " minOccurs="0"/>

<xs:element name="addressPoint" type=" AddressPoint " minOccurs="0"/>

<xs:element name="crossStreetsPoint" type=" CrossStreetsPoint " minOccurs="0"/>

<xs:element name="grid" type=" GridPoint " minOccurs="0"/>

<xs:element name="publicGrid" type=" PublicGrid " minOccurs="0"/>

<xs:element name="geoLocationPoint" type=" GeoLocation " minOccurs="0"/>

<xs:element name="adminArea" type=" AdminAreaGroup " minOccurs="0"/>

</xs:sequence>

<xs:attribute name="locationID" type=" String-index64 "/>

</xs:complexType>
