Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

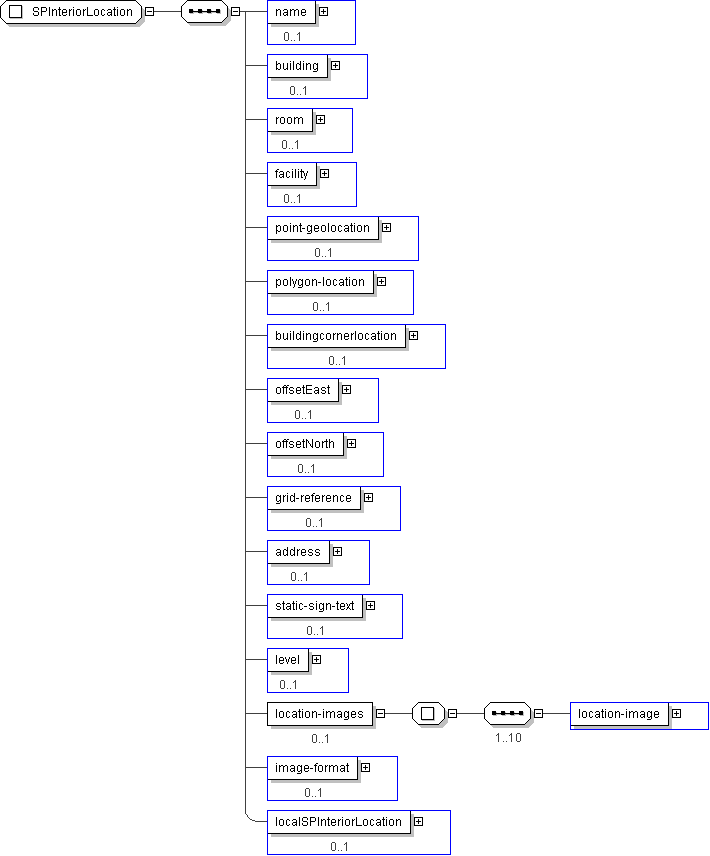

Name	SPInteriorLocation
Used by (from the same schema document)	Complex Type PiDirections , Complex Type PiDirections , Complex Type PiDirectionsSub , Complex Type PiDirectionsSub , Complex Type IMIncident , Complex Type PIAmenity , Complex Type SPIntDirection , Complex Type SPIntDirection , Complex Type SPInteriorFeature
Abstract	no

XML Instance Representation

<...>

<name> SP-FeatureName </name> [0..1]

<building> SP-BuildingIdentifier </building> [0..1]

<room> SP-RoomIdentifier </room> [0..1]

<facility> CPTTransitFacilityIden </facility> [0..1]

<point-geolocation> lrms:GeoLocation </point-geolocation> [0..1]

<polygon-location> SPPolygon </polygon-location> [0..1]

<buildingcornerlocation> lrms:GeoLocation </buildingcornerlocation> [0..1]

<offsetEast> lrms:Distance </offsetEast> [0..1]

<offsetNorth> lrms:Distance </offsetNorth> [0..1]

<grid-reference> SP-IndoorGridIdentifier </grid-reference> [0..1]

<address> lrms:AddressPoint </address> [0..1]

<static-sign-text> PI-StaticSignMessage </static-sign-text> [0..1]

<level> lrms:VerticalLevel </level> [0..1]

<location-images> [0..1]
Start Sequence [1..10]

<location-image> PI-BinaryImageData </location-image> [1]

End Sequence
</location-images>

<image-format> PI-GraphicFormat </image-format> [0..1]

<localSPInteriorLocation> local:SPInteriorLocation </localSPInteriorLocation> [0..1]

</...>

Schema Component Representation

<xs:complexType name="SPInteriorLocation">

<xs:sequence>

<xs:element name="name" type=" SP-FeatureName " minOccurs="0"/>

<xs:element name="building" type=" SP-BuildingIdentifier " minOccurs="0"/>

<xs:element name="room" type=" SP-RoomIdentifier " minOccurs="0"/>

<xs:element name="facility" type=" CPTTransitFacilityIden " minOccurs="0"/>

<xs:element name="point-geolocation" type=" lrms:GeoLocation " minOccurs="0"/>

<xs:element name="polygon-location" type=" SPPolygon " minOccurs="0"/>

<xs:element name="buildingcornerlocation" type=" lrms:GeoLocation " minOccurs="0"/>

<xs:element name="offsetEast" type=" lrms:Distance " minOccurs="0"/>

<xs:element name="offsetNorth" type=" lrms:Distance " minOccurs="0"/>

<xs:element name="grid-reference" type=" SP-IndoorGridIdentifier " minOccurs="0"/>

<xs:element name="address" type=" lrms:AddressPoint " minOccurs="0"/>

<xs:element name="static-sign-text" type=" PI-StaticSignMessage " minOccurs="0"/>

<xs:element name="level" type=" lrms:VerticalLevel " minOccurs="0"/>

<xs:element name="location-images" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="location-image" type=" PI-BinaryImageData "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="image-format" type=" PI-GraphicFormat " minOccurs="0"/>

<xs:element name="localSPInteriorLocation" type=" local:SPInteriorLocation " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
