Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SCHTimeStoppoint
Used by (from the same schema document)	Complex Type SpRouteGeoTrace , Complex Type SpRouteGeoTraceSub , Complex Type CCDetourRecord , Complex Type PIServiceBulletin , Complex Type SCHPatternSegment
Abstract	no

XML Instance Representation

<...>
Start Choice [1]

<timepoint-id> SCHTimepointIden </timepoint-id> [0..1]

<stoppoint> CPTStoppointIden </stoppoint> [0..1]

End Choice

<offset> lrms:Distance </offset> [0..1]

</...>

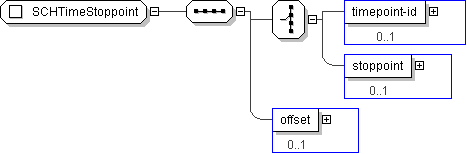

Diagram

Schema Component Representation

<xs:complexType name="SCHTimeStoppoint">

<xs:sequence>

<xs:choice>

<xs:element name="timepoint-id" type=" SCHTimepointIden " minOccurs="0"/>

<xs:element name="stoppoint" type=" CPTStoppointIden " minOccurs="0"/>

</xs:choice>

<xs:element name="offset" type=" lrms:Distance " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
