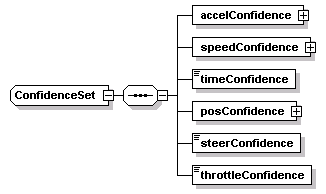

complexType ConfidenceSet
diagram Docs_p109.png
namespace http://www.DSRC-Draft-03-00-24
children accelConfidence speedConfidence timeConfidence posConfidence steerConfidence throttleConfidence
used by
elements ValueList/confidenceSet VehicleStatusDeviceType/confidenceSet
source <xs:complexType name="ConfidenceSet">
  <xs:sequence>
    <xs:element name="accelConfidence" type="AccelSteerYawRateConfidence"/>
    <xs:element name="speedConfidence" type="SpeedandHeadingConfidence"/>
    <xs:element name="timeConfidence" type="TimeConfidence"/>
    <xs:element name="posConfidence" type="PositionConfidenceSet"/>
    <xs:element name="steerConfidence" type="SteeringWheelAngleConfidence"/>
    <xs:element name="throttleConfidence" type="ThrottleConfidence"/>
  </xs:sequence>
</xs:complexType>

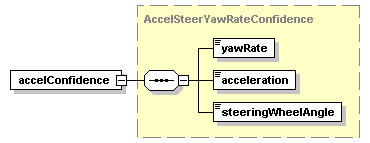

element ConfidenceSet/accelConfidence
diagram Docs_p110.png
type AccelSteerYawRateConfidence
properties
isRef 0
content complex
children yawRate acceleration steeringWheelAngle
source <xs:element name="accelConfidence" type="AccelSteerYawRateConfidence"/>

element ConfidenceSet/speedConfidence
diagram Docs_p111.png
type SpeedandHeadingConfidence
properties
isRef 0
content complex
children heading speed throttle
source <xs:element name="speedConfidence" type="SpeedandHeadingConfidence"/>

element ConfidenceSet/timeConfidence
diagram Docs_p112.png
type TimeConfidence
properties
isRef 0
content simple
source <xs:element name="timeConfidence" type="TimeConfidence"/>

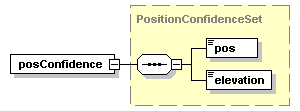

element ConfidenceSet/posConfidence
diagram Docs_p113.png
type PositionConfidenceSet
properties
isRef 0
content complex
children pos elevation
source <xs:element name="posConfidence" type="PositionConfidenceSet"/>

element ConfidenceSet/steerConfidence
diagram Docs_p114.png
type SteeringWheelAngleConfidence
properties
isRef 0
content simple
source <xs:element name="steerConfidence" type="SteeringWheelAngleConfidence"/>

element ConfidenceSet/throttleConfidence
diagram Docs_p115.png
type ThrottleConfidence
properties
isRef 0
content simple
source <xs:element name="throttleConfidence" type="ThrottleConfidence"/>
