complexType VehicleIdent

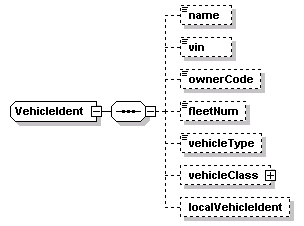

diagram Docs_p517.png
namespace http://www.DSRC-Draft-03-00-24
children name vin ownerCode fleetNum vehicleType vehicleClass localVehicleIdent
used by
element ProbeVehicleData/probeID
source <xs:complexType name="VehicleIdent">
  <xs:sequence>
    <xs:element name="name" type="DescriptiveName" minOccurs="0"/>
    <xs:element name="vin" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:length value="17"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="ownerCode" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:minLength value="1"/>
          <xs:maxLength value="32"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="fleetNum" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:minLength value="1"/>
          <xs:maxLength value="32"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="vehicleType" type="VehicleType" minOccurs="0"/>
    <xs:element name="vehicleClass" minOccurs="0">
      <xs:complexType>
        <xs:choice>
          <xs:element name="vGroup" type="itis:VehicleGroupAffected"/>
          <xs:element name="rGroup" type="itis:ResponderGroupAffected"/>
          <xs:element name="rEquip" type="itis:IncidentResponseEquipment"/>
        </xs:choice>
      </xs:complexType>
    </xs:element>
    <xs:element name="localVehicleIdent" type="local:VehicleIdent" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element VehicleIdent/name
diagram Docs_p518.png
type DescriptiveName
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 63
source <xs:element name="name" type="DescriptiveName" minOccurs="0"/>

element VehicleIdent/vin
diagram Docs_p519.png
type restriction of xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
length 17
source <xs:element name="vin" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:length value="17"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element VehicleIdent/ownerCode
diagram Docs_p520.png
type restriction of xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
source <xs:element name="ownerCode" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="1"/>
      <xs:maxLength value="32"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element VehicleIdent/fleetNum
diagram Docs_p521.png
type restriction of xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
source <xs:element name="fleetNum" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="1"/>
      <xs:maxLength value="32"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element VehicleIdent/vehicleType
diagram Docs_p522.png
type VehicleType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="vehicleType" type="VehicleType" minOccurs="0"/>

element VehicleIdent/vehicleClass
diagram Docs_p523.png
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children vGroup rGroup rEquip
source <xs:element name="vehicleClass" minOccurs="0">
  <xs:complexType>
    <xs:choice>
      <xs:element name="vGroup" type="itis:VehicleGroupAffected"/>
      <xs:element name="rGroup" type="itis:ResponderGroupAffected"/>
      <xs:element name="rEquip" type="itis:IncidentResponseEquipment"/>
    </xs:choice>
  </xs:complexType>
</xs:element>

element VehicleIdent/vehicleClass/vGroup
diagram Docs_p524.png
type itis:VehicleGroupAffected
properties
isRef 0
source <xs:element name="vGroup" type="itis:VehicleGroupAffected"/>

element VehicleIdent/vehicleClass/rGroup
diagram Docs_p525.png
type itis:ResponderGroupAffected
properties
isRef 0
source <xs:element name="rGroup" type="itis:ResponderGroupAffected"/>

element VehicleIdent/vehicleClass/rEquip
diagram Docs_p526.png
type itis:IncidentResponseEquipment
properties
isRef 0
source <xs:element name="rEquip" type="itis:IncidentResponseEquipment"/>

element VehicleIdent/localVehicleIdent
diagram Docs_p527.png
type local:VehicleIdent
properties
isRef 0
minOcc 0
maxOcc 1
source <xs:element name="localVehicleIdent" type="local:VehicleIdent" minOccurs="0"/>
