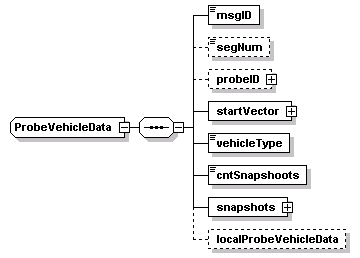

complexType ProbeVehicleData
diagram Docs_p288.png
namespace http://www.DSRC-Draft-03-00-24
children msgID segNum probeID startVector vehicleType cntSnapshoots snapshots localProbeVehicleData
used by
element probeVehicleData
source <xs:complexType name="ProbeVehicleData">
  <xs:sequence>
    <xs:element name="msgID" type="DSRCmsgID"/>
    <xs:element name="segNum" type="ProbeSegmentNumber" minOccurs="0"/>
    <xs:element name="probeID" type="VehicleIdent" minOccurs="0"/>
    <xs:element name="startVector" type="FullPositionVector"/>
    <xs:element name="vehicleType" type="VehicleType"/>
    <xs:element name="cntSnapshoots">
      <xs:simpleType>
        <xs:restriction base="xs:unsignedByte">
          <xs:minInclusive value="1"/>
          <xs:maxInclusive value="32"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="snapshots">
      <xs:complexType>
        <xs:sequence maxOccurs="32">
          <xs:element name="snapshot" type="Snapshot"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localProbeVehicleData" type="local:ProbeVehicleData" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element ProbeVehicleData/msgID
diagram Docs_p289.png
type DSRCmsgID
properties
isRef 0
content simple
source <xs:element name="msgID" type="DSRCmsgID"/>

element ProbeVehicleData/segNum
diagram Docs_p290.png
type ProbeSegmentNumber
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="segNum" type="ProbeSegmentNumber" minOccurs="0"/>

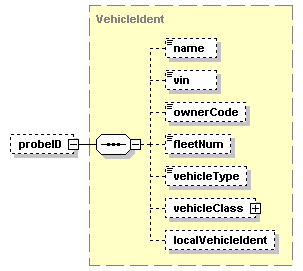

element ProbeVehicleData/probeID
diagram Docs_p291.png
type VehicleIdent
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children name vin ownerCode fleetNum vehicleType vehicleClass localVehicleIdent
source <xs:element name="probeID" type="VehicleIdent" minOccurs="0"/>

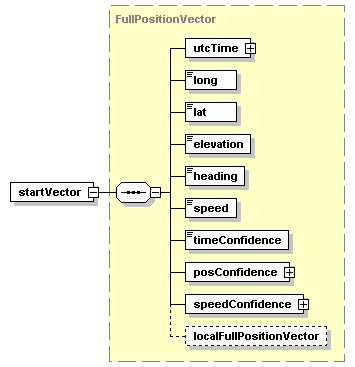

element ProbeVehicleData/startVector
diagram Docs_p292.png
type FullPositionVector
properties
isRef 0
content complex
children utcTime long lat elevation heading speed timeConfidence posConfidence speedConfidence localFullPositionVector
source <xs:element name="startVector" type="FullPositionVector"/>

element ProbeVehicleData/vehicleType
diagram Docs_p293.png
type VehicleType
properties
isRef 0
content simple
source <xs:element name="vehicleType" type="VehicleType"/>

element ProbeVehicleData/cntSnapshoots
diagram Docs_p294.png
type restriction of xs:unsignedByte
properties
isRef 0
content simple
facets
minInclusive 1
maxInclusive 32
source <xs:element name="cntSnapshoots">
  <xs:simpleType>
    <xs:restriction base="xs:unsignedByte">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="32"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ProbeVehicleData/snapshots
diagram Docs_p295.png
properties
isRef 0
content complex
children snapshot
source <xs:element name="snapshots">
  <xs:complexType>
    <xs:sequence maxOccurs="32">
      <xs:element name="snapshot" type="Snapshot"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ProbeVehicleData/snapshots/snapshot
diagram Docs_p296.png
type Snapshot
properties
isRef 0
content complex
children thePosition cntVSDTs deviceTypes localSnapshot
source <xs:element name="snapshot" type="Snapshot"/>

element ProbeVehicleData/localProbeVehicleData
diagram Docs_p297.png
type local:ProbeVehicleData
properties
isRef 0
minOcc 0
maxOcc 1
source <xs:element name="localProbeVehicleData" type="local:ProbeVehicleData" minOccurs="0"/>
