complexType DeviceControlResponse

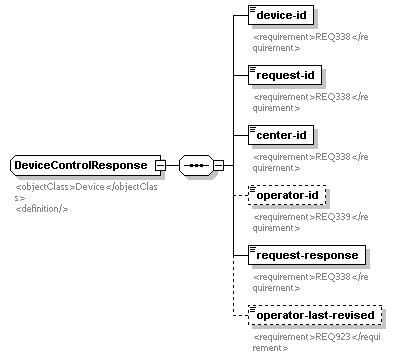

diagram
namespace http://www.ite.org/tmdd
children device-id request-id center-id operator-id request-response operator-last-revised
used by
elements IntersectionSignalControlResponse/device-control-response-header deviceControlResponse
annotation
documentation
<objectClass>Device</objectClass>
<definition/>
source <xs:complexType name="DeviceControlResponse">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Device</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="device-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ338</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="request-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ338</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="center-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ338</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="operator-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ339</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="request-response" type="Device-acknowledge-control">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ338</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="operator-last-revised" type="Organization-resource-name" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ923</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <!-- xs:element name="response-plan-id" type="Organization-resource-identifier" minOccurs="0" -->
  </xs:sequence>
</xs:complexType>

element DeviceControlResponse/device-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ338</requirement>
source <xs:element name="device-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ338</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceControlResponse/request-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ338</requirement>
source <xs:element name="request-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ338</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceControlResponse/center-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ338</requirement>
source <xs:element name="center-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ338</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceControlResponse/operator-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ339</requirement>
source <xs:element name="operator-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ339</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceControlResponse/request-response
diagram
type Device-acknowledge-control
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ338</requirement>
source <xs:element name="request-response" type="Device-acknowledge-control">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ338</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceControlResponse/operator-last-revised
diagram
type Organization-resource-name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 128
annotation
documentation
<requirement>REQ923</requirement>
source <xs:element name="operator-last-revised" type="Organization-resource-name" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ923</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
