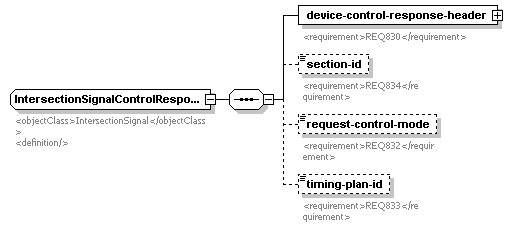

complexType IntersectionSignalControlResponse
diagram
namespace http://www.ite.org/tmdd
children device-control-response-header section-id request-control-mode timing-plan-id
used by
element intersectionSignalControlResponse
annotation
documentation
<objectClass>IntersectionSignal</objectClass>
<definition/>
source <xs:complexType name="IntersectionSignalControlResponse">
  <xs:annotation>
    <xs:documentation>
      <objectClass>IntersectionSignal</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="device-control-response-header" type="DeviceControlResponse">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ830</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="section-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ834</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="request-control-mode" type="Intersection-signal-control-mode" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ832</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="timing-plan-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ833</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

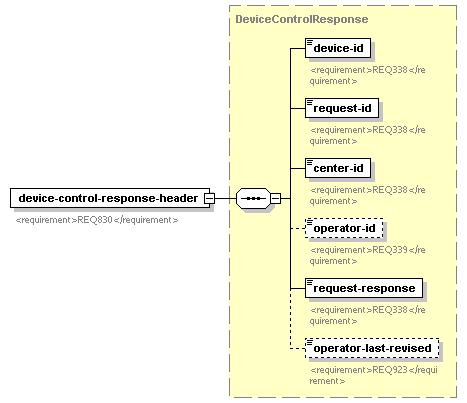

element IntersectionSignalControlResponse/device-control-response-header
diagram
type DeviceControlResponse
properties
isRef 0
content complex
children device-id request-id center-id operator-id request-response operator-last-revised
annotation
documentation
<requirement>REQ830</requirement>
source <xs:element name="device-control-response-header" type="DeviceControlResponse">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ830</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element IntersectionSignalControlResponse/section-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ834</requirement>
source <xs:element name="section-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ834</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element IntersectionSignalControlResponse/request-control-mode
diagram
type Intersection-signal-control-mode
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ832</requirement>
source <xs:element name="request-control-mode" type="Intersection-signal-control-mode" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ832</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element IntersectionSignalControlResponse/timing-plan-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ833</requirement>
source <xs:element name="timing-plan-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ833</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
