complexType DeviceList

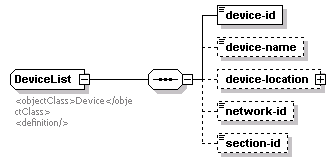

diagram
namespace	http://www.ite.org/tmdd
children	device-id device-name device-location network-id section-id
used by	element  DeviceTypeInventoryResponse/device-list/device
annotation	documentation <objectClass>Device</objectClass> <definition/>
source	<xs:complexType name="DeviceList">   <xs:annotation>     <xs:documentation>       <objectClass>Device</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="device-id" type="Organization-resource-identifier"/>     <xs:element name="device-name" type="Organization-resource-name" minOccurs="0"/>     <xs:element name="device-location" type="DeviceLocation" minOccurs="0"/>     <xs:element name="network-id" type="Roadway-network-identifier" minOccurs="0"/>     <xs:element name="section-id" type="Organization-resource-identifier" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element DeviceList/device-id

diagram
type	Organization-resource-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="device-id" type="Organization-resource-identifier"/>

element DeviceList/device-name

diagram
type	Organization-resource-name
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  128
source	<xs:element name="device-name" type="Organization-resource-name" minOccurs="0"/>

element DeviceList/device-location

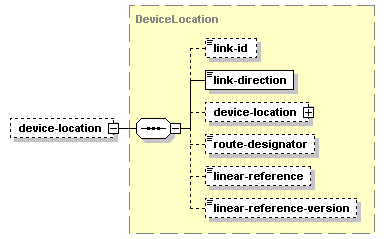

diagram
type	DeviceLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	link-id link-direction device-location route-designator linear-reference linear-reference-version
source	<xs:element name="device-location" type="DeviceLocation" minOccurs="0"/>

element DeviceList/network-id

diagram
type	Roadway-network-identifier
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="network-id" type="Roadway-network-identifier" minOccurs="0"/>

element DeviceList/section-id

diagram
type	Organization-resource-identifier
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="section-id" type="Organization-resource-identifier" minOccurs="0"/>
