complexType DeviceLocation

diagram
namespace	http://www.ite.org/tmdd
children	link-id link-direction device-location route-designator linear-reference linear-reference-version
used by	element  DeviceList/device-location
annotation	documentation <objectClass>Device</objectClass> <definition/>
source	<xs:complexType name="DeviceLocation">   <xs:annotation>     <xs:documentation>       <objectClass>Device</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="link-id" type="Roadway-network-identifier" minOccurs="0"/>     <xs:element name="link-direction" type="Link-direction"/>     <xs:element name="device-location" type="lrms:GeoLocation" minOccurs="0"/>     <xs:element name="route-designator" type="Link-route-designator" minOccurs="0"/>     <xs:element name="linear-reference" type="Link-location-linear-reference" minOccurs="0"/>     <xs:element name="linear-reference-version" type="Link-location-linear-reference-version" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element DeviceLocation/link-id

diagram
type	Roadway-network-identifier
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="link-id" type="Roadway-network-identifier" minOccurs="0"/>

element DeviceLocation/link-direction

diagram
type	Link-direction
properties	isRef  0 content  simple
source	<xs:element name="link-direction" type="Link-direction"/>

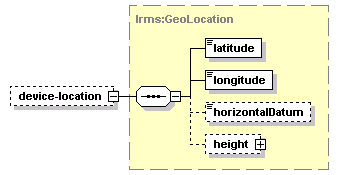

element DeviceLocation/device-location

diagram
type	lrms:GeoLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="device-location" type="lrms:GeoLocation" minOccurs="0"/>

element DeviceLocation/route-designator

diagram
type	Link-route-designator
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="route-designator" type="Link-route-designator" minOccurs="0"/>

element DeviceLocation/linear-reference

diagram
type	Link-location-linear-reference
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  0 maxInclusive  2000000
source	<xs:element name="linear-reference" type="Link-location-linear-reference" minOccurs="0"/>

element DeviceLocation/linear-reference-version

diagram
type	Link-location-linear-reference-version
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="linear-reference-version" type="Link-location-linear-reference-version" minOccurs="0"/>
