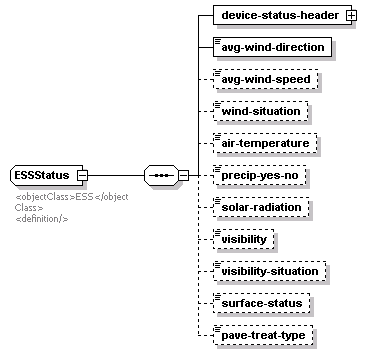

complexType ESSStatus

diagram
namespace	http://www.ite.org/tmdd
children	device-status-header avg-wind-direction avg-wind-speed wind-situation air-temperature precip-yes-no solar-radiation visibility visibility-situation surface-status pave-treat-type
used by	element  eSSStatus
annotation	documentation <objectClass>ESS</objectClass> <definition/>
source	<xs:complexType name="ESSStatus">   <xs:annotation>     <xs:documentation>       <objectClass>ESS</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="device-status-header" type="DeviceStatusHeader"/>     <xs:element name="avg-wind-direction" type="ntcip:EssAvgWindDirection"/>     <xs:element name="avg-wind-speed" type="ntcip:EssAvgWindSpeed" minOccurs="0"/>     <xs:element name="wind-situation" type="ntcip:EssWindSituation" minOccurs="0"/>     <xs:element name="air-temperature" type="ntcip:EssAirTemperature" minOccurs="0"/>     <xs:element name="precip-yes-no" type="ntcip:EssPrecipYesNo" minOccurs="0"/>     <xs:element name="solar-radiation" type="ntcip:EssSolarRadiation" minOccurs="0"/>     <xs:element name="visibility" type="ntcip:EssVisibility" minOccurs="0"/>     <xs:element name="visibility-situation" type="ntcip:EssVisibilitySituation" minOccurs="0"/>     <xs:element name="surface-status" type="ntcip:EssSurfaceStatus" minOccurs="0"/>     <xs:element name="pave-treat-type" type="ntcip:EssPaveTreatProductType" minOccurs="0"/>   </xs:sequence> </xs:complexType>

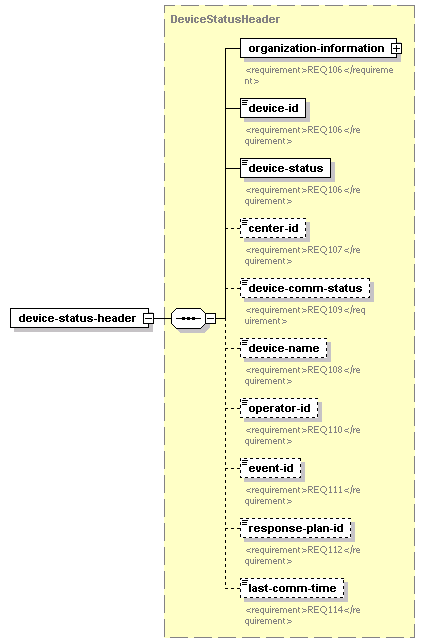

element ESSStatus/device-status-header

diagram
type	DeviceStatusHeader
properties	isRef  0 content  complex
children	organization-information device-id device-status center-id device-comm-status device-name operator-id event-id response-plan-id last-comm-time
source	<xs:element name="device-status-header" type="DeviceStatusHeader"/>

element ESSStatus/avg-wind-direction

diagram
type	ntcip:EssAvgWindDirection
properties	isRef  0 content  simple
facets	maxInclusive  361
source	<xs:element name="avg-wind-direction" type="ntcip:EssAvgWindDirection"/>

element ESSStatus/avg-wind-speed

diagram
type	ntcip:EssAvgWindSpeed
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="avg-wind-speed" type="ntcip:EssAvgWindSpeed" minOccurs="0"/>

element ESSStatus/wind-situation

diagram
type	ntcip:EssWindSituation
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="wind-situation" type="ntcip:EssWindSituation" minOccurs="0"/>

element ESSStatus/air-temperature

diagram
type	ntcip:EssAirTemperature
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -1000 maxInclusive  1001
source	<xs:element name="air-temperature" type="ntcip:EssAirTemperature" minOccurs="0"/>

element ESSStatus/precip-yes-no

diagram
type	ntcip:EssPrecipYesNo
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="precip-yes-no" type="ntcip:EssPrecipYesNo" minOccurs="0"/>

element ESSStatus/solar-radiation

diagram
type	ntcip:EssSolarRadiation
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="solar-radiation" type="ntcip:EssSolarRadiation" minOccurs="0"/>

element ESSStatus/visibility

diagram
type	ntcip:EssVisibility
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  1000001
source	<xs:element name="visibility" type="ntcip:EssVisibility" minOccurs="0"/>

element ESSStatus/visibility-situation

diagram
type	ntcip:EssVisibilitySituation
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="visibility-situation" type="ntcip:EssVisibilitySituation" minOccurs="0"/>

element ESSStatus/surface-status

diagram
type	ntcip:EssSurfaceStatus
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="surface-status" type="ntcip:EssSurfaceStatus" minOccurs="0"/>

element ESSStatus/pave-treat-type

diagram
type	ntcip:EssPaveTreatProductType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="pave-treat-type" type="ntcip:EssPaveTreatProductType" minOccurs="0"/>
