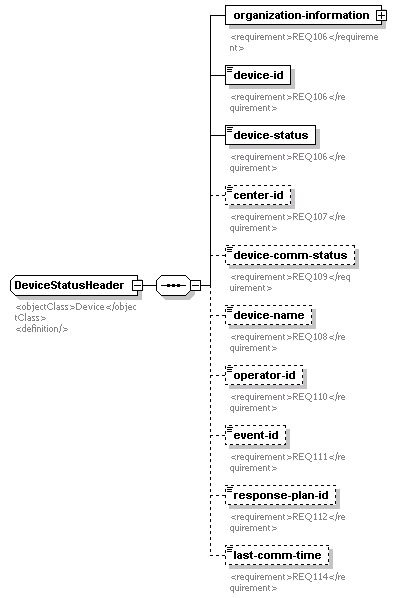

complexType DeviceStatusHeader
diagram
namespace http://www.ite.org/tmdd
children organization-information device-id device-status center-id device-comm-status device-name operator-id event-id response-plan-id last-comm-time
used by
elements CCTVDeviceStatus/device-status-header DetectorStatus/device-status-header DMSDeviceStatus/device-status-header ESSStatus/device-status-header GateStatus/device-status-header HARStatus/device-status-header LCSStatus/device-status-header RampMeterStatus/device-status-header IntersectionSignalStatus/device-status-header VSDeviceStatus/device-status-header
annotation
documentation
<objectClass>Device</objectClass>
<definition/>
source <xs:complexType name="DeviceStatusHeader">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Device</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="organization-information" type="OrganizationInformation">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ106</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ106</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-status" type="Device-operational-status">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ106</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="center-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ107</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-comm-status" type="Device-communications-status" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ109</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-name" type="Organization-resource-name" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ108</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="operator-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ110</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="event-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ111</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="response-plan-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ112</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="last-comm-time" type="DateTimeZone" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ114</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

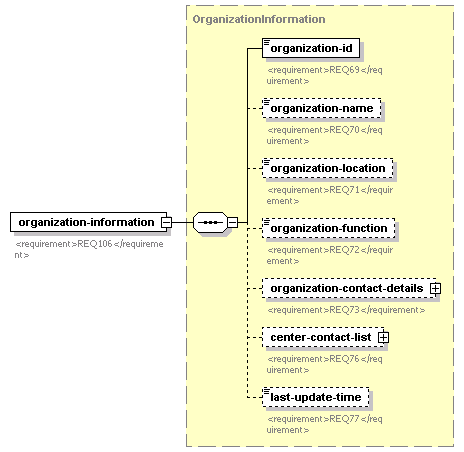

element DeviceStatusHeader/organization-information
diagram
type OrganizationInformation
properties
isRef 0
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
annotation
documentation
<requirement>REQ106</requirement>
source <xs:element name="organization-information" type="OrganizationInformation">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ106</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceStatusHeader/device-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ106</requirement>
source <xs:element name="device-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ106</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceStatusHeader/device-status
diagram
type Device-operational-status
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ106</requirement>
source <xs:element name="device-status" type="Device-operational-status">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ106</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceStatusHeader/center-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ107</requirement>
source <xs:element name="center-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ107</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceStatusHeader/device-comm-status
diagram
type Device-communications-status
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ109</requirement>
source <xs:element name="device-comm-status" type="Device-communications-status" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ109</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceStatusHeader/device-name
diagram
type Organization-resource-name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 128
annotation
documentation
<requirement>REQ108</requirement>
source <xs:element name="device-name" type="Organization-resource-name" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ108</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceStatusHeader/operator-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ110</requirement>
source <xs:element name="operator-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ110</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceStatusHeader/event-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ111</requirement>
source <xs:element name="event-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ111</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceStatusHeader/response-plan-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ112</requirement>
source <xs:element name="response-plan-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ112</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceStatusHeader/last-comm-time
diagram
type DateTimeZone
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ114</requirement>
source <xs:element name="last-comm-time" type="DateTimeZone" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ114</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
