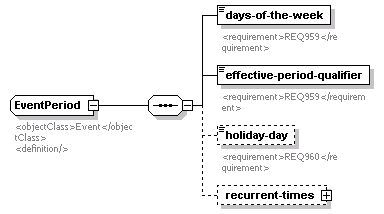

complexType EventPeriod
diagram
namespace http://www.ite.org/tmdd
children days-of-the-week effective-period-qualifier holiday-day recurrent-times
used by
elements ValidPeriod/effective-periods/effective-period RecurrentTime/recurrent-period
annotation
documentation
<objectClass>Event</objectClass>
<definition/>
source <xs:complexType name="EventPeriod">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Event</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="days-of-the-week" type="Event-timeline-schedule-days-of-the-week">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ959</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="effective-period-qualifier" type="Event-effective-period-qualifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ959</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="holiday-day" type="Event-holiday-day" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ960</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="recurrent-times" minOccurs="0">
      <xs:complexType>
        <xs:annotation>
          <xs:documentation>
            <requirement>REQ961</requirement>
          </xs:documentation>
        </xs:annotation>
        <xs:sequence maxOccurs="64">
          <xs:element name="recurrent-time" type="RecurrentTime"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element EventPeriod/days-of-the-week
diagram
type Event-timeline-schedule-days-of-the-week
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ959</requirement>
source <xs:element name="days-of-the-week" type="Event-timeline-schedule-days-of-the-week">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ959</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element EventPeriod/effective-period-qualifier
diagram
type Event-effective-period-qualifier
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ959</requirement>
source <xs:element name="effective-period-qualifier" type="Event-effective-period-qualifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ959</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element EventPeriod/holiday-day
diagram
type Event-holiday-day
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive 1
maxInclusive 7
annotation
documentation
<requirement>REQ960</requirement>
source <xs:element name="holiday-day" type="Event-holiday-day" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ960</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element EventPeriod/recurrent-times
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children recurrent-time
source <xs:element name="recurrent-times" minOccurs="0">
  <xs:complexType>
    <xs:annotation>
      <xs:documentation>
        <requirement>REQ961</requirement>
      </xs:documentation>
    </xs:annotation>
    <xs:sequence maxOccurs="64">
      <xs:element name="recurrent-time" type="RecurrentTime"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

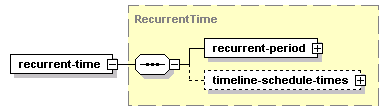

element EventPeriod/recurrent-times/recurrent-time
diagram
type RecurrentTime
properties
isRef 0
content complex
children recurrent-period timeline-schedule-times
source <xs:element name="recurrent-time" type="RecurrentTime"/>
